Square D QMJ364H - Fusible Safety Switch 200A 600V (200kA AIC)

Price
Regular price $6,900.31
Regular price $9,169.23 Sale price $6,900.31
Save $2,268.92
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon

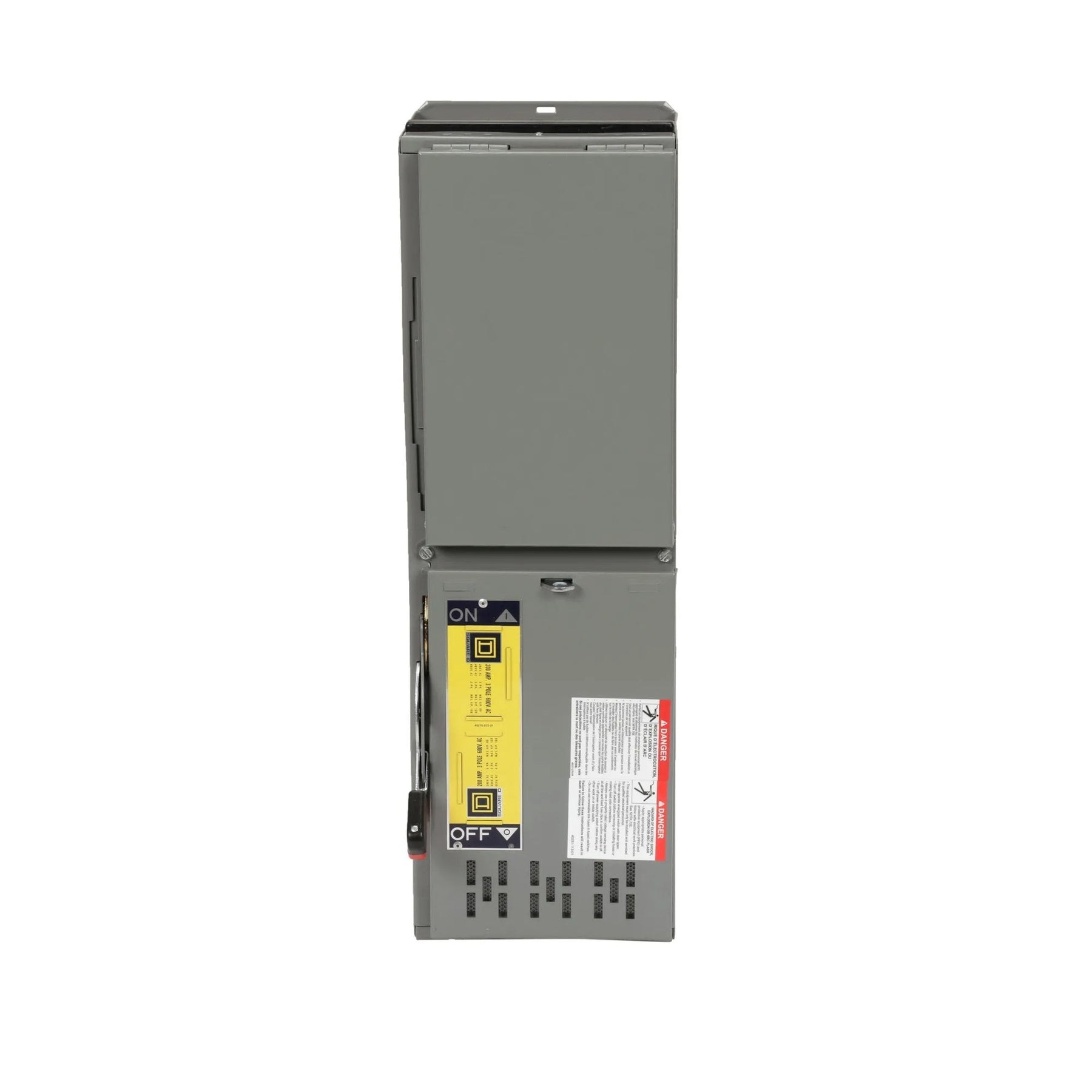

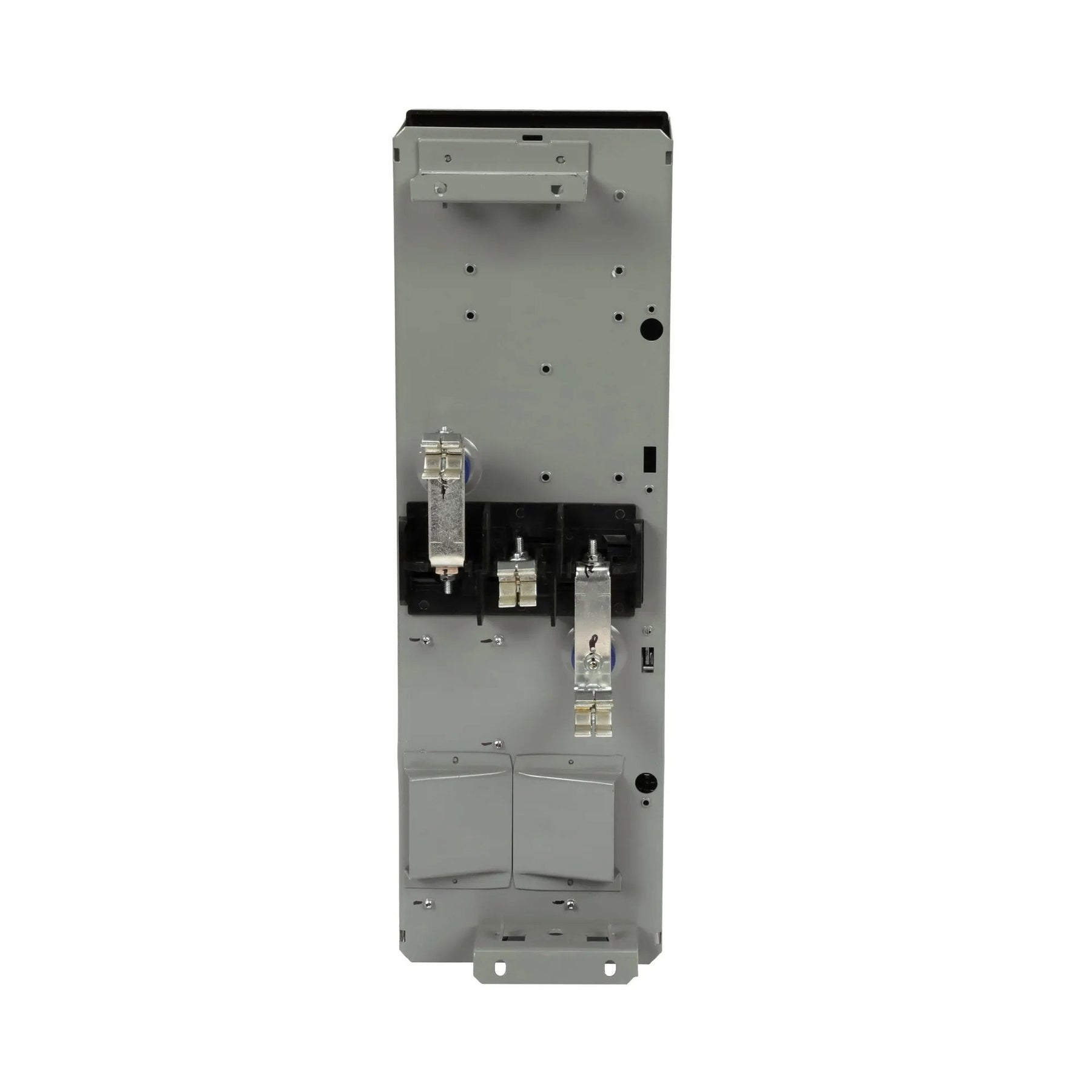

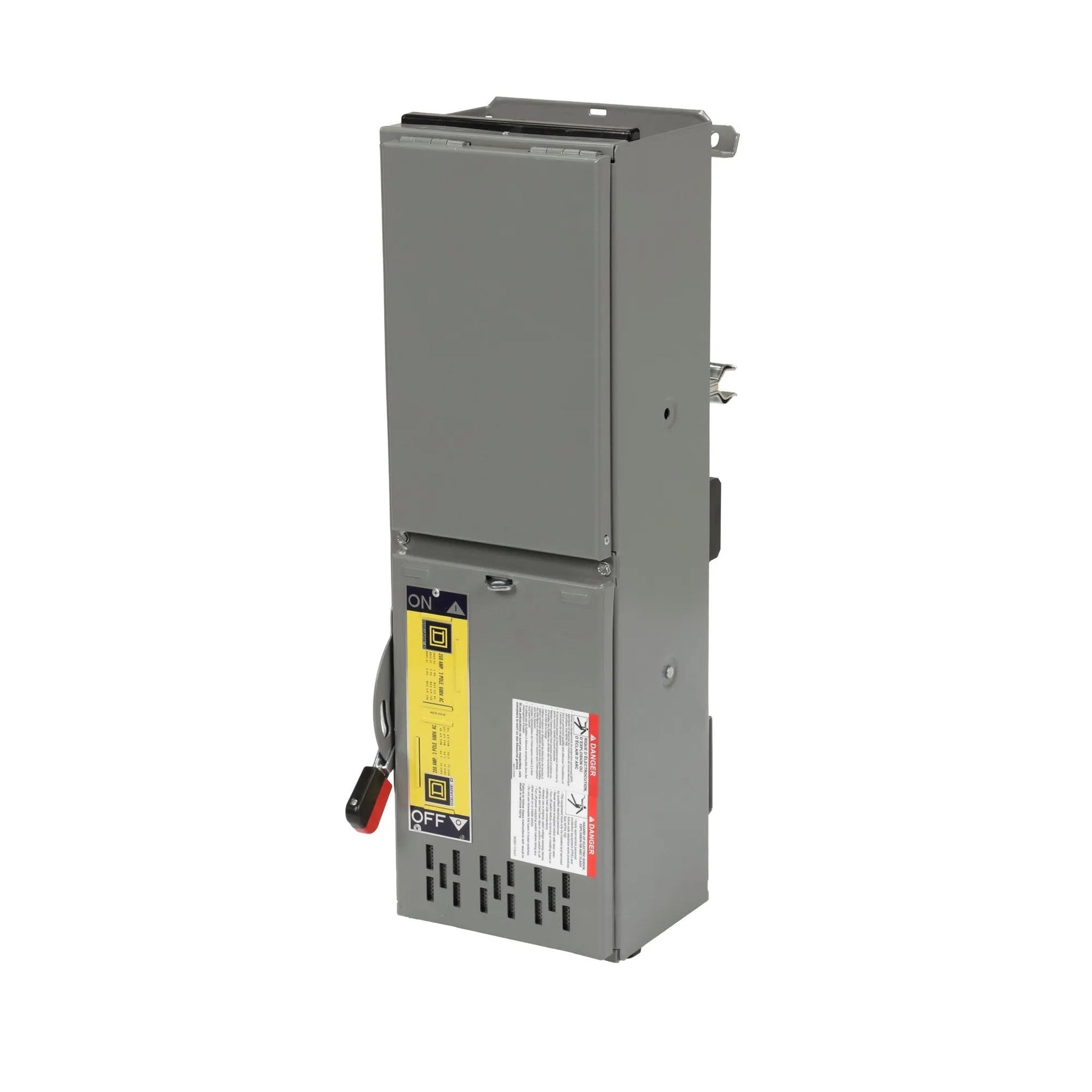

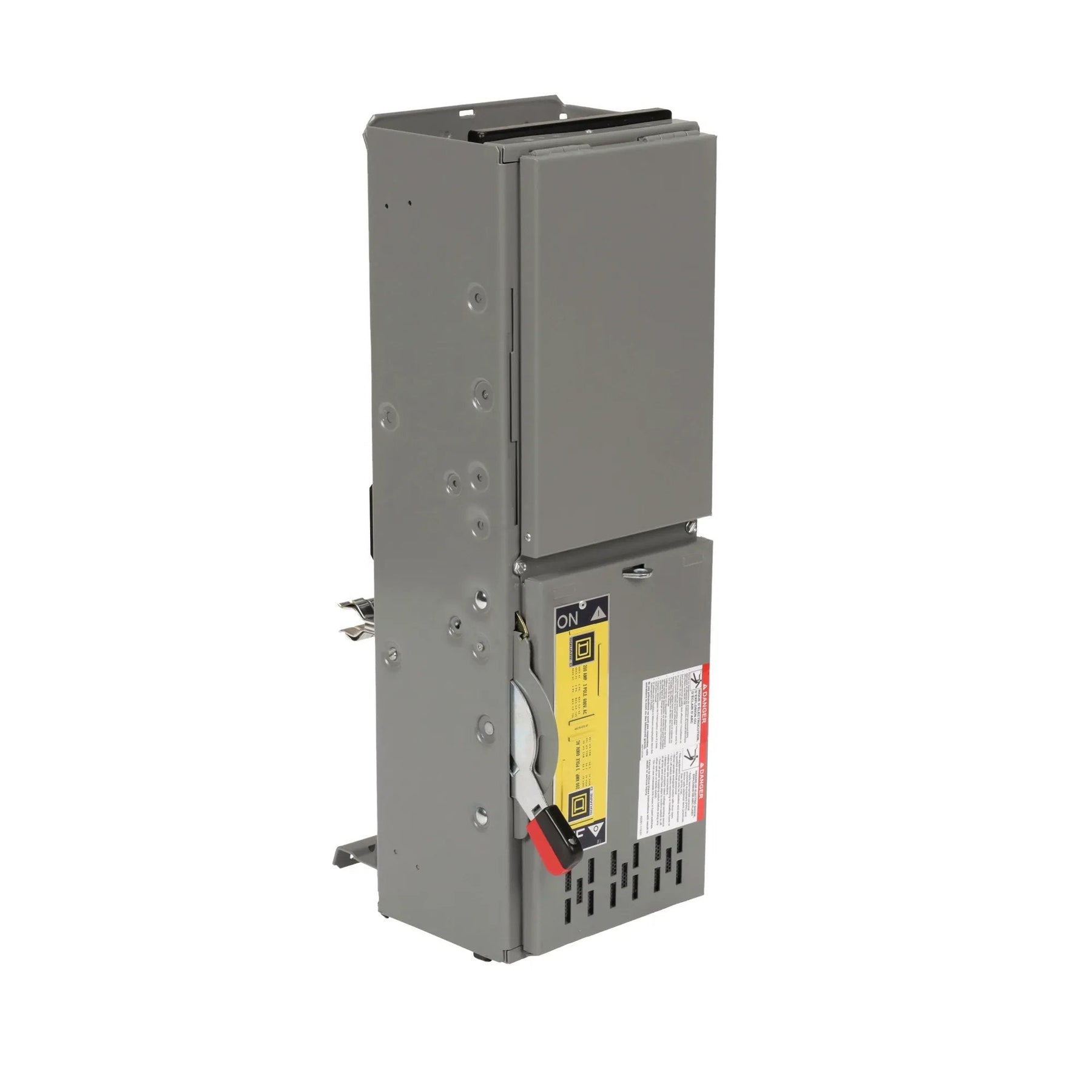

Square D QMJ364H is a fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution. It features a 600V AC voltage rating and a 200A current rating for robust three-phase applications. The switch is constructed with a NEMA 1 enclosure measuring 191 mm H x 112.78 mm W x 78.49 mm D and weighs 32.6 lb, and it is certified to CSA and UL standards. It is engineered for a high 200kA interrupting capacity at 480V and is typically applied in industrial panels and motor control centers for main feeder and branch circuit protection.

Key Features & Specifications
  • Type: Fusible safety switch, panel mount, QMJ type
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Dimensions: 191 mm H x 112.78 mm W x 78.49 mm D (7.52 in x 4.44 in x 3.09 in)
  • Standards: CSA, UL
  • Applications: Industrial power distribution, main feeder and branch circuit protection
  • Switch Type: Fusible
  • Configuration: Single
  • Poles: 3
  • AIC rating: 200kA @ 480V
  • Nema Rating: 1
  • Phase: 3
  • Fuse Class: J
  • Compatible Frames: HHED
  • Family: QMB Series E1-E2
  • Weight: 32.6 lb


Product Identification
  • UPC: 785901209034
  • GTIN: 00785901209034
