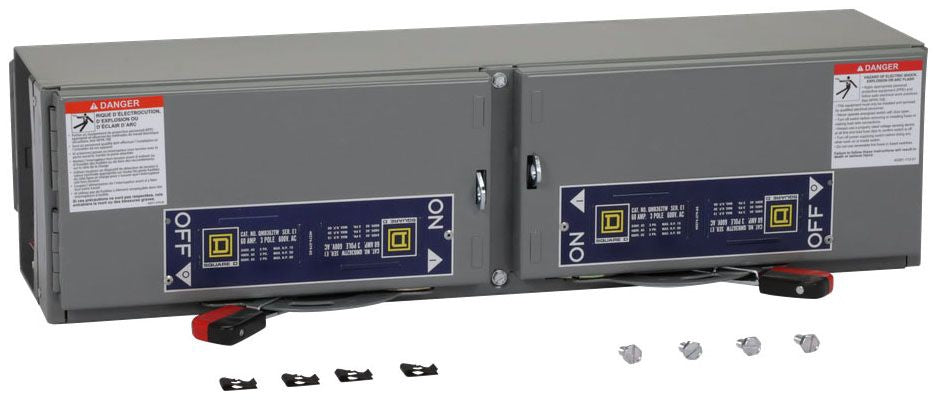

Square D QMB362TWRK - Fusible Disconnect Switch 600V/60A (200kA AIC @600V)

Square D QMB362TWRK is a fusible disconnect switch designed for industrial power distribution systems requiring reliable circuit protection. This UL-listed 3-phase switch features a 600V voltage rating and 60A current capacity with a 200kA interrupting rating at 600V for robust fault protection. The compact unit (58.4mm x 47.1mm x 35.3mm) utilizes a twin branch configuration with Class R fuses in a NEMA 1 enclosure. Compliant with UL standards, it's engineered for compatibility with HHED frames in commercial and industrial applications requiring high-performance circuit isolation.

Key Features & Specifications

• Type: Fusible disconnect switch with Class R fuse protection
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 58.4mm (D) x 47.1mm (W) x 35.3mm (H)
• Standards: UL LISTED
• Applications: Industrial power distribution, motor control centers
• Configuration: Twin Branch
• Poles: 3
• AIC rating: 200kA@600V
• Switch Style: Fusible
• Nema Rating: 1
• Phase: 3
• Weight: 9.95 lb
• Compatible Frames: HHED
• Fuse Class: R

Product Identification

• UPC: 785901247746
• GTIN: 00785901247746
