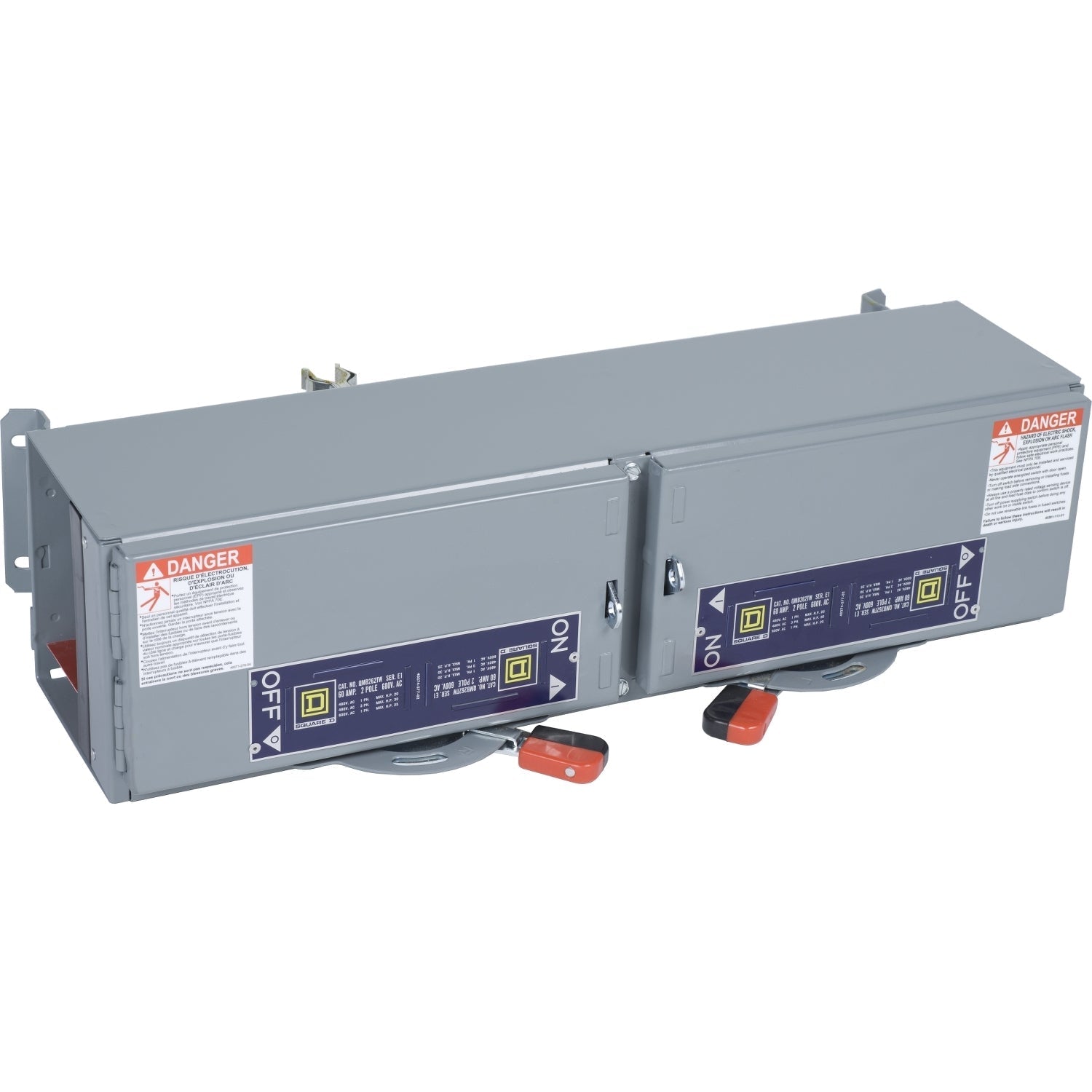

Square D QMB362TJ - Fusible Safety Switch 600V/60A (3-Pole, 200kA AIC)

Square D QMB362TJ is a fusible safety switch designed for industrial power distribution protection. This 600V AC, 60A rated switch features a dual/twin configuration with three poles and a 200kA interrupting capacity at 480V for robust circuit protection. The panel-mounted unit weighs 30 lb and is constructed with NEMA 1-rated enclosure for basic indoor environmental protection. Compliant with industrial safety standards, it's engineered for compatibility with ED frame applications. Typical uses include motor control centers, industrial machinery, and three-phase power distribution systems requiring Class J fuse protection.

Key Features & Specifications

• Type: Fusible safety switch, panel mount, QMB Series D2
• Voltage Rating: 600V AC
• Current Rating: 60A
• Configuration: Dual/Twin
• Poles: 3
• Phase: 3
• AIC Rating: 200kA@480V
• Fuse Class: J
• NEMA Rating: 1
• Compatible Frames: ED
• Weight: 30 lb
• Switch Style: Fusible
• Standards: Industrial safety compliance
• Applications: Motor control centers, industrial power distribution
