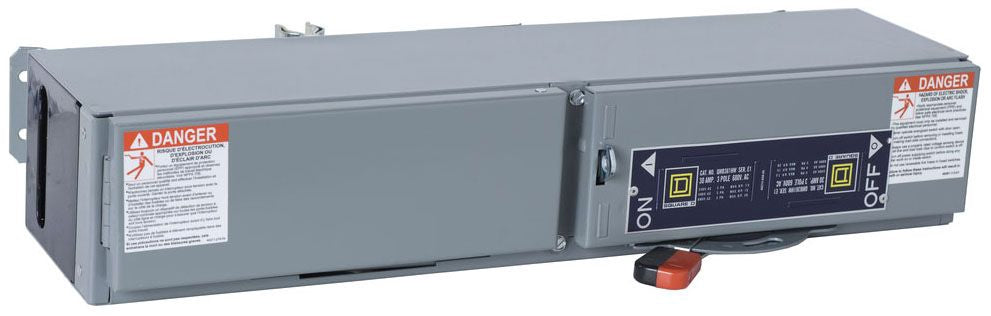

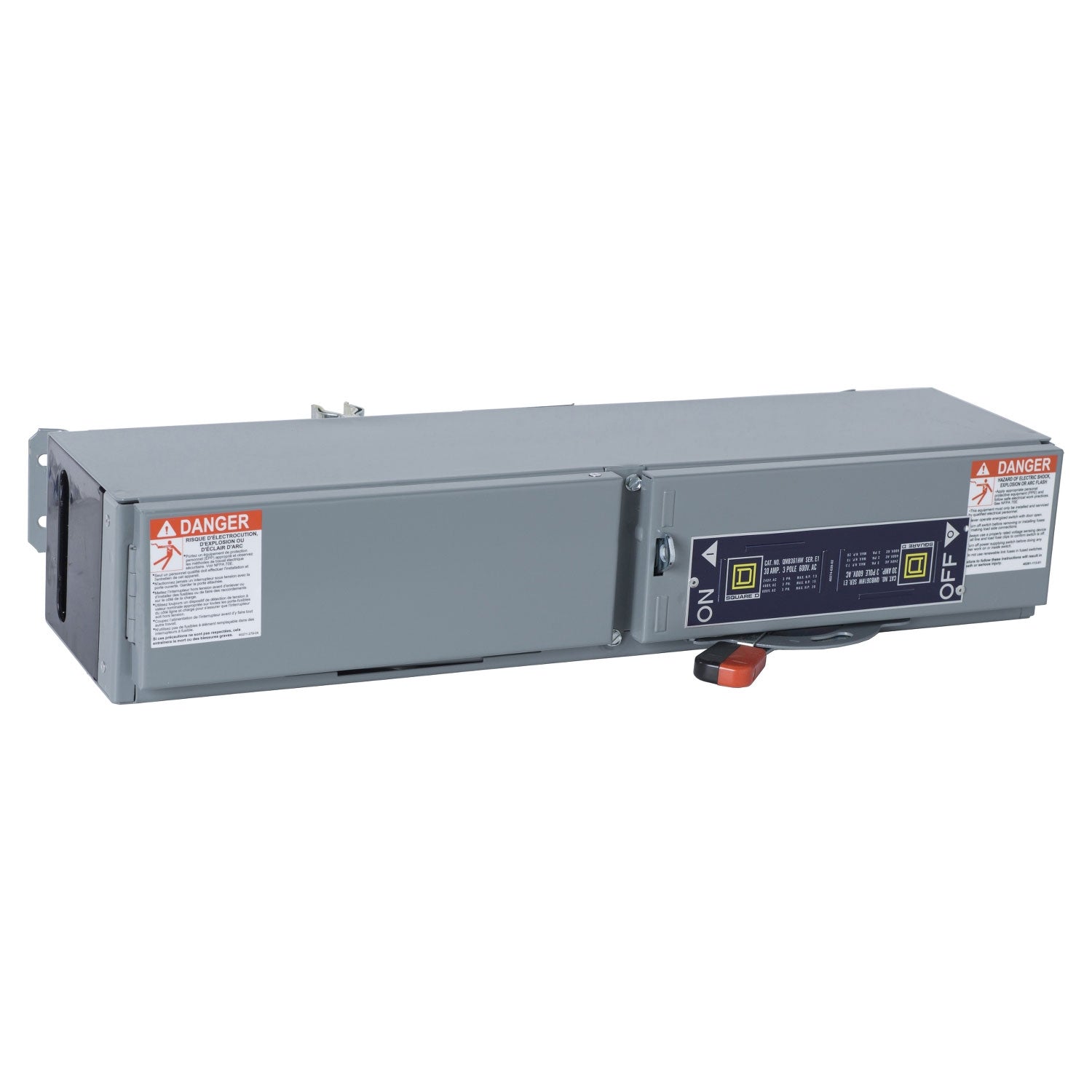

Square D QMB362HW is a fusible safety switch designed for providing reliable circuit protection and isolation in three-phase industrial power distribution systems. It is rated for 600V AC and 60A, featuring a robust NEMA 1 enclosure with dimensions of 152.4 mm H x 112.78 mm W x 78.49 mm D and a weight of 19.61 lb. The switch is UL and CSA certified and offers a high 200kA interrupting capacity at 480V for enhanced safety. Its typical applications include service entrance and branch circuit protection in meter boards and distribution panels.

Key Features & Specifications
  • Type: Panel-mount, fusible safety switch, 3-pole configuration
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 152.4 mm H x 112.78 mm W x 78.49 mm D (6 in x 4.44 in x 3.09 in)
  • Standards: UL, CSA Certified
  • Applications: Meter board and distribution board circuit protection
  • Switch Type: Fusible
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 480V
  • Wire Size: 12 to 2 AWG (Aluminum), 14 to 4 AWG (Copper)
  • Fuse Class: R, H, K
  • NEMA Rating: 1
  • Compatible Frames: HHED
  • Panel Type: Meter board, Distribution board
  • Weight: 19.61 lb
  • Country of Origin: United States


Product Identification
  • UPC: 785901765752
  • GTIN: 00785901765752
