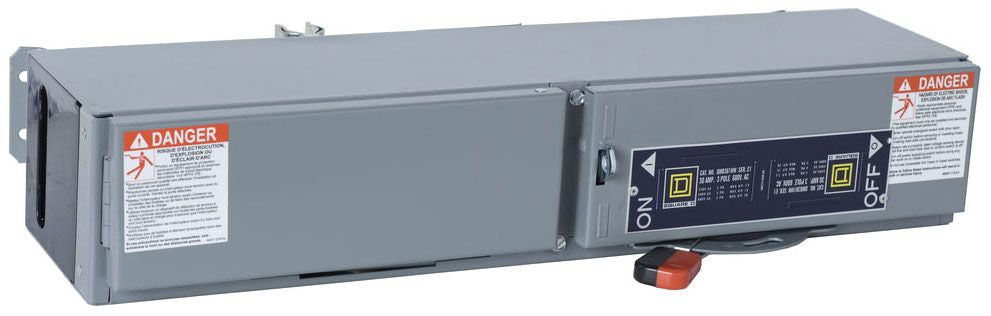

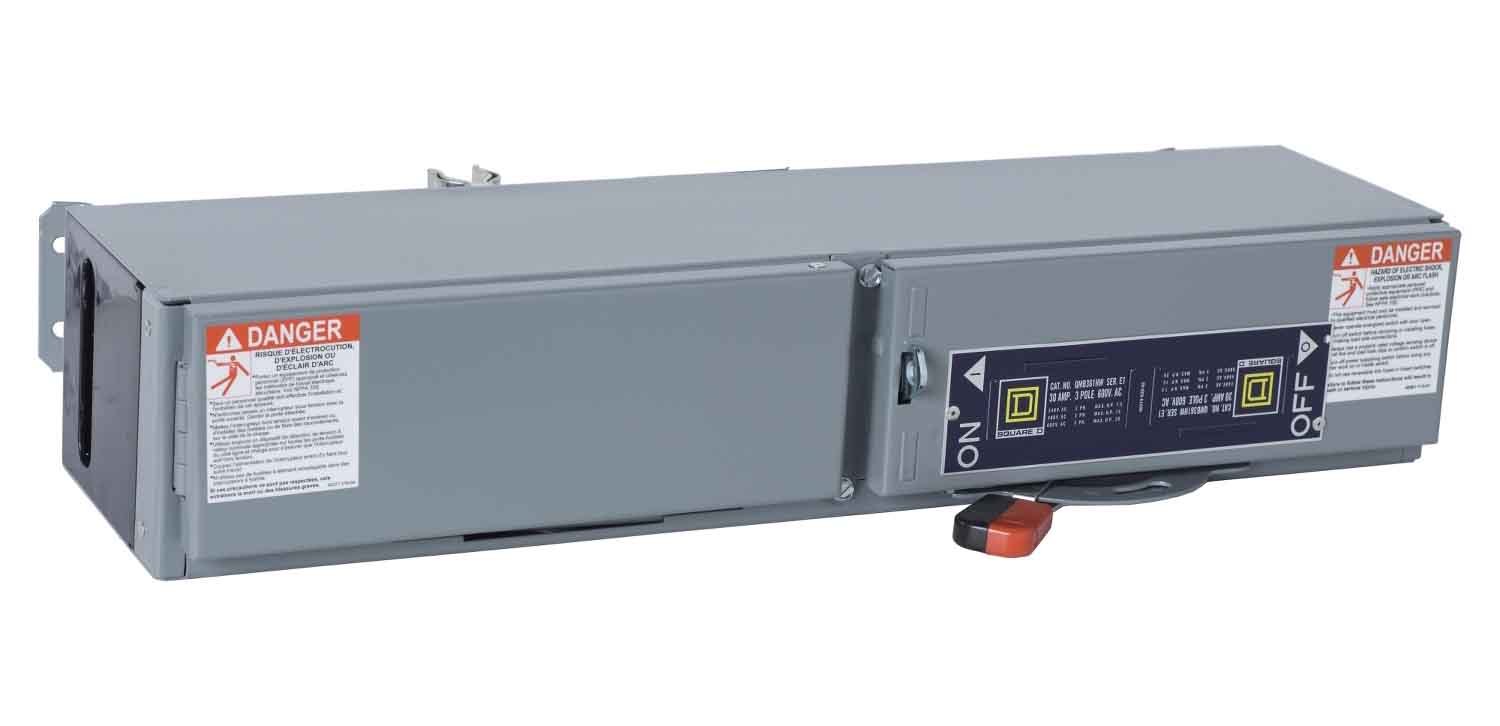

Square D QMB361HW - Fusible Safety Switch 30A 600V 3-Pole

Price
Regular price $1,312.48
Regular price $16,542.10 Sale price $1,312.48
Save $15,229.62
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Square D QMB361HW is a panel-mounted fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution systems. It features a 600V AC voltage rating and a 30A current rating for three-phase applications, housed in a robust NEMA Type 1 enclosure with dimensions of 114.30 mm H x 112.78 mm W x 78.49 mm D and a weight of 15.119 lb. The switch is certified to NEMA KS1 standards and offers a high interrupting capacity of 200kA at 480V AC for enhanced safety. Its fusible design, compatible with Class R, H, and K fuses and ED frames, makes it suitable for installation in meter and distribution boards for main feeder and branch circuit protection.

Key Features & Specifications
  • Type: Panel-mounted, fusible safety switch, QMB Series E1-E2
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 114.30 mm H x 112.78 mm W x 78.49 mm D (4.5 in x 4.44 in x 3.09 in)
  • Weight: 15.119 lb
  • Standards: Certified to NEMA KS1
  • Applications: Main feeder and branch circuit protection in industrial meter and distribution boards
  • Switch Type: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 480V AC
  • Fuse Class: R, H, K
  • Compatible Frames: ED
  • Panel Type: Meter board, Distribution board
  • NEMA Rating: 1
  • Country of Origin: United States


Product Identification
  • UPC: 785901748090
  • GTIN: 00785901748090
