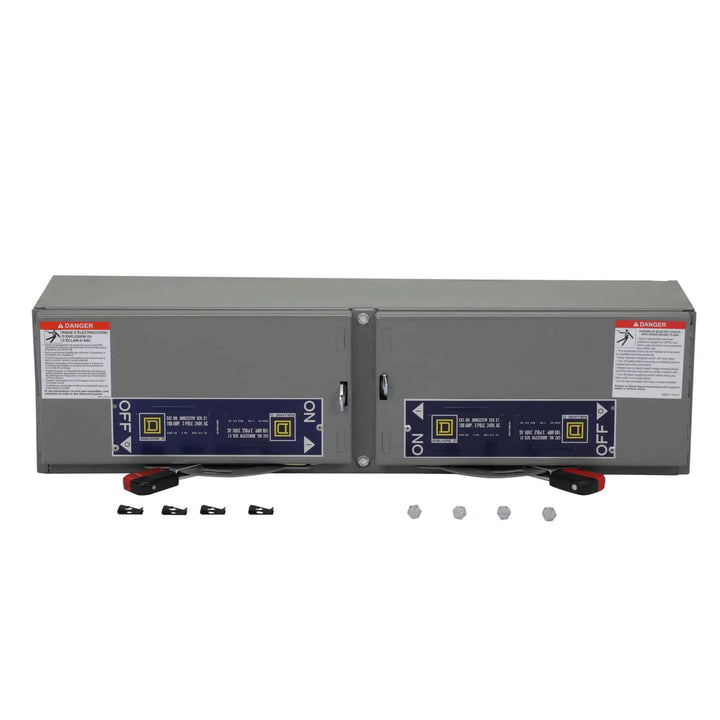

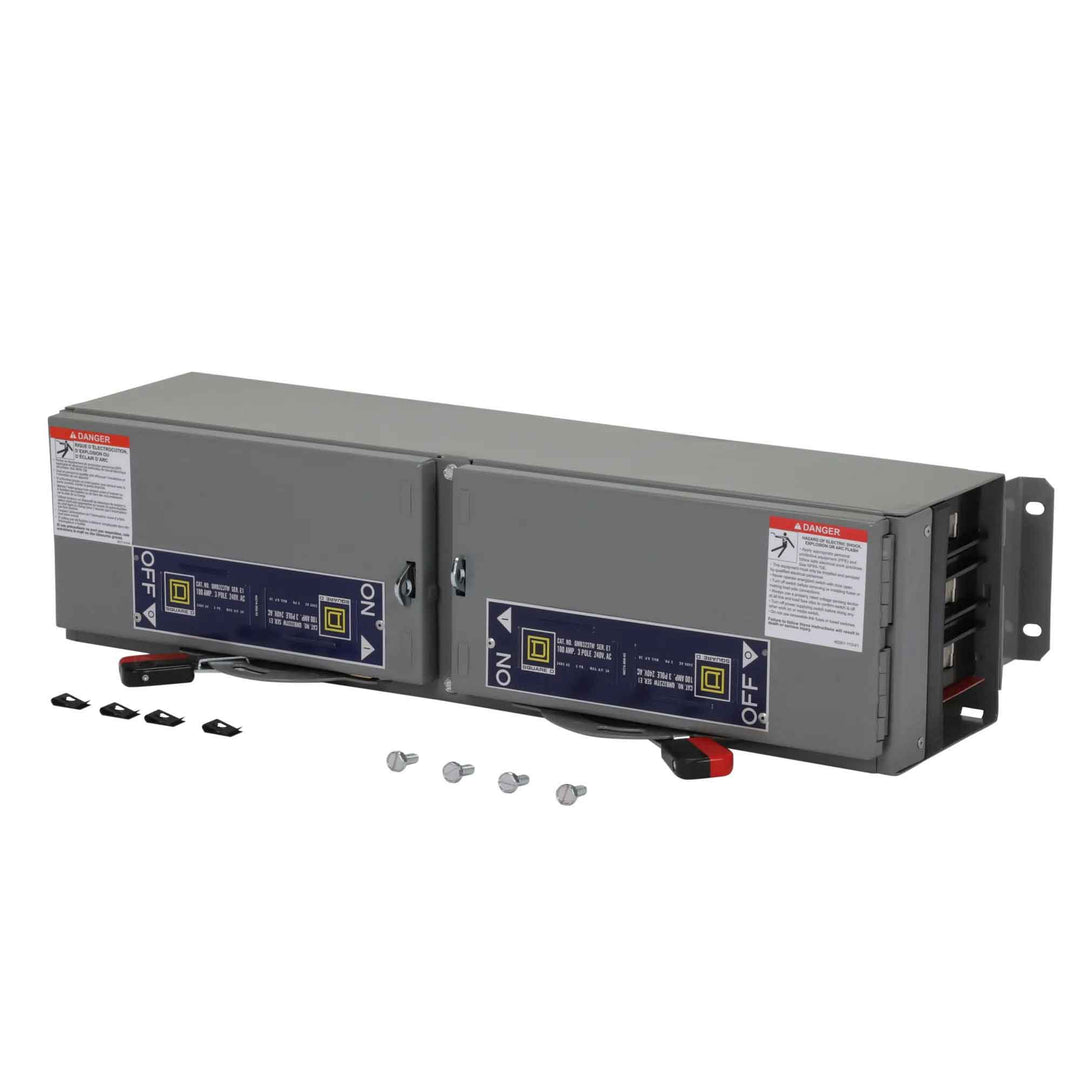

Square D QMB323TW - Fusible Safety Switch 100A 3P (200kA AIC)

Price
Regular price $7,164.46
Regular price $4,627.06 Sale price $7,164.46
Save $-2,537.40
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

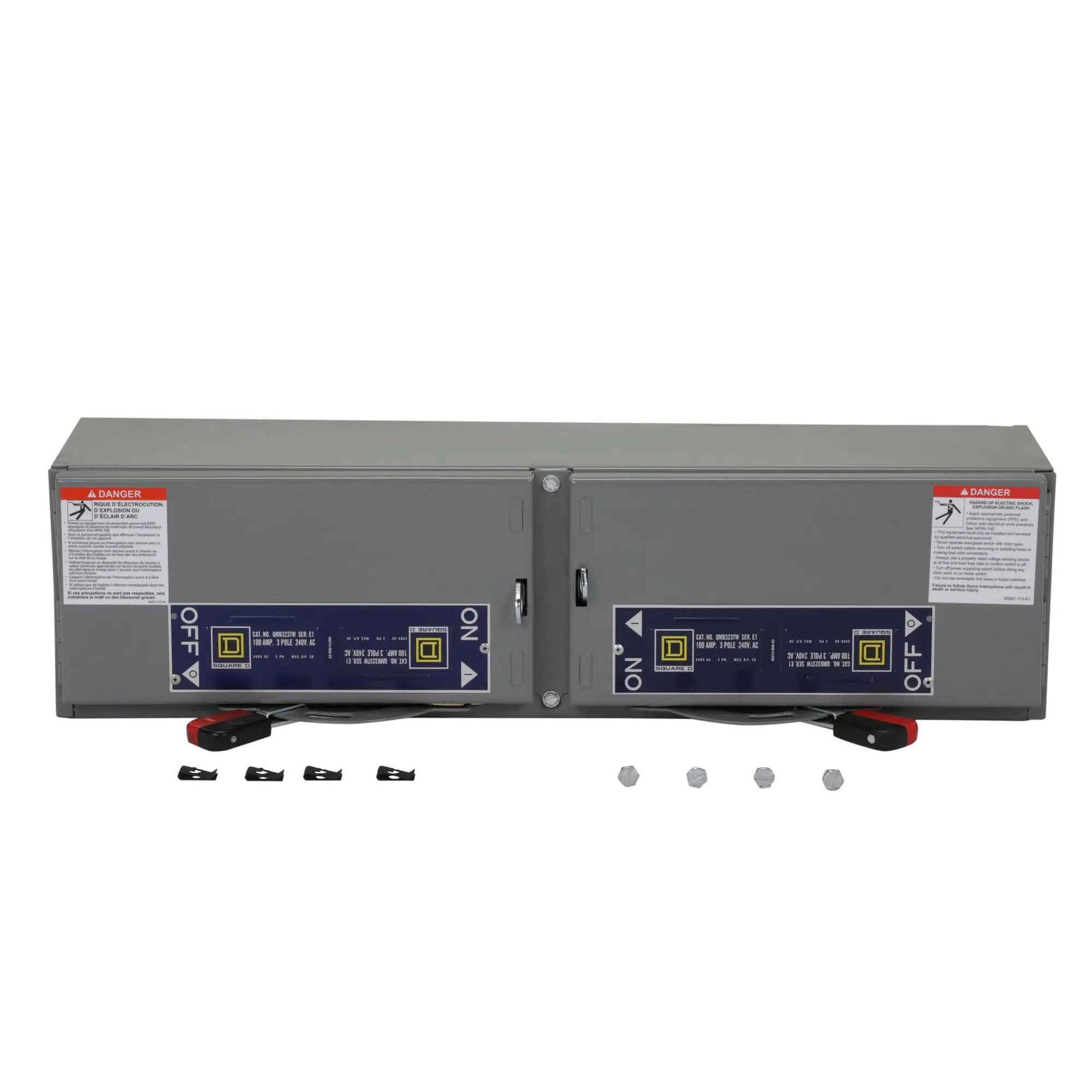

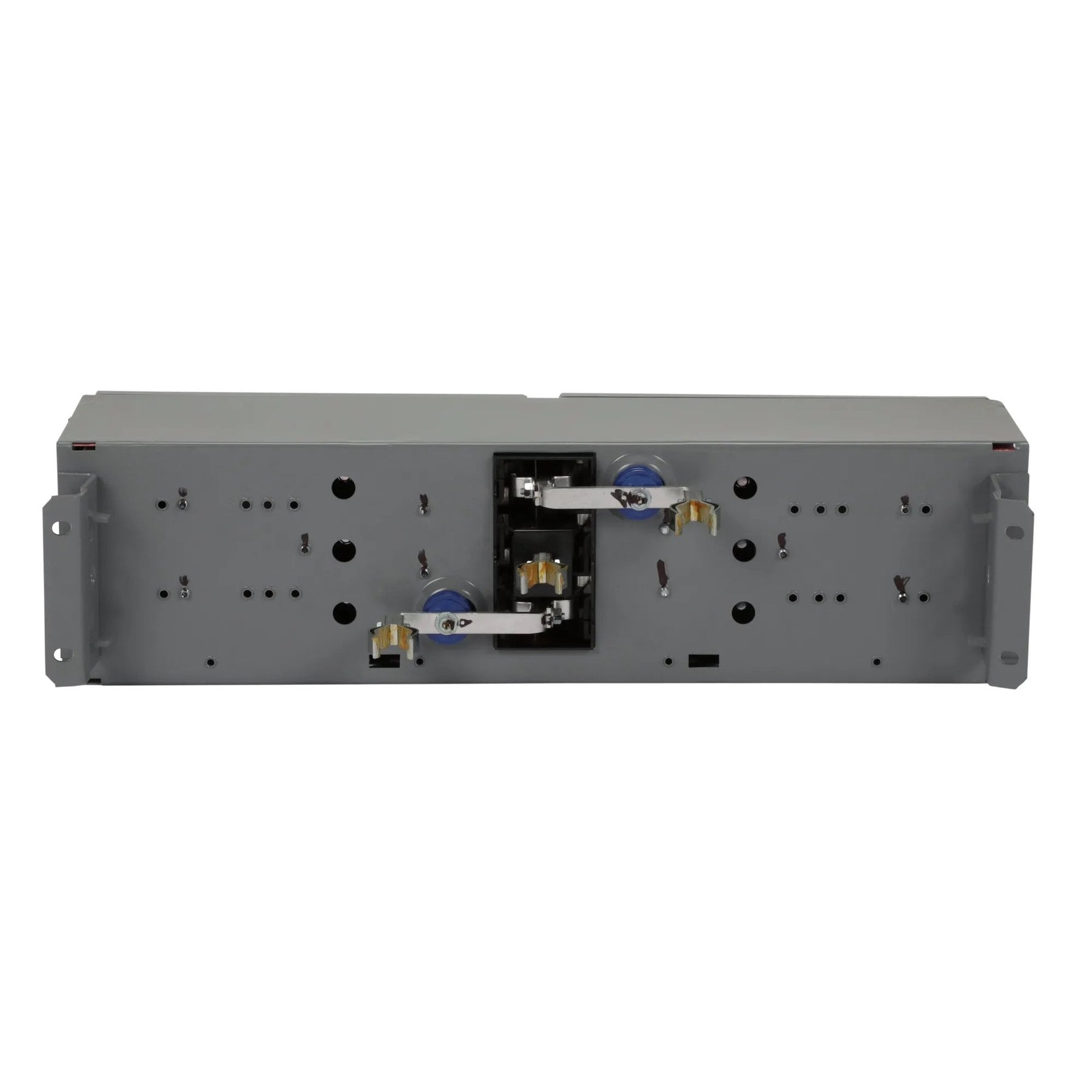

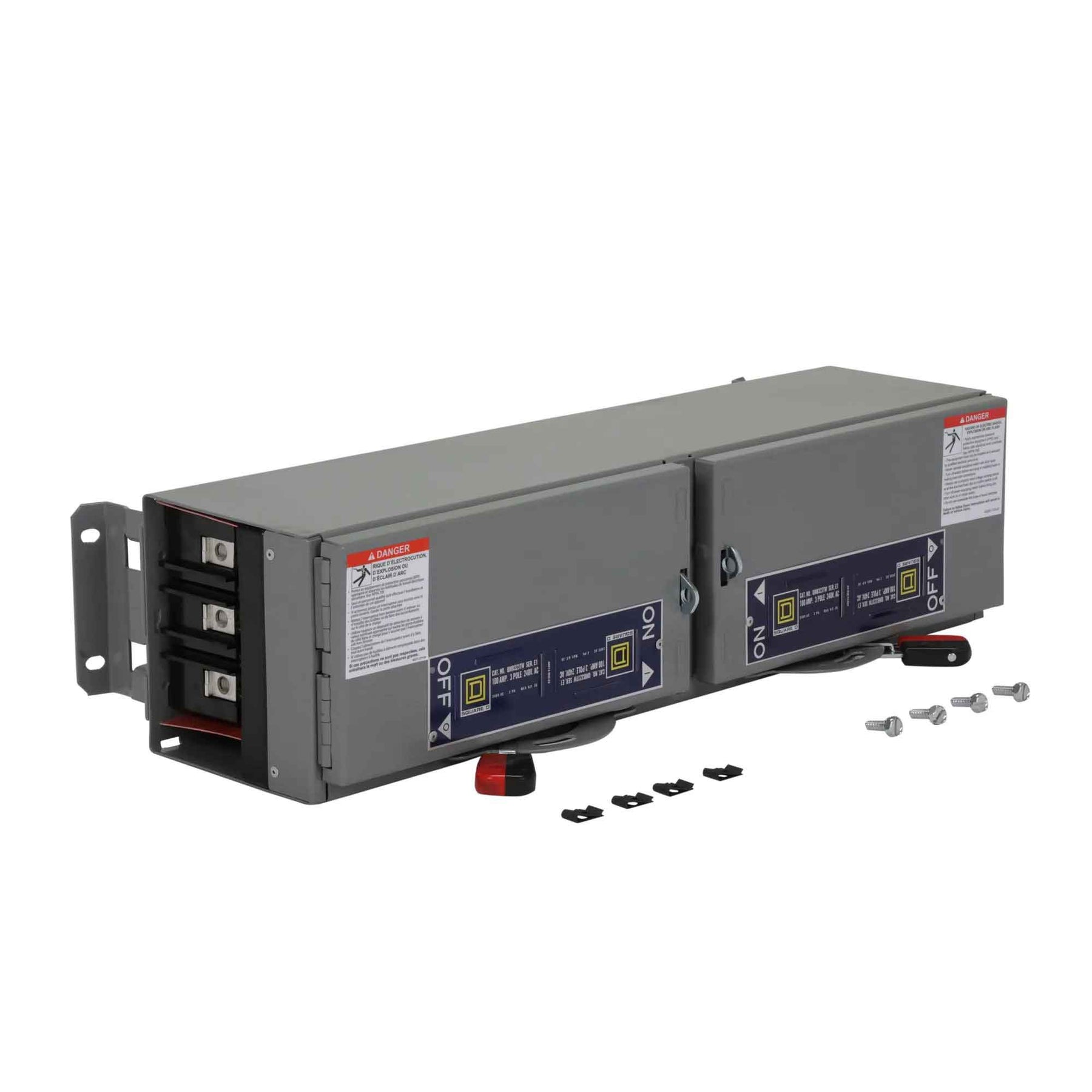

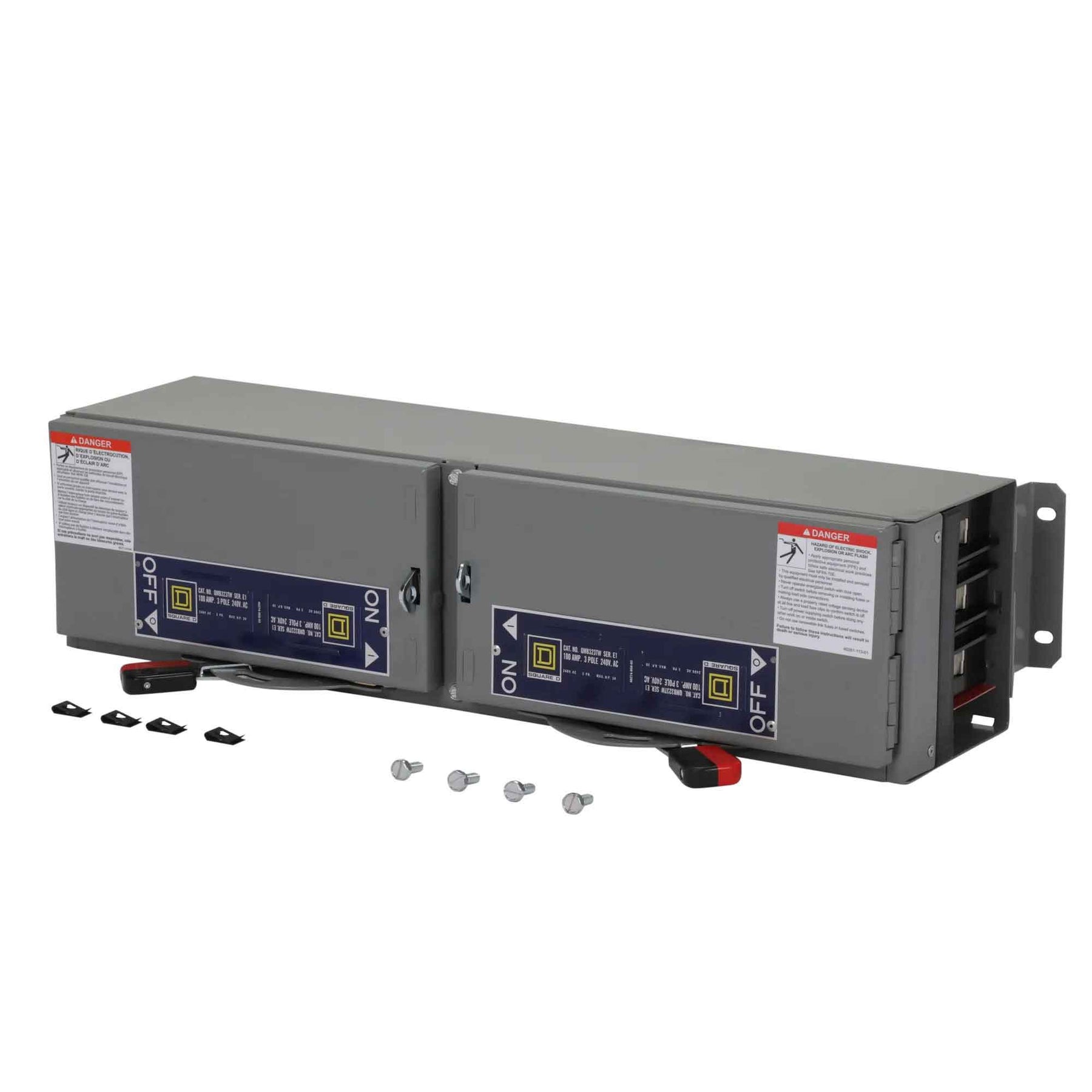

Square D QMB323TW is a panel-mounted fusible safety switch designed for providing reliable circuit protection and isolation in industrial three-phase power distribution systems. It features a 240V AC voltage rating and a 100A current rating, housed in a robust NEMA Type 1 enclosure with dimensions of 229 mm H x 112.78 mm W x 78.49 mm D and a weight of 23.001 lb. The switch is certified to NEMA KS1 standards and offers a high 200kA interrupting capacity at 240V, making it suitable for demanding applications such as motor control centers, industrial machinery, and main service disconnects where robust protection is required.

Key Features & Specifications
  • Type: Panel-mounted, fusible safety switch, dual/twin configuration
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R, H, K, J, T
  • Configuration: Dual/Twin
  • Wire Size: 12 to 1/0 AWG Aluminum
  • NEMA Rating: 1
  • Switch Style: Fusible
  • Certification: NEMA KS1
  • Compatible Frames: ED
  • Dimensions: 229 mm H x 112.78 mm W x 78.49 mm D (9.02 in x 4.44 in x 3.09 in)
  • Weight: 23.001 lb
  • Family: QMB Series E1-E2
  • Country of Origin: United States


Product Identification
  • UPC: 785901765745
  • GTIN: 00785901765745
