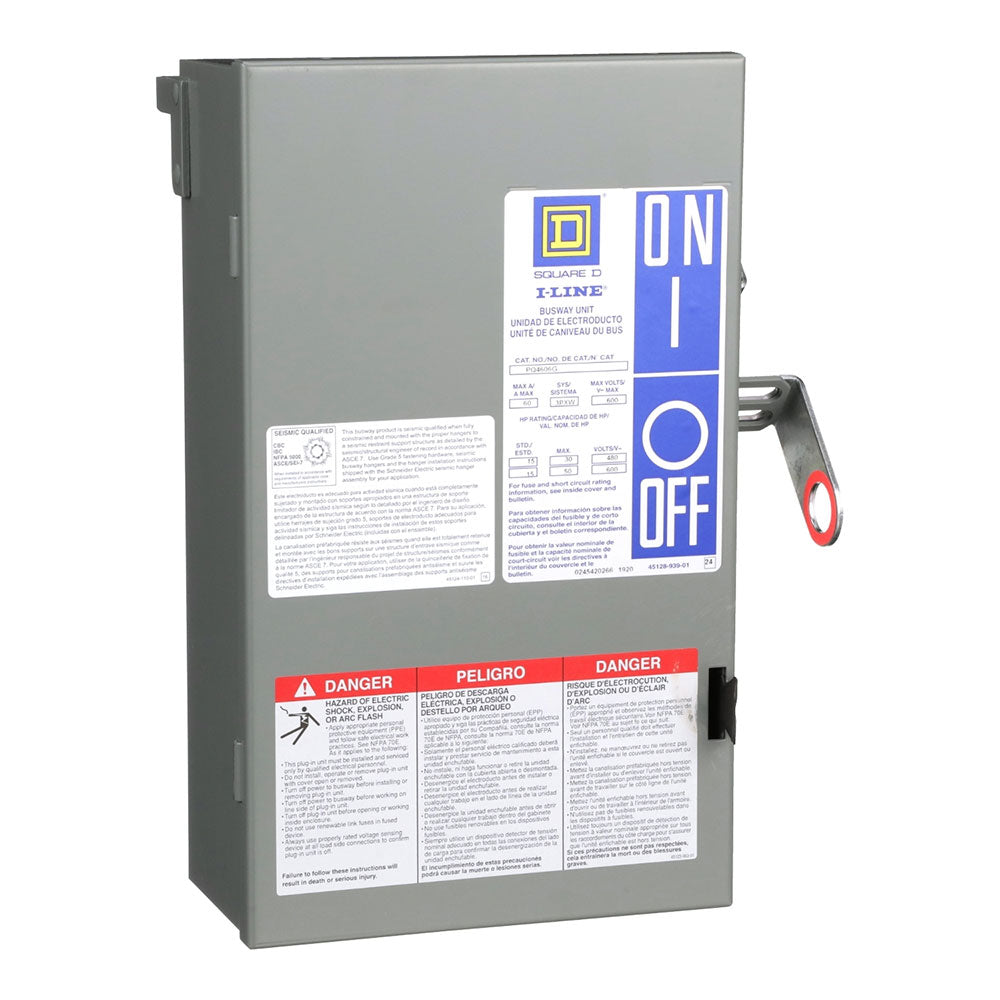

Square D PQ4606G - Fusible Bus Plug 60A 480V (200kA AIC)
Square D PQ4606G - Fusible Bus Plug 60A 480V (200kA AIC)

Square D PQ4606G - Fusible Bus Plug 60A 480V (200kA AIC)

Square D
Price
Save $276.45
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Square D PQ4606G Bus Plug is a fusible disconnect device designed to provide branch circuit protection and isolation for industrial power distribution systems. It is rated for 60A at 277/480/600V AC in three-phase applications, featuring a 200kA interrupting capacity at 480V for robust short-circuit protection. The unit is constructed for the I-Line busway system with dimensions of 15 inches by 8-7/8 inches and a weight of 13.62 lb, and it complies with UL and CSA standards for safety. This bus plug is engineered for use in demanding environments such as manufacturing plants and data centers, where reliable circuit protection and isolation are critical.

Key Features & Specifications
  • Type: Fusible disconnect bus plug for I-Line busway
  • Voltage Rating: 277/480/600V AC
  • Current Rating: 60A
  • Phase: 3
  • AIC Rating: 200kA @ 480V
  • Fuse Class: H, K, R
  • Wire: 4
  • Dimensions: 15 in x 8-7/8 in
  • Weight: 13.62 lb
  • Standards: UL Listed, CSA Certified
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901309895
  • GTIN: 00785901309895
