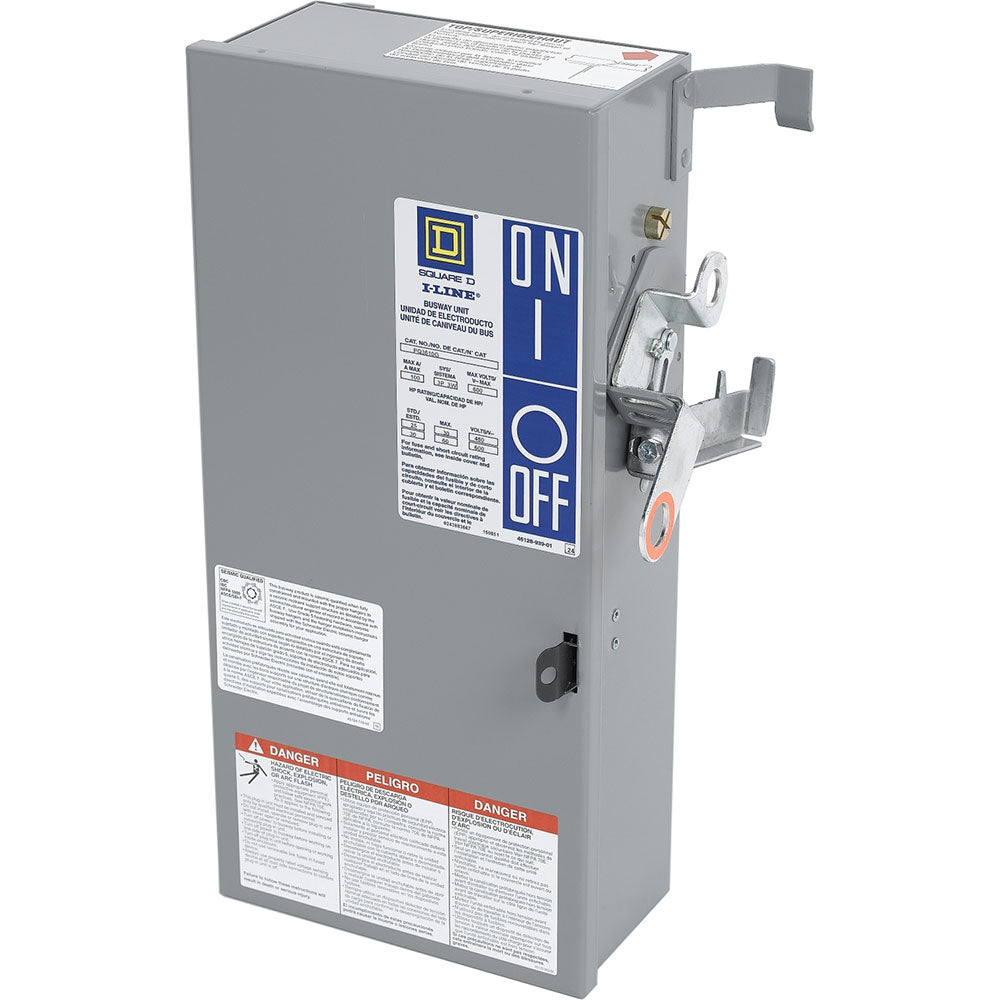

The Square D PQ3610G Bus Plug is a fusible disconnect device designed to provide branch circuit protection and isolation for industrial power distribution systems. It features a 600V AC voltage rating and a 100A current rating, housed within a compact 19-inch by 8-7/8-inch enclosure with a weight of 17.551 lb. The unit is CSA Certified and UL Listed, ensuring compliance with rigorous North American safety standards for three-phase applications. Its robust construction and 200kA interrupting rating at 480V make it suitable for protecting motor control centers, panelboards, and industrial machinery where high fault currents are present.

Key Features & Specifications
  • Type: Fusible disconnect bus plug, I-Line family, PQ type
  • Voltage Rating: 600 V AC
  • Current Rating: 100 A
  • Phase: 3
  • AIC Rating: 200 kA at 480V
  • Dimensions: 19 in x 8-7/8 in
  • Weight: 17.551 lb
  • Fuse Class: Compatible with H, K, J, and R class fuses
  • Wire: 3-wire configuration
  • Certification: CSA Certified, UL Listed
  • Country of Origin: Mexico
