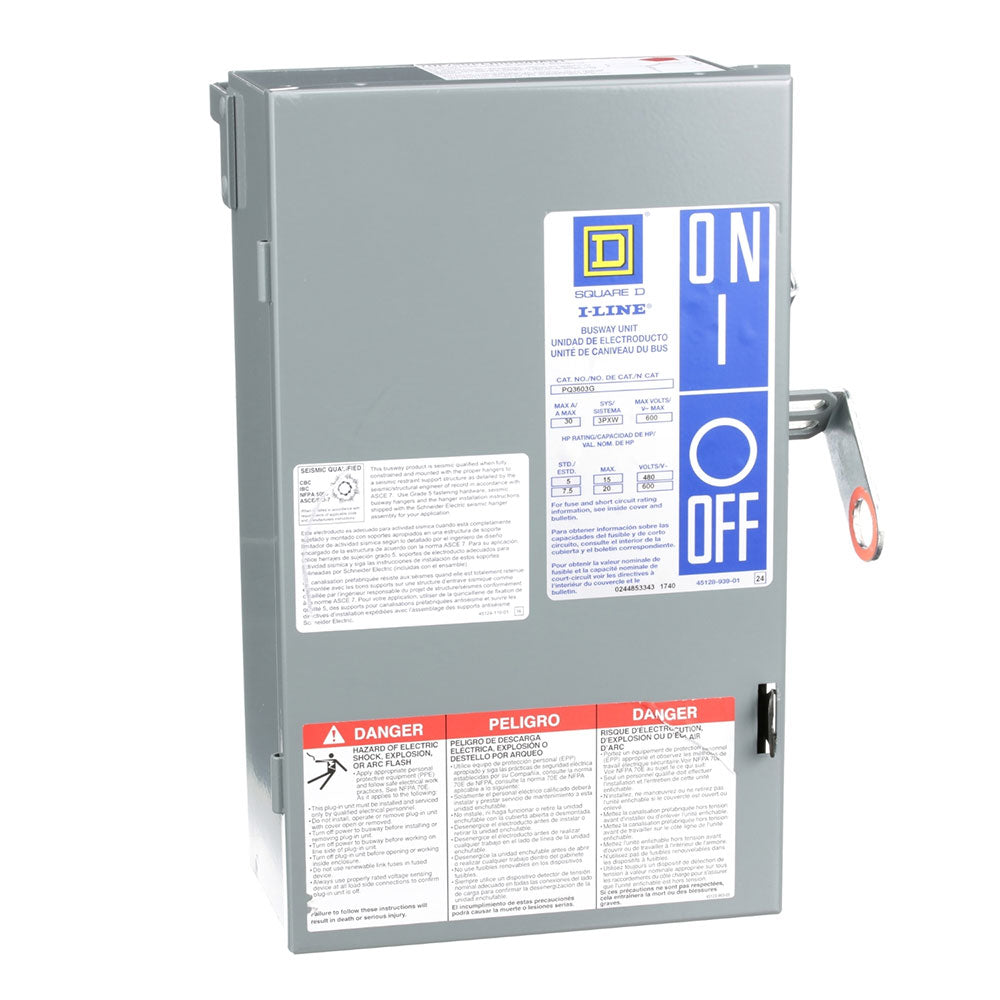

Square D PQ3603G - Fusible Bus Plug 30A 600V (200kA AIC)
Square D PQ3603G - Fusible Bus Plug 30A 600V (200kA AIC)

Square D PQ3603G - Fusible Bus Plug 30A 600V (200kA AIC)

Square D
Price
Save $393.62
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D PQ3603G is a fusible bus plug designed for branch circuit protection and isolation in industrial power distribution systems. It provides a 30A current rating and 600V AC voltage rating for three-phase applications, housed in a compact 15" x 8-7/8" enclosure constructed for the I-Line busway system. The unit is CSA Certified and UL Listed, featuring a 200kA interrupting rating at 480V for high fault current protection and accepts H, K, J, and R class fuses. Its design is suited for controlling and protecting motor loads and feeder circuits in manufacturing plants, data centers, and commercial facilities.

Key Features & Specifications
  • Type: Fusible bus plug for I-Line busway, PQ type
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Phase: 3
  • AIC Rating: 200kA @ 480V
  • Fuse Class: H, K, J, R
  • Wire: 3
  • Dimensions: 15 in x 8-7/8 in
  • Weight: 13.179 lb
  • Standards/Certification: CSA Certified, UL Listed
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901263906
  • GTIN: 00785901263906
