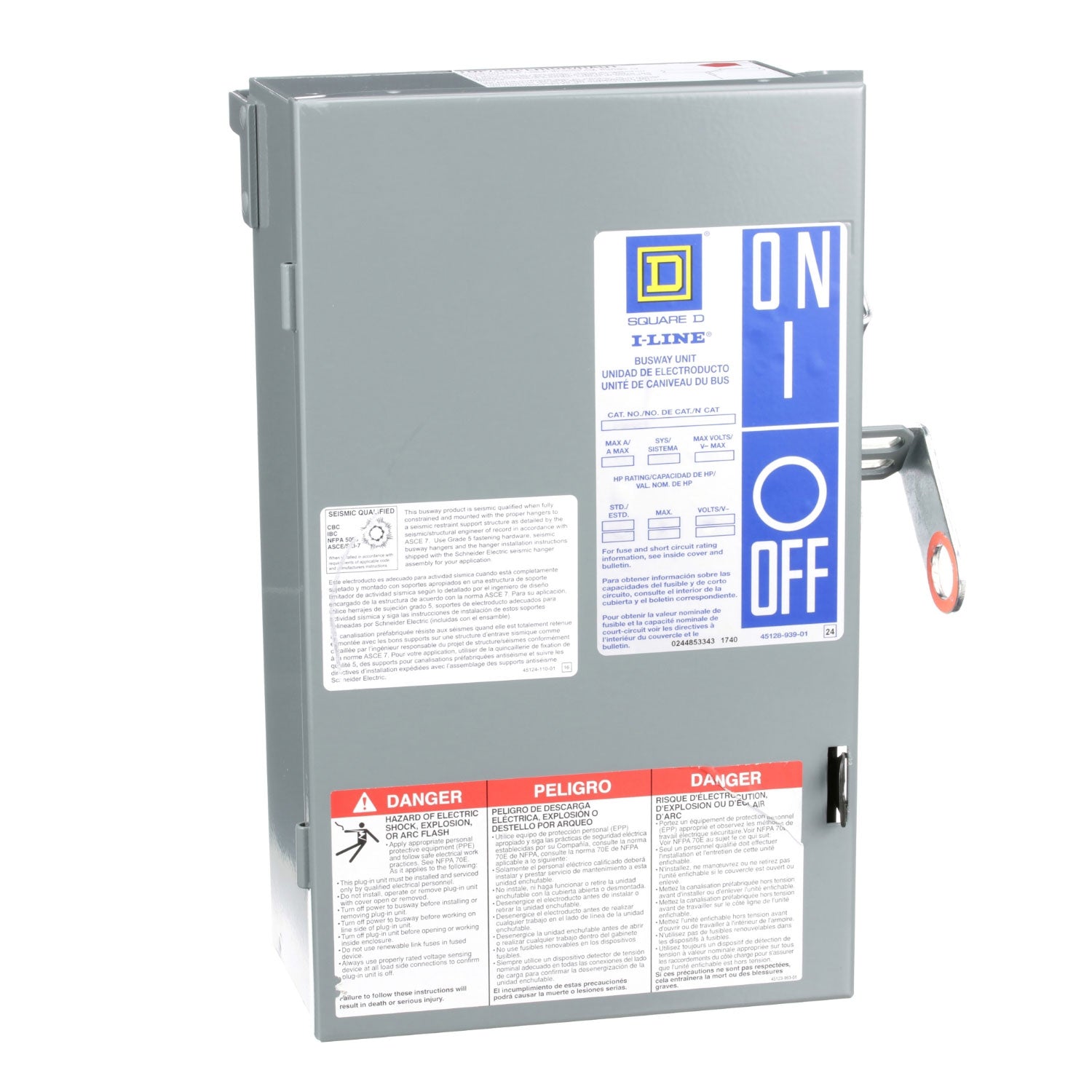

Square D PQ3203G - Fusible Bus Plug 30A 3P (200kA AIC)
Square D PQ3203G - Fusible Bus Plug 30A 3P (200kA AIC)

Square D PQ3203G - Fusible Bus Plug 30A 3P (200kA AIC)

Square D
Price
Save $-631.08
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Square D PQ3203G is a fusible bus plug designed for branch circuit protection and isolation in industrial power distribution systems. It provides a 30A current rating for three-phase circuits operating at 240V AC, with a high interrupting capacity of 200kA. The unit is constructed for the I-Line busway system, featuring a compact design with dimensions of 136.65 mm in depth by 143.26 mm in width and a weight of 14.05 lb. It is certified to CSA and UL standards and is compatible with H, K, J, and R fuse classes for flexible protection schemes, making it suitable for use in manufacturing plants, data centers, and other facilities requiring reliable feeder or branch circuit protection.

Key Features & Specifications
  • Type: Fusible bus plug for I-Line busway
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Phase: 3
  • AIC Rating: 200kA @ 240V
  • Dimensions: 136.65 mm D x 143.26 mm W (5.38 in x 5.64 in)
  • Weight: 14.05 lb
  • Fuse Class: H, K, J, R
  • Wire: 3
  • Certification: CSA, UL
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901263944
  • GTIN: 00785901263944
