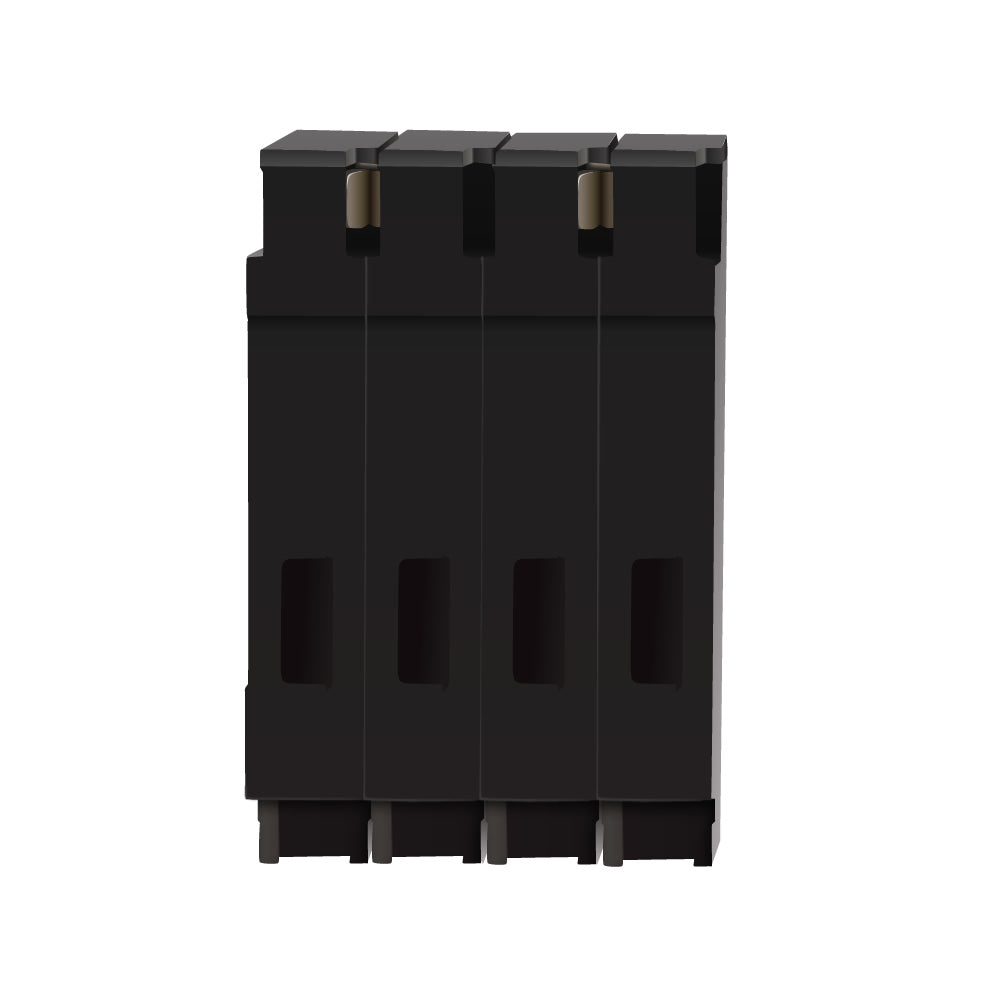

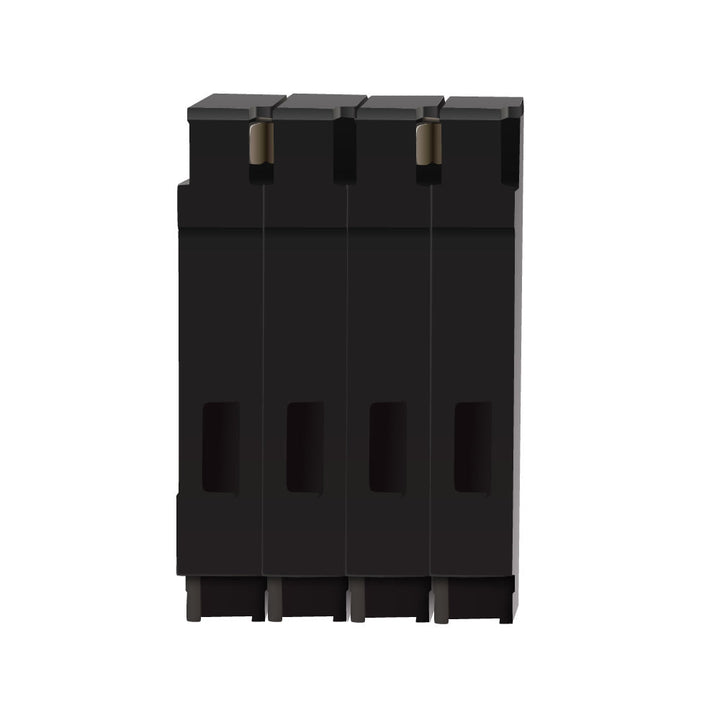

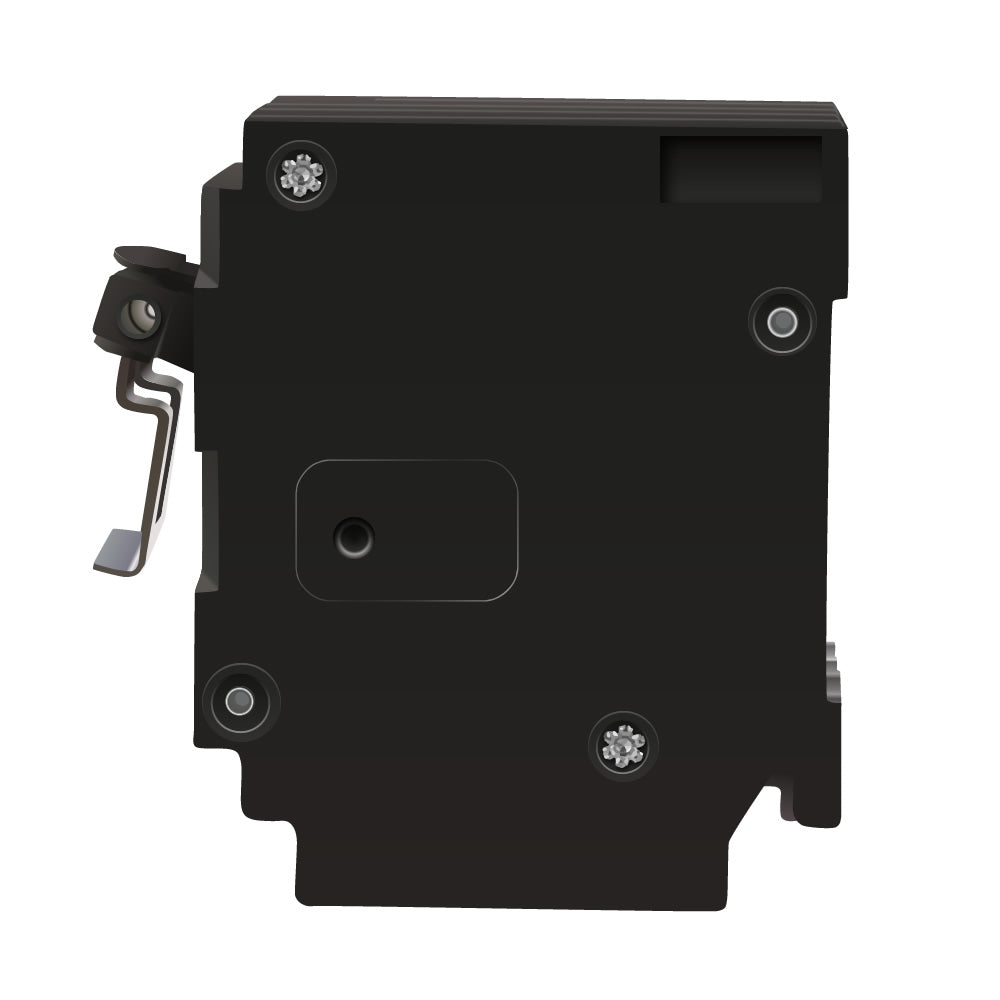

Murray MP230240CT2 - 4-Pole 40A Thermal Magnetic Breaker (10kA AIC)

Price
Regular price $63.40
Regular price $301.00 Sale price $63.40
Save $237.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Murray MP230240CT2 is a molded case circuit breaker designed for reliable overcurrent protection in single-phase electrical systems. It provides a 40A current rating and 240V voltage rating with thermal-magnetic protection combining long-time and instantaneous trip functions for comprehensive circuit safety. The unit features a compact plug-in configuration with four poles, constructed to operate within a temperature range of -25 to 70 °C (-13 to 158 °F) and is UL Listed. This breaker is engineered for commercial and light industrial applications, supporting wire sizes from AWG 8 to 6 for copper and AWG 8 to 4 for aluminum conductors.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, MP-T Series, Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 40A
  • Dimensions: 2.756" H x 1.969" W x 2.756" D (70mm x 50mm x 70mm)
  • Standards: UL Listed
  • Applications: Commercial and Light Industrial Electrical Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • Amperage: 40A
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 4
  • Protection: Thermal-Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: AWG 8 to 6 (Copper), AWG 8 to 4 (Aluminum)
  • Certification: UL Listed
  • Weight: 0.794 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 040892001303
  • GTIN: 00040892001303
