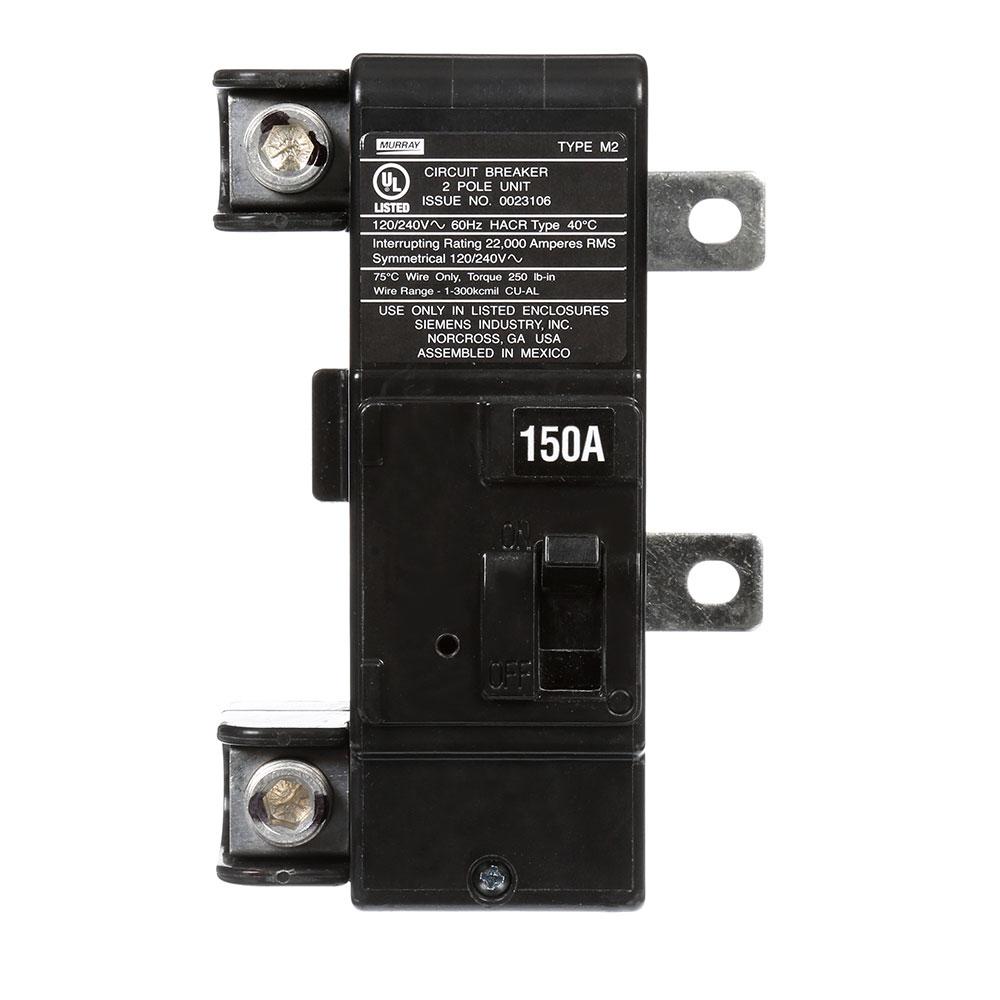

Siemens MBK150M - Molded Case Circuit Breaker 150A 2-Pole

Price
Regular price $345.44
Regular price $1,245.00 Sale price $345.44
Save $899.56
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens MBK150M is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 150A current rating and a 240V AC voltage rating, housed within a compact, durable molded case measuring 4.724 x 6.299 x 3.937 inches and weighing 1.852 lb. The breaker utilizes a thermal-magnetic trip unit with Long-time and Instantaneous (LI) protection functions, offers a 22kA interrupting capacity at 240V, and is configured as a single-phase, two-pole, plug-in unit for straightforward installation. It is engineered to meet relevant industry standards for safety and performance in demanding applications such as panelboards, switchboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker (MBK Series), Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 150A
  • Dimensions: 4.724" x 6.299" x 3.937" (120mm x 160mm x 100mm)
  • Weight: 1.852 lb (0.84 kg)
  • Standards: Complies with applicable UL and IEC standards
  • Applications: Panelboards, Switchboards, Motor Control Centers, Industrial Distribution
  • Phase: 1
  • Poles: 2
  • Connection: Plug-In
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • AIC Rating: 22kA @ 240V
  • Country of Origin: Mexico


Product Identification
  • UPC: 040892009361
  • GTIN: 00040892009361
