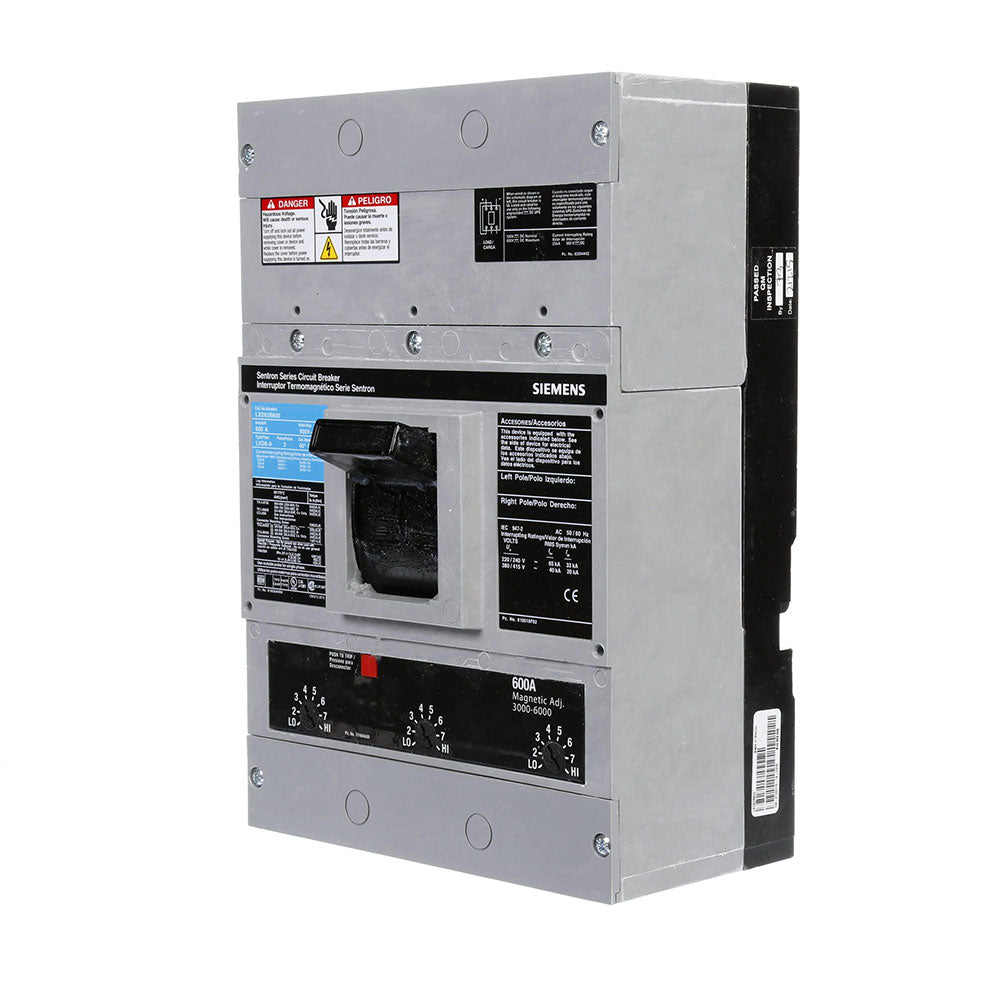

Siemens LXD63L600 - Molded Case Circuit Breaker 600A 600V
Siemens LXD63L600 - Molded Case Circuit Breaker 600A 600V

Siemens LXD63L600 - Molded Case Circuit Breaker 600A 600V

Siemens
Price
Save $11,578.43
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price
Siemens LXD63L600 is a molded case circuit breaker designed for providing magnetic-only instantaneous protection against short-circuit faults in three-phase industrial power distribution systems. It features a 600V AC voltage rating and a 600A current rating within its LD frame, constructed with a compact bolt-on connection design measuring 8.661" x 12.992" x 6.716" (H x W x D) and weighing 15.201 lb. This UL-listed device is engineered for reliable operation in ambient temperatures from -13°F to 158°F and offers an interrupting capacity of 35kA at 480V AC. It is typically applied in panelboards and switchboards where dedicated short-circuit protection is required, and it is important to note that terminal lugs are not included with the unit.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Magnetic-Only Protection (Instantaneous Trip)
  • Voltage Rating: 600V AC
  • Current Rating: 600A
  • Dimensions: 8.661" H x 12.992" W x 6.716" D
  • Standards: UL Listed
  • Applications: Industrial power distribution, panelboards, switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • AIC Rating: 35kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Magnetic (Instantaneous)
  • Functions: I - Instantaneous
  • Frame Size: LD Frame
  • Trip Type: Magnetic
  • Temp Rating: -13°F to 158°F
  • Certification: UL Listed
  • Family: Sentron Series
  • Weight: 15.201 lb


Product Identification
  • UPC: 783643214316
  • GTIN: 00783643214316
