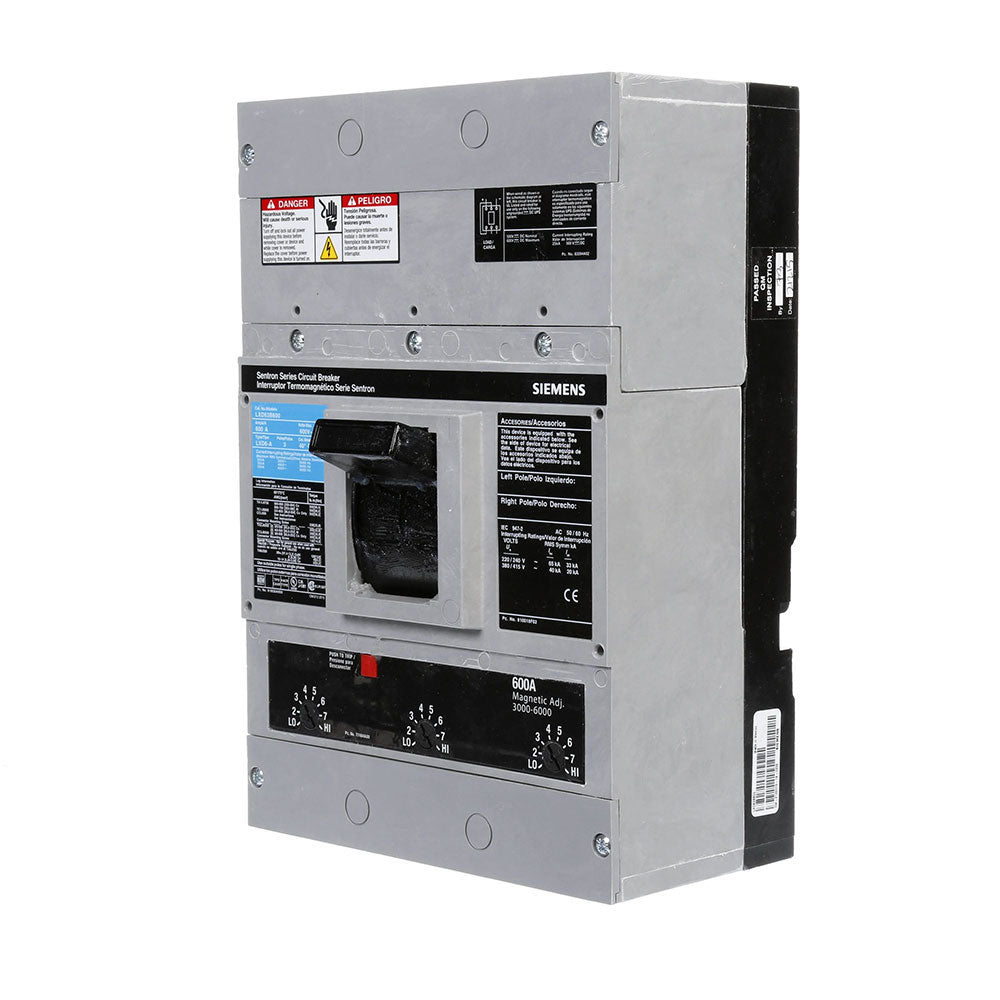

Siemens LXD63H600 - Molded Case Circuit Breaker 600A 600V
Siemens LXD63H600 - Molded Case Circuit Breaker 600A 600V

Siemens LXD63H600 - Molded Case Circuit Breaker 600A 600V

Siemens
Price
Save $17,084.70
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price
Siemens LXD63H600 is a molded case circuit breaker designed for providing instantaneous magnetic-only protection against short-circuit faults in three-phase industrial power distribution systems. It features a 600V AC voltage rating and a 600A current rating within a compact LD frame, constructed with a robust bolt-on connection for secure installation. The breaker is UL Listed and operates reliably across a temperature range of -25°C to 70°C (-13°F to 158°F), offering an interrupting capacity of 35kA at 480V AC. Its typical applications include protecting feeders and branch circuits in industrial panels and switchboards where selective coordination and high-fault current interruption are required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, LXD Type, Instantaneous Trip (Magnetic Only)
  • Voltage Rating: 600V AC
  • Current Rating: 600A
  • Dimensions: 8.661" H x 12.992" W x 6.714" D (220mm x 330mm x 170.5mm)
  • Standards: UL Listed
  • Applications: Industrial power distribution, feeder and branch circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • AIC Rating: 35kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Magnetic (Instantaneous Trip)
  • Functions: Instantaneous Trip
  • Frame Size: LD Frame
  • Trip Type: Magnetic Instantaneous
  • Temp Rating: -25°C to +70°C (-13°F to 158°F)
  • Weight: 18.55 lb (8.41 kg)
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643214323
  • GTIN: 00783643214323
