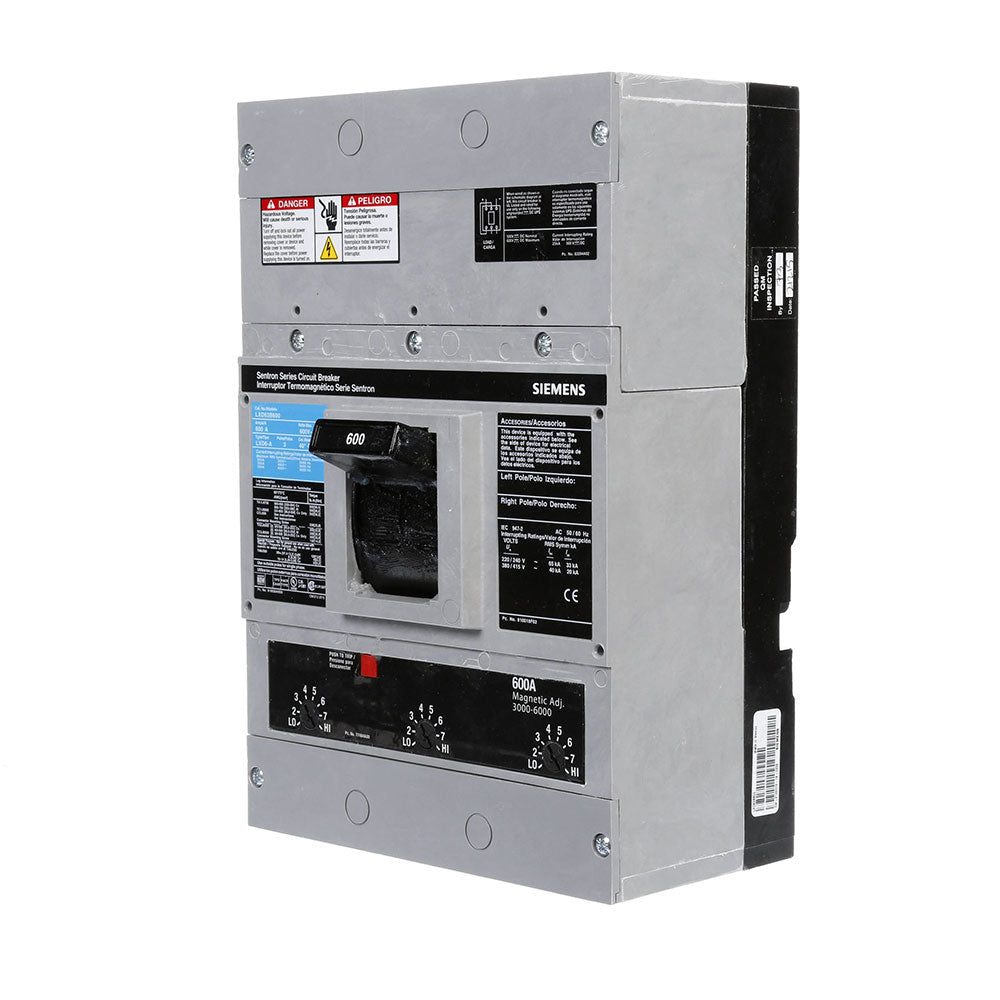

Siemens LXD63B600 - Molded Case Circuit Breaker 600A 600V
Siemens LXD63B600 - Molded Case Circuit Breaker 600A 600V

Siemens LXD63B600 - Molded Case Circuit Breaker 600A 600V

Siemens
Price
Save $20,019.75
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price
Siemens LXD63B600 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in demanding three-phase industrial power distribution systems. It features a 600A current rating and a 600V AC voltage rating, housed within a compact LD frame with dimensions of 8.661" x 12.992" x 6.708" and a weight of 18.387 lb. This thermal-magnetic, bolt-on breaker offers comprehensive protection through long-time, short-time, and instantaneous trip functions and is UL Listed, ensuring compliance with industry safety standards for applications such as panelboards, switchboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic Protection with Long Time, Short Time, and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 600A
  • Frame Size: LD Frame
  • Poles: 3
  • Phase: 3
  • AIC Rating: 35kA @ 480V
  • Connection: Bolt-On
  • Certification: UL Listed
  • Operating Temperature: -13°F to 158°F (-25°C to 70°C)
  • Dimensions: 8.661" H x 12.992" W x 6.708" D (220mm x 330mm x 170mm)
  • Weight: 18.387 lb (8.34 kg)
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643213760
  • GTIN: 00783643213760
