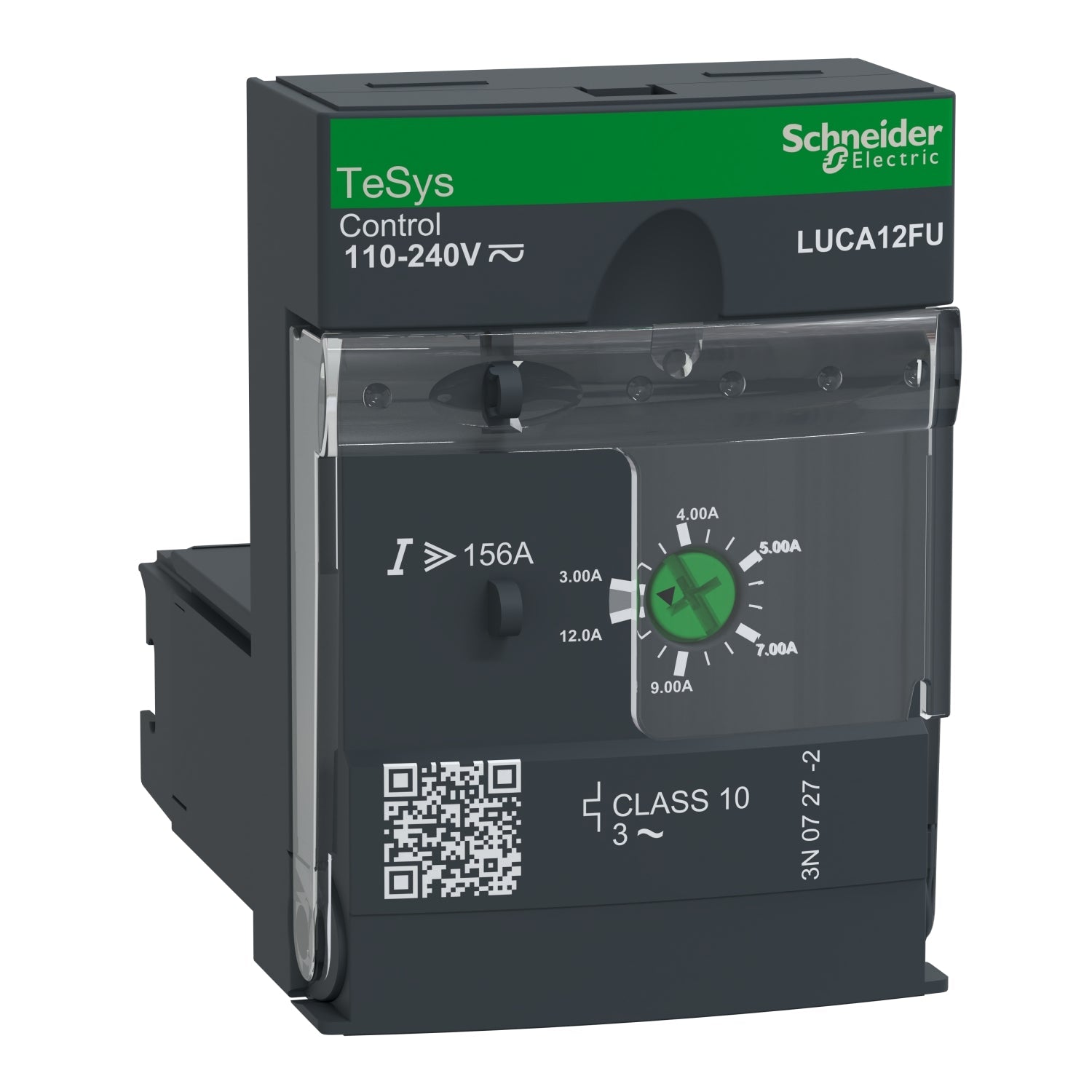

Schneider Electric LUCA12FU - Motor Starter 12A 600V
Schneider Electric LUCA12FU - Motor Starter 12A 600V

Schneider Electric LUCA12FU - Motor Starter 12A 600V

Schneider Electric
Price
Save $15.87
/
Condition
  • Low stock - 9 items left
  • Backordered, shipping soon
Call for Price
Schneider Electric LUCA12FU is a solid-state motor starter control unit designed for comprehensive motor protection in 3-phase applications. It provides LSI (Long-Time, Short-Time and Instantaneous) protection functions and is rated for 600V with a 12A current capacity, supporting a full load current adjustment range from 3 to 12 A. The unit features a 3-pole, bolt-on connection design with a compact footprint of 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) and weighs 0.282 lb, operating with a coil voltage range of 110-220 VDC. It is certified to CSA C22.2 No 60947-4-1, EN 60947-6-2, IEC 60947-6-2, REACH, RoHS, and UL Listed 60947-4-1 standards, with a NEMA rating of 1 and an AIC rating of 65kA at 480V. This motor starter is suitable for industrial motor control and protection applications requiring reliable overload and short circuit protection in 3-phase systems.

Key Features & Specifications
  • Type: Motor Starter
  • Functions: LSI - Long-Time, Short-Time and Instantaneous
  • Voltage Rating: 600V
  • Current Rating: 12A
  • Adjustable Current Range: 3-12 A
  • Poles: 3
  • Phase: 3
  • Connection: Bolt-On
  • Coil Voltage: 110-220 VDC
  • Protection: Solid State
  • AIC Rating: 65kA@480V
  • Nema Rating: 1
  • Dimensions: 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
  • Weight: 0.282 lb
  • Mounting Type: Front side mount, plug-in
  • Trip Unit: Electronic thermal overload
  • Certification: CSA C22.2 No 60947-4-1, EN 60947-6-2, IEC 60947-6-2, REACH, RoHS, UL Listed 60947-4-1
  • Country of Origin: France


Product Identification
  • UPC: 3389110364033
  • GTIN: 03389110364033
