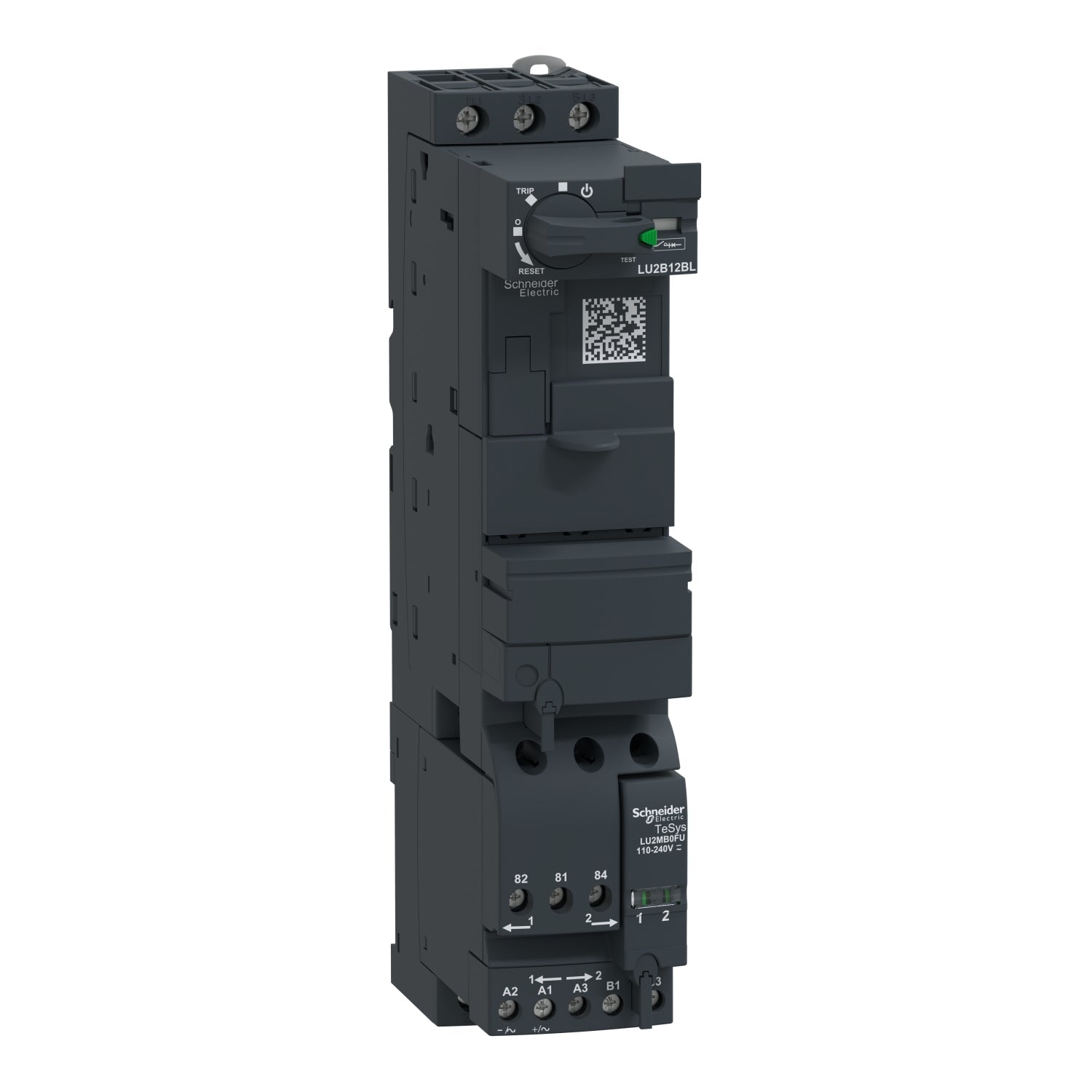

Schneider Electric LU2B12BL - Reversing Motor Starter 12A 24VDC
Schneider Electric LU2B12BL - Reversing Motor Starter 12A 24VDC

Schneider Electric LU2B12BL - Reversing Motor Starter 12A 24VDC

Schneider Electric
Price
Save $71.23
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
The Schneider Electric LU2B12BL is a reversing motor starter designed for protecting and controlling three-phase motors in industrial applications. It is rated for a maximum coil voltage of 24 VDC and a continuous current rating of 12A, ensuring reliable switching and overload protection. This compact component measures 8.8 inches in height, 1.8 inches in width, and 5.0 inches in depth, weighing 2.848 lb, and features a 3-pole configuration for robust motor control. It complies with multiple international standards including EN/IEC 60947-6-2, UL 60947-4-1 with phase barrier, CSA C22.2 No 60947-4-1, CE, CCC, EAC, ASEFA, ATEX, and Marine certifications, and operates within a temperature range of -13°F to 158°F (-25°C to 70°C). Typical applications include reversing motor control in conveyors, hoists, and other industrial machinery requiring forward and reverse operation.

Key Features & Specifications
  • Type: Reversing motor starter
  • Voltage Rating: 24 VDC (coil)
  • Current Rating: 12A
  • Dimensions: 8.8 in (224 mm) x 1.8 in (45 mm) x 5.0 in (126 mm) (H x W x D)
  • Standards: EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine
  • Applications: Reversing motor control for conveyors, hoists, and industrial machinery
  • Poles: 3
  • Coil Voltage Maximum: 24 VDC
  • Temp Rating: -13°F to 158°F (-25°C to 70°C)
  • Weight: 2.848 lb
  • Country of Origin: France


Product Identification
  • UPC: 785901519881
  • GTIN: 03389110371277
