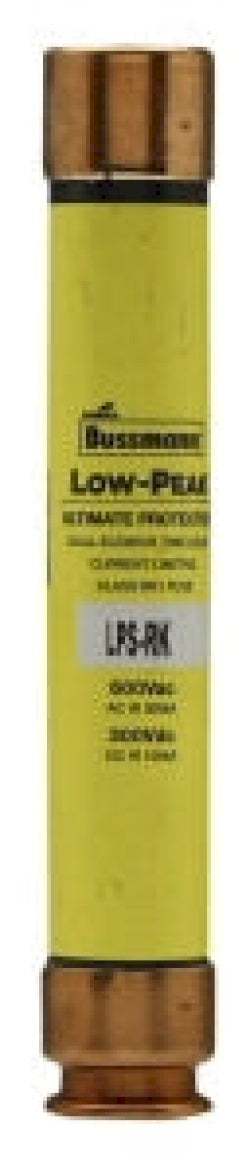

Bussmannn LPS-RK-25SP - Low-Peak Time-Delay Fuse 25A 600V (300kA AIC)

Bussmannn LPS-RK-25SP is a Low-Peak time-delay fuse designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 25A current rating with a 300kA interrupting capacity, housed in a compact 5-inch body with a 0.81-inch diameter and RK1 class rating. The fuse utilizes a single-barrel construction with time-delay characteristics for motor circuit protection, meeting UL, CSA, and CE standards for safety compliance. Typical applications include motor branch circuits, transformers, and power distribution equipment requiring high fault current protection.

Key Features & Specifications

• Type: LPS-RK time-delay fuse with single-barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 25A
• Dimensions: 5" length x 0.81" diameter
• Weight: 1 lb
• Standards: UL (E4273), CSA (53787), CE, CSA C22.2 No. 248.12
• Applications: Motor circuits, transformers, power distribution
• Class Rating: RK1
• AIC rating: 300kA@600V
• Certification: UL Special Purpose Guide JFHR/JDDZ, CSA Class 1422-02
• Country of Origin: Mexico

Product Identification

• UPC: 051712548359
• GTIN: 00051712548359
