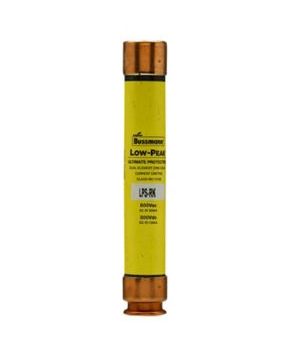

Bussmann LPS-RK-1/2SP - Low Voltage Fuse 1A 600V (300kA AIC RK1 Class)

Bussmann LPS-RK-1/2SP is a low voltage fuse designed for providing high-interrupting capacity protection in industrial electrical systems. This RK1 class fuse features a 1A current rating and 600V voltage rating with an impressive 300kA interrupting capacity at 600V for reliable circuit protection. The single-barrel construction measures 5 inches in length with a 0.81-inch diameter and weighs 2.6 lb, engineered for durable performance in demanding environments. It complies with multiple industry standards including UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, and CSA C22.2 No. 248.12 certifications. Typical applications include motor circuit protection, transformer protection, and industrial control panel circuits where high fault current interruption is critical.

Key Features & Specifications

• Type: Low Voltage Fuse, RK1 Class, Single Barrel Construction
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 5 inches length, 0.81 inches diameter
• Weight: 2.6 lb
• Standards: CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2 No. 248.12
• Applications: Motor circuit protection, transformer protection, industrial control panels
• AIC rating: 300kA@600V
• Class Rating: RK1
• Barrels: 1
• Certification: CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2 No. 248.12
• Country of Origin: Mexico

Product Identification

• UPC: 05171254805
• GTIN: 00051712548052
