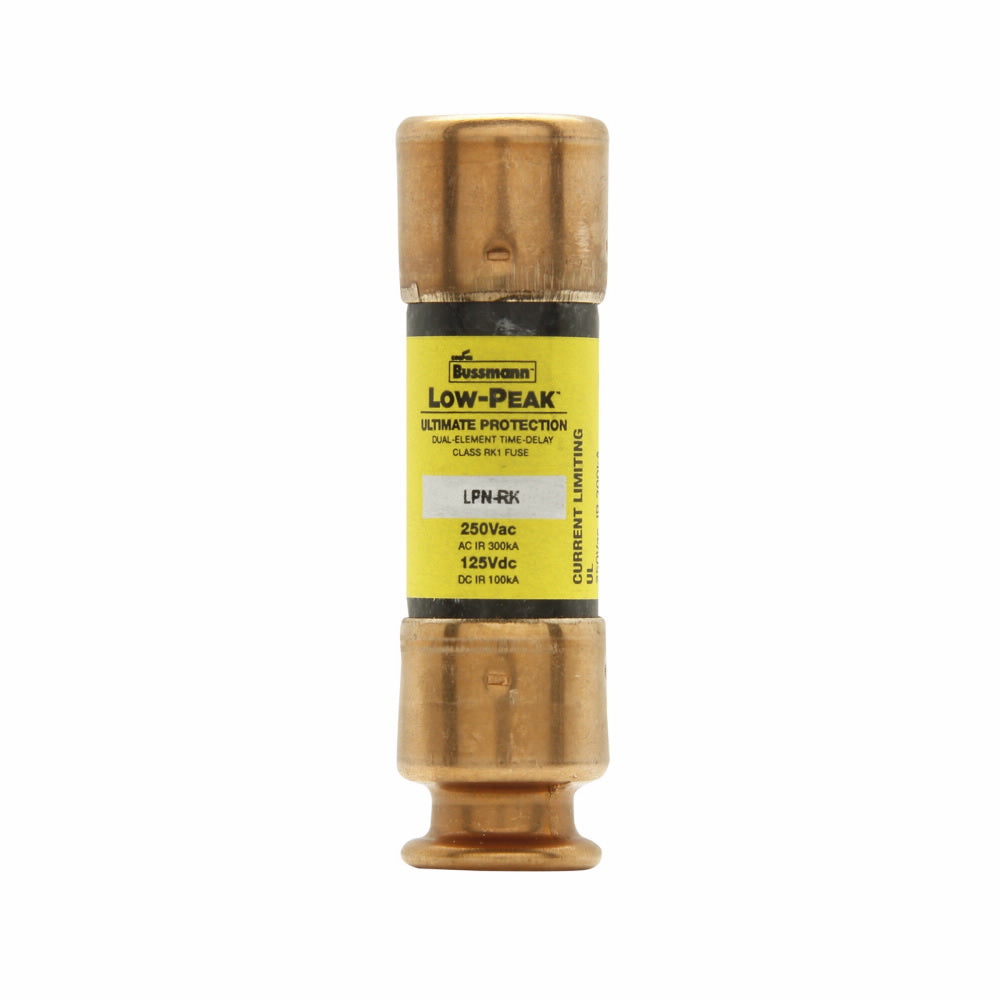

Bussmann LPN-RK-5SP - RK1 Time-Delay Fuse 5A 250V

Bussmann
Price
Save $501.66
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann LPN-RK-5SP is a low-voltage, time-delay fuse designed for branch circuit protection in industrial and commercial electrical systems. It features a 5A current rating and a 250V AC voltage rating, providing reliable overload and short-circuit interruption. The fuse is constructed as a single-barrel, 1/4" x 1-1/4" (0.56 in x 2 in) cylindrical device with a 1.61-inch diameter, weighing 0.049 lb, and is compliant with UL and CSA standards including UL Guide JFHR/JDDZ and CSA C22.2 No. 248.12. Its 300kA interrupting rating at 250V and RK1 class designation make it suitable for protecting motor circuits, transformers, and feeders where high fault currents and inrush tolerance are required.

Key Features & Specifications
  • Type: Low Voltage, Time-Delay, Single Barrel, RK1 Class Fuse
  • Voltage Rating: 250V AC
  • Current Rating: 5A
  • Dimensions: 2 in (L) x 0.56 in (H) x 0.56 in (W)
  • Diameter: 1.61 in
  • Weight: 0.049 lb
  • Standards: CE, UL (Special Purpose Guide JFHR, Guide JDDZ, File E4273), CSA (Class 1422-02, File 53787, CSA C22.2 No. 248.12)
  • AIC Rating: 300kA @ 250V
  • Class Rating: RK1
  • Barrels: 1
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712538237
  • GTIN: 00051712538237
