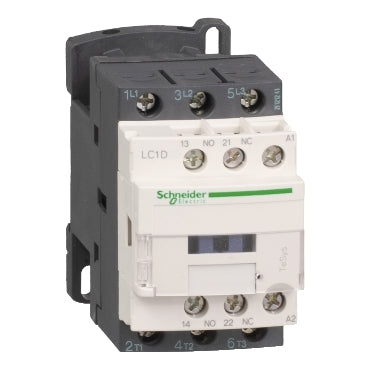

Schneider Electric LC1D12W7 - 3-Pole Contactor 12A 600V AC
Schneider Electric LC1D12W7 - 3-Pole Contactor 12A 600V AC

Schneider Electric LC1D12W7 - 3-Pole Contactor 12A 600V AC

Schneider Electric
Price
Save $-86.63
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric LC1D12W7 is a three-pole contactor from the TeSys D family designed for magnetic motor control and switching in industrial applications. It provides reliable operation with a 12A current rating and a 600V AC voltage rating, featuring a 277V AC coil and a bolt-on connection for secure installation. The unit is constructed with a compact footprint measuring 86 mm in depth, 45 mm in width, and 77 mm in height, and it weighs 0.781 lb. It complies with major international standards including UL 508, IEC 60947, and CSA C22.2 No 14, ensuring suitability for global use. Typical applications include controlling three-phase motors, pumps, and compressors in manufacturing and HVAC systems.

Key Features & Specifications
  • Type: TeSys D LC1D Series, 3-Pole Contactor with Instantaneous Function, Magnetic Only Protection
  • Voltage Rating: 600V AC
  • Current Rating: 12A
  • Phase: 3
  • Coil Voltage: 277V AC
  • Connection: Bolt-On
  • AIC Rating: 18kA @ 480V
  • Dimensions: 86 mm (D) x 45 mm (W) x 77 mm (H) / 3.39 in (D) x 1.77 in (W) x 3.03 in (H)
  • Weight: 0.781 lb
  • Standards: UL 508, IEC 60947-4-1, IEC 60947-5-1, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, CCC, GOST, BV, DNV, GL, LROS, RINA
  • Applications: Motor Control, Pumps, Compressors, Industrial Machinery


Product Identification
  • GTIN: 03389110290189
