Bussmann
Price
Save $803.92
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

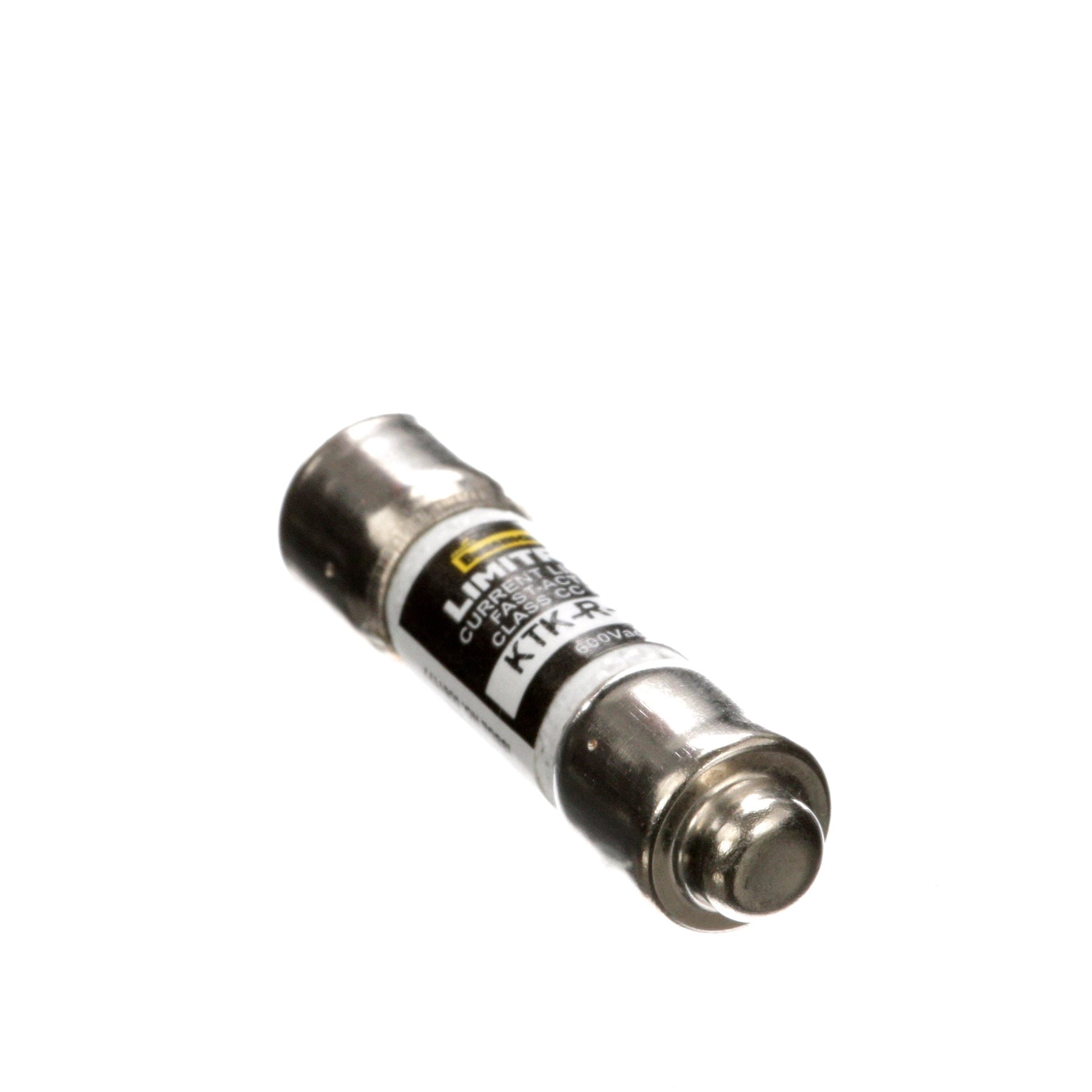

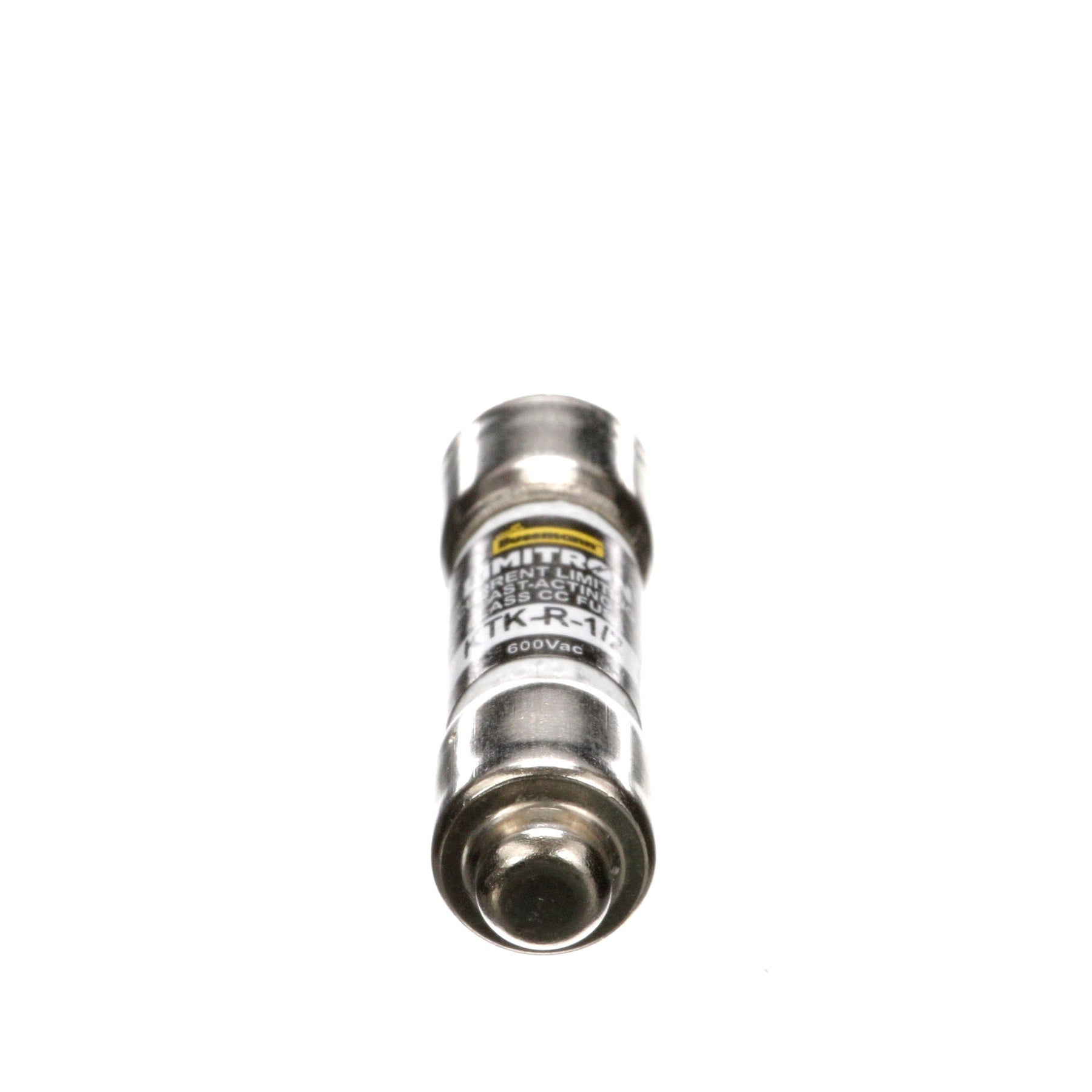

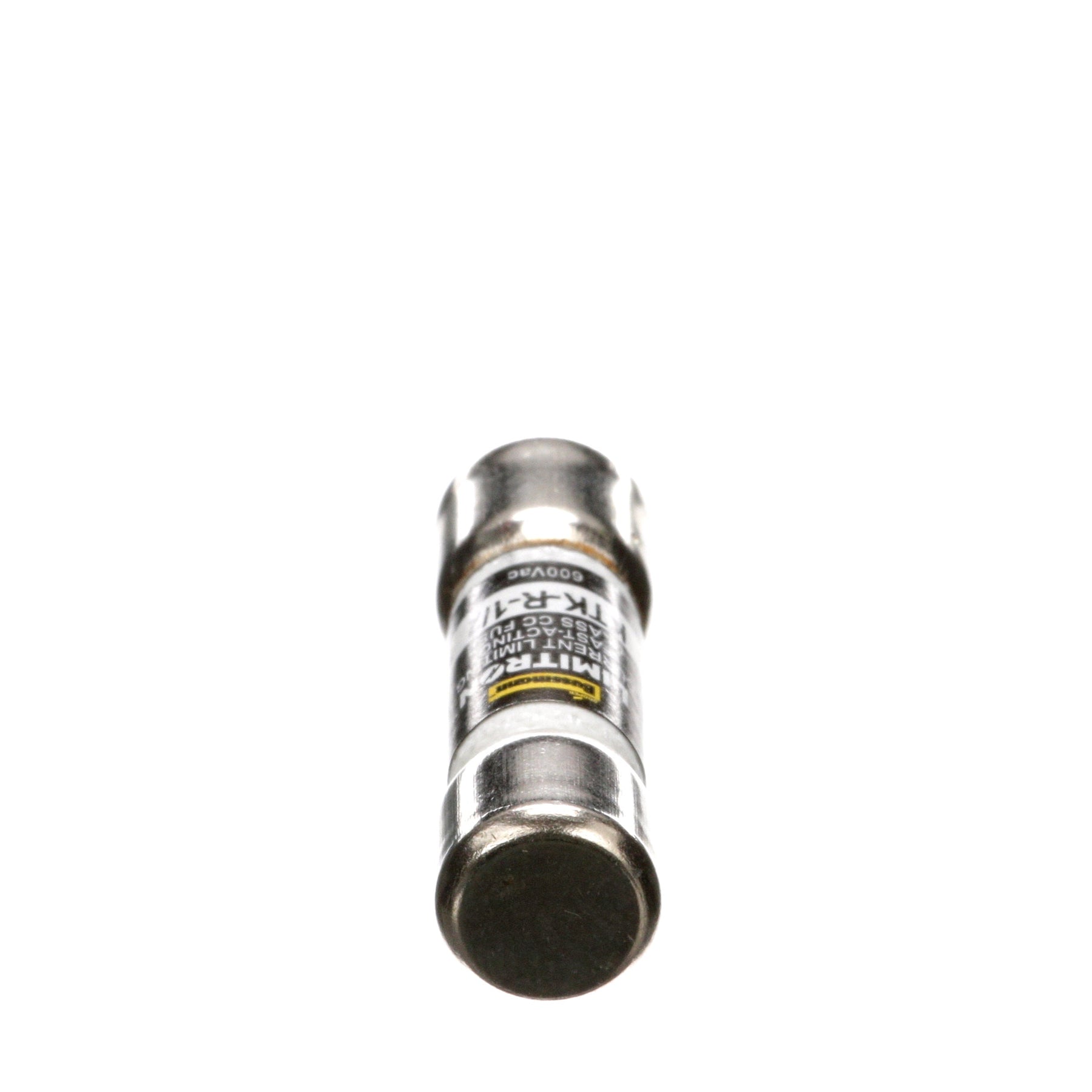

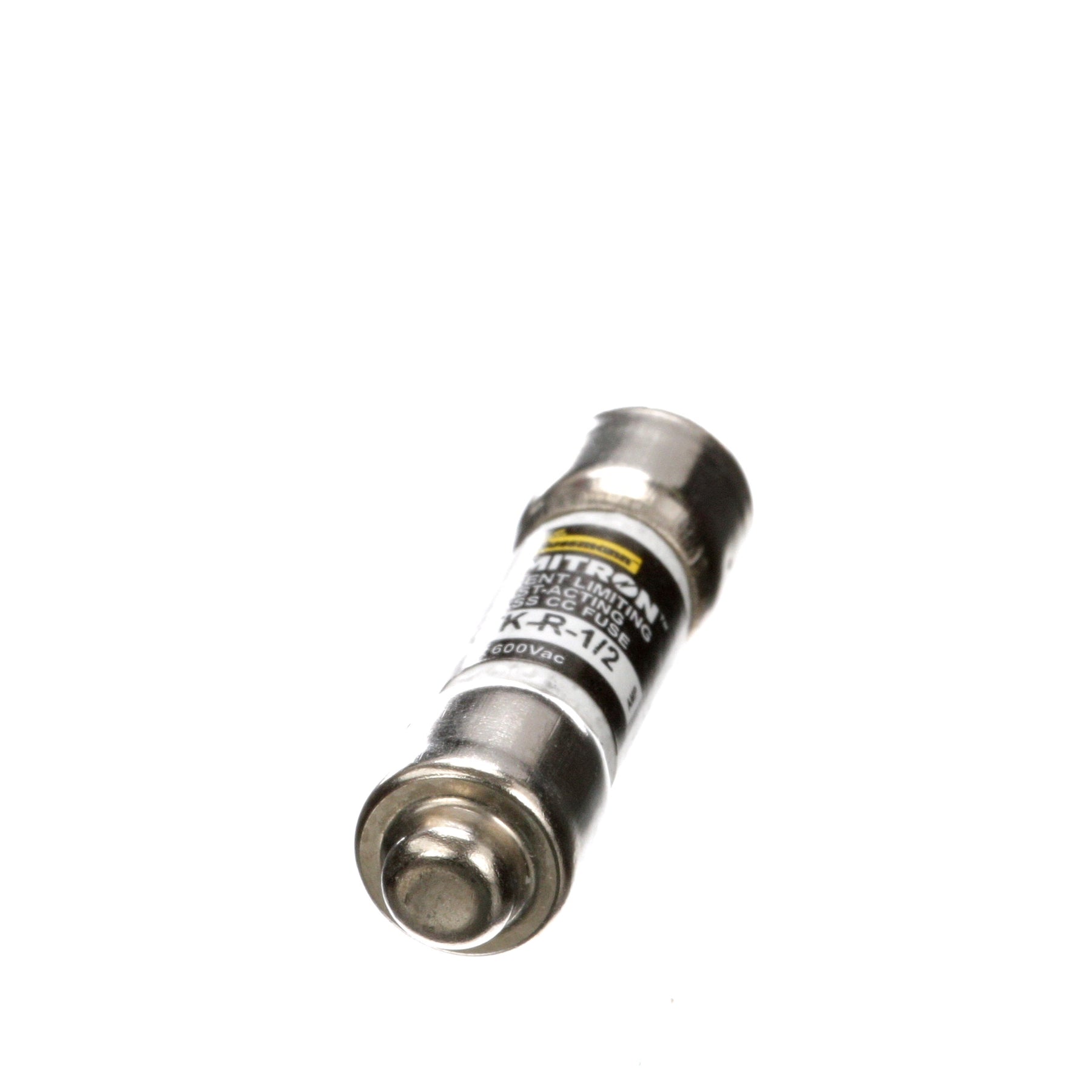

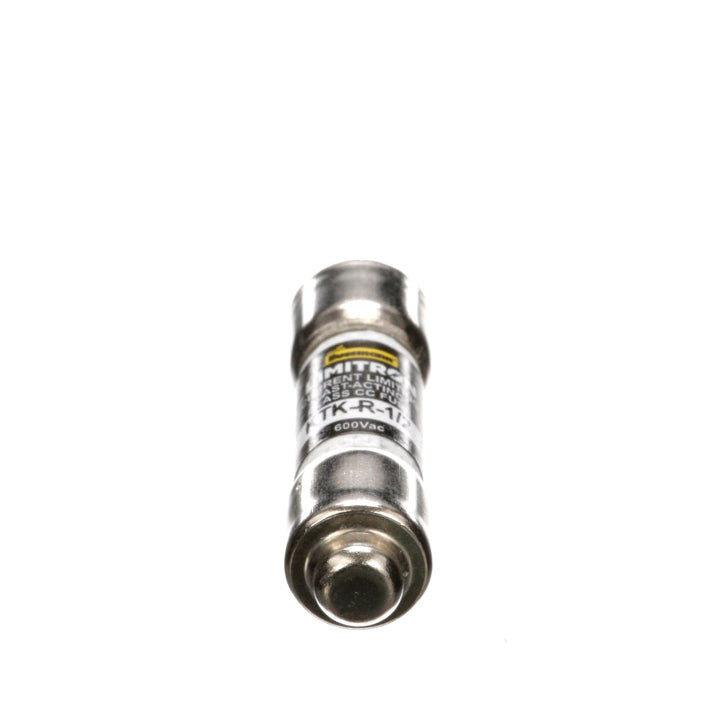

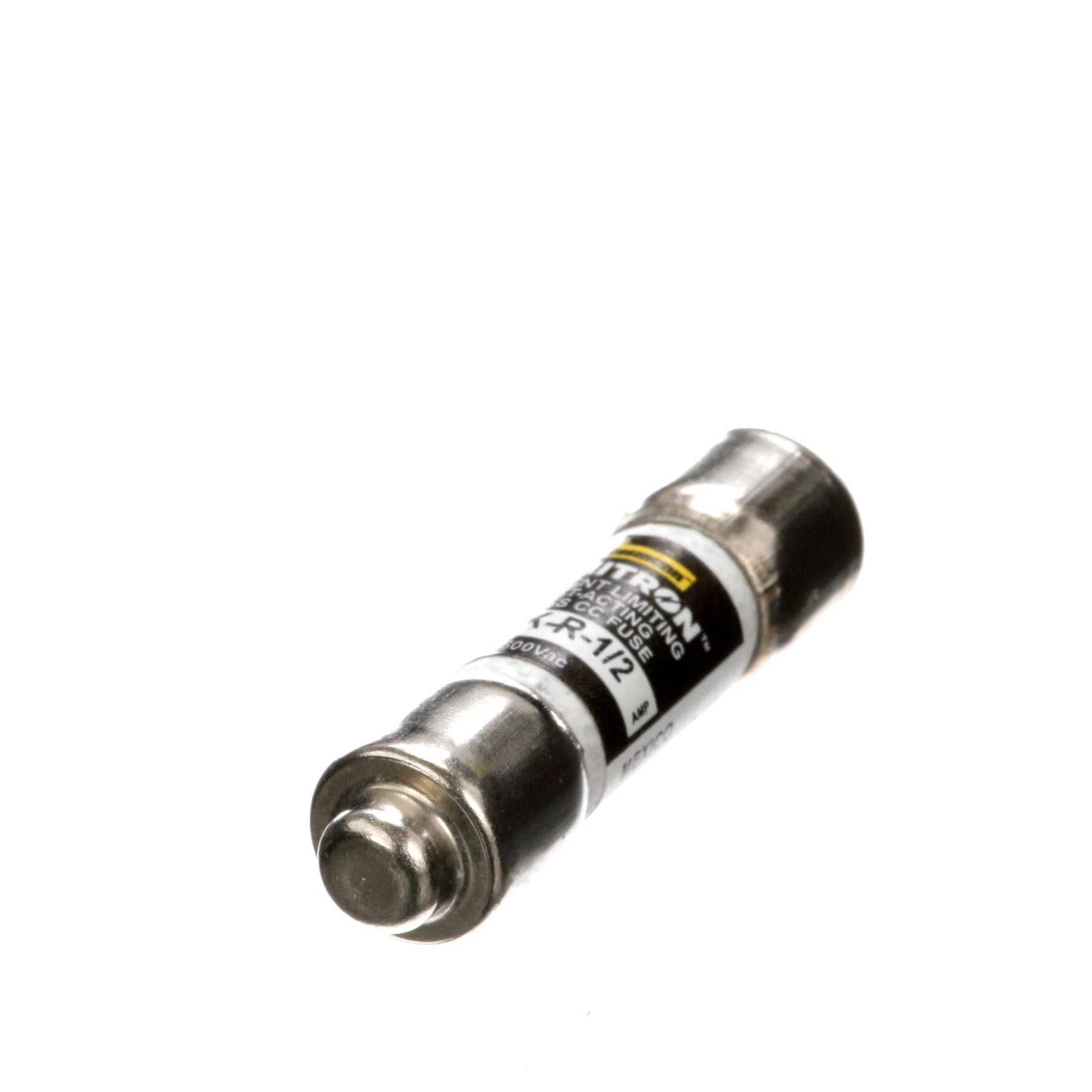

Bussmann KTK-R-1/2 is a low-voltage, current-limiting fuse designed for protecting control circuits, transformers, and small motors. It is rated for 600V AC/DC systems with a 1A current rating and features a fast-acting, 200kA interrupting rating at 600V for reliable short-circuit protection. The fuse is constructed as a single-barrel, 1/2 x 1-1/2 inch device with a 0.41-inch diameter, meeting the compact CC class physical dimensions. It is certified to UL 248-4, CSA Class 1422-02, and CE standards, ensuring compliance for industrial use in panelboards, control cabinets, and motor starter applications.

Key Features & Specifications
  • Type: Fast-acting, current-limiting, low-voltage fuse (KTK-R/CC Class)
  • Voltage Rating: 600V AC/DC
  • Current Rating: 1A
  • Dimensions: 1.5 in L x 0.41 in H x 0.41 in W (1/2 x 1-1/2 in)
  • Standards: UL 248-4, CSA Class 1422-02, CE
  • Applications: Protection of control circuits, transformers, and small motors
  • AIC rating: 200kA @ 600V
  • Class Rating: CC
  • Barrels: 1
  • Diameter: 0.41 in
  • Certification: CE/UL-248-4 Guide JDDZ/CSA Class 1422-02


Product Identification
  • UPC: 051712420563
  • GTIN: 00051712420563
