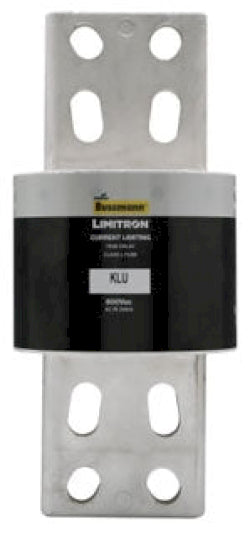

Bussmannn KLU-3000 - Class L Fuse 3000A (200kA@600V Interrupt Rating)

Bussmannn KLU-3000 is a Class L bolt-in fuse designed for high-current circuit protection in industrial power distribution systems. It features a 600V AC voltage rating and 3000A current capacity with a 200kA interrupting rating at 600V for reliable fault protection. The fuse measures 10.75" x 5" x 5" (LxWxH) with a 5" diameter barrel and 20 lb weight, constructed for durable bolt-in installation. Compliant with UL/CSA standards, this LIMITRON series fuse is engineered for switchgear, motor control centers, and industrial power panels requiring Class L protection.

Key Features & Specifications

• Type: Class L current-limiting fuse with bolt-in connection
• Voltage Rating: 600V AC
• Current Rating: 3000A
• Dimensions: 10.75" L x 5" W x 5" H
• Standards: UL/CSA listed
• Applications: Industrial power distribution, switchgear, MCCs
• AIC rating: 200kA@600V
• Connection: Bolt-In
• Barrels: 1
• Class Rating: L
• Weight: 20 lb
• Diameter: 5"

Product Identification

• UPC: 051712497039
• GTIN: 00051712497039
