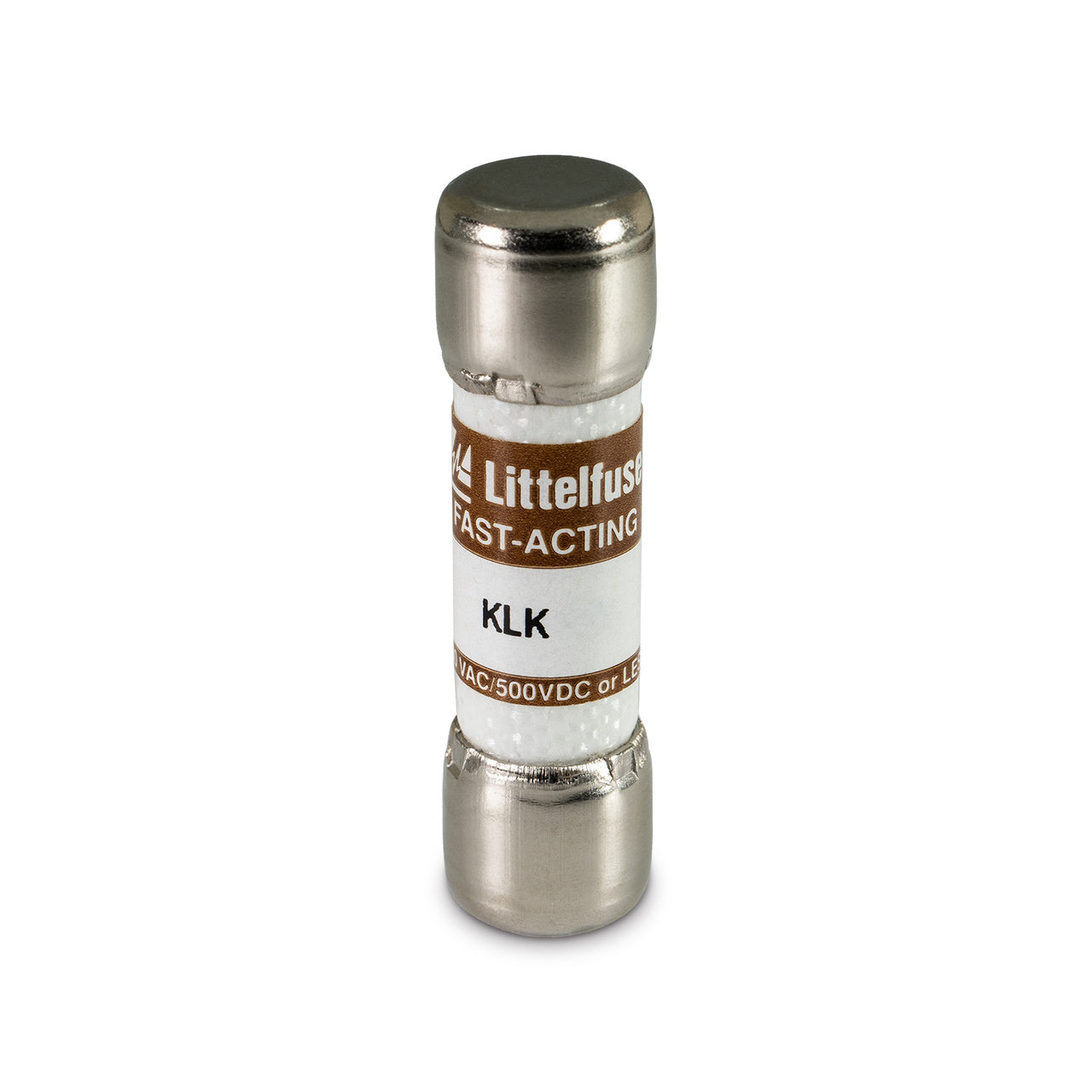

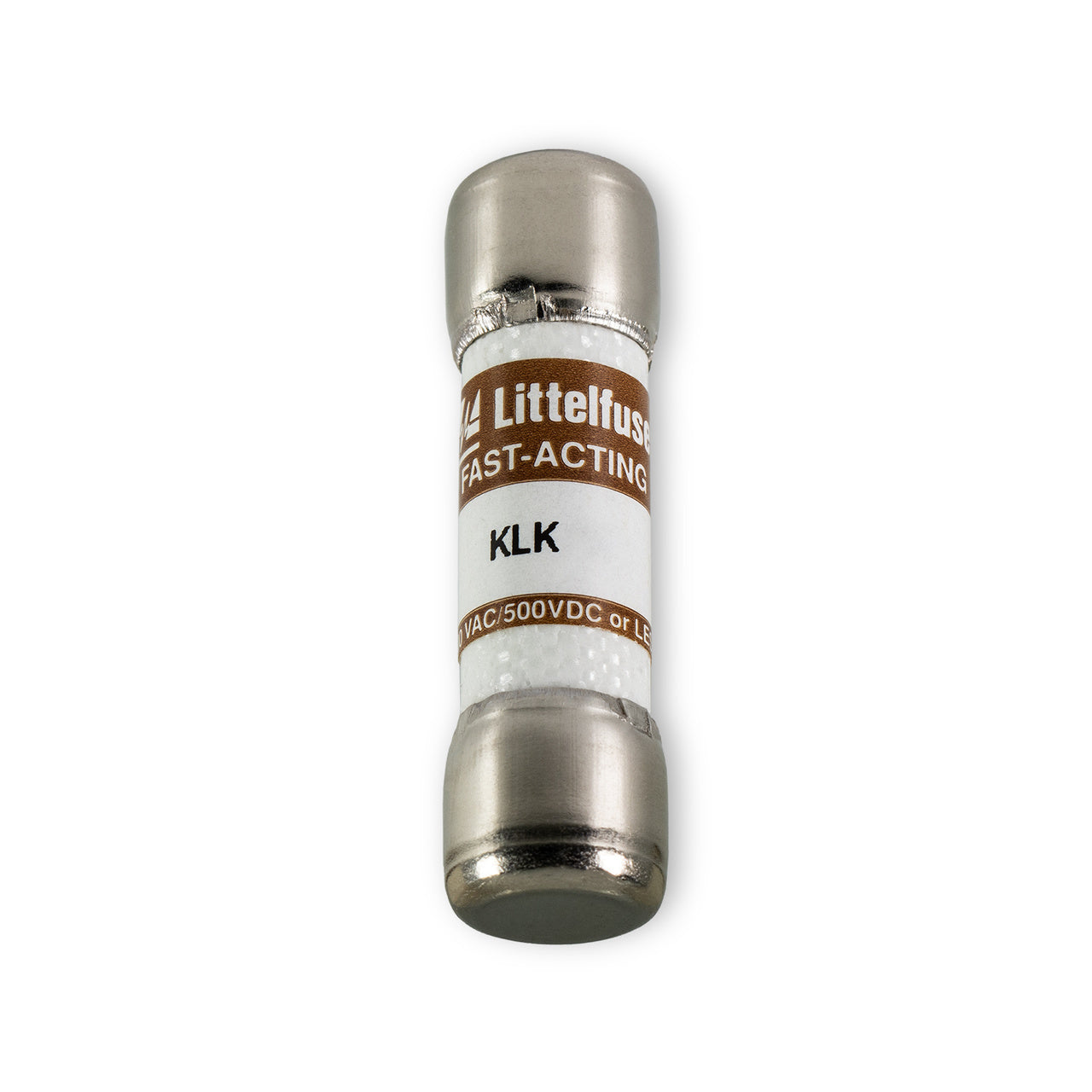

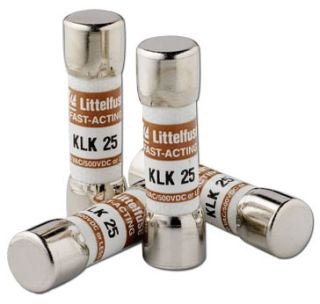

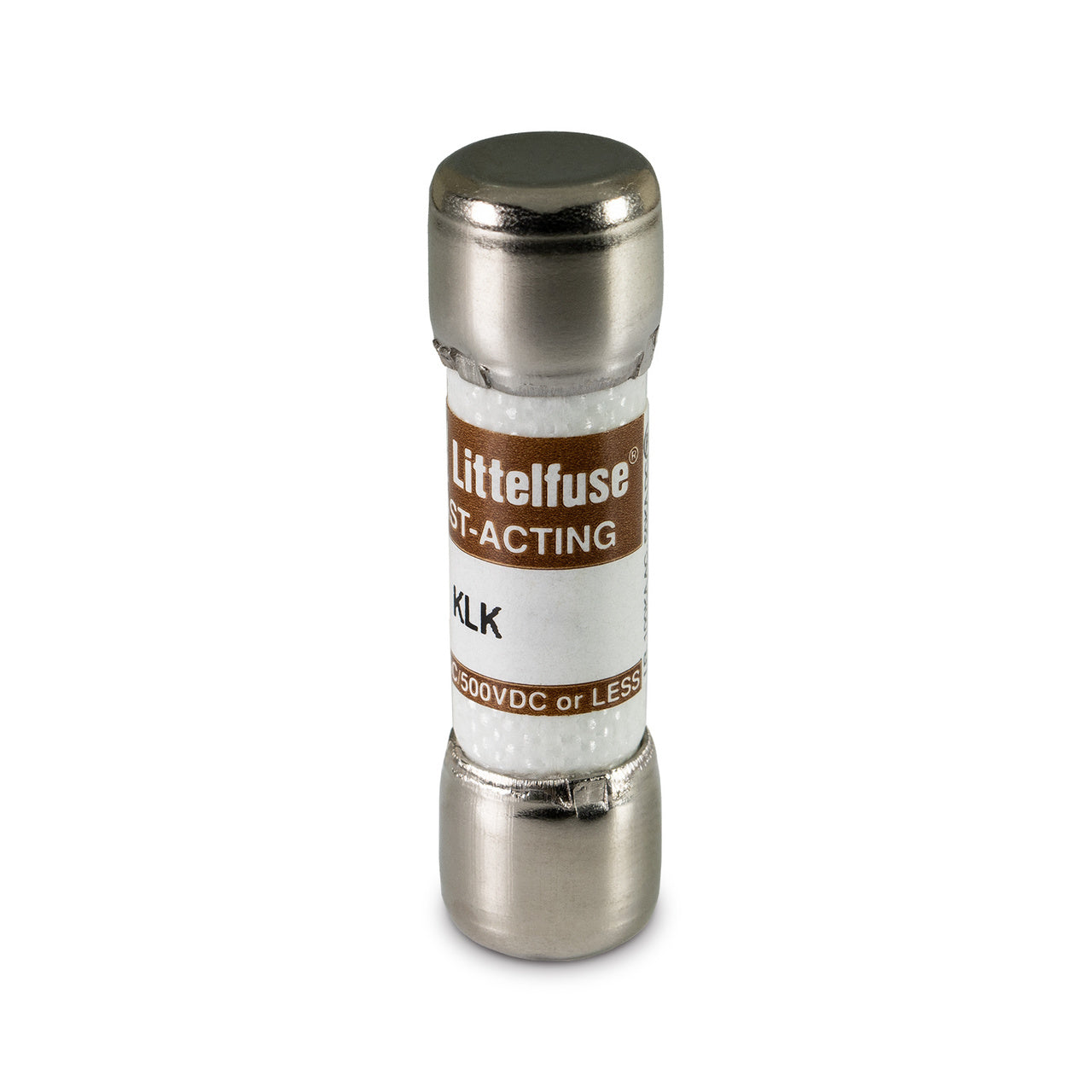

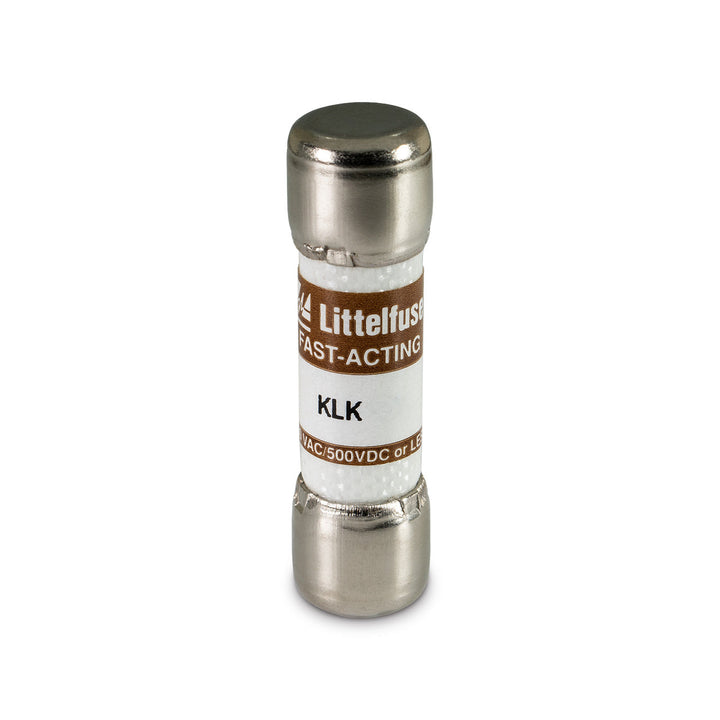

Littelfuse KLK015 - Fast-Acting Midget Fuse 15A 600V (100kA AIC)

Littelfuse KLK015 is a fast-acting midget fuse designed for overcurrent protection in low-voltage circuits. It features a 600V AC/DC voltage rating and 15A current rating with a compact ferrule connection design measuring 1-1/2 inches in length and 0.41 inches in diameter. The fuse offers 100kA interrupting capacity at 600V and complies with UL, CSA, CE, QPL, and RoHS standards for industrial applications including control panels, power supplies, and motor circuits.

Key Features & Specifications

• Type: Fast-acting midget fuse with single-barrel ferrule construction
• Voltage Rating: 600V AC/DC
• Current Rating: 15A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Standards: UL Listed, CSA Certified, CE, QPL, RoHS
• Applications: Industrial control panels, power supplies, motor protection
• Class Rating: Midget
• Connection: Ferrule
• Barrels: 1
• Velocity: FA (Fast Action)
• AIC rating: 100kA@600V
• Weight: 8.5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 079458250688
• GTIN: 00079458250688
