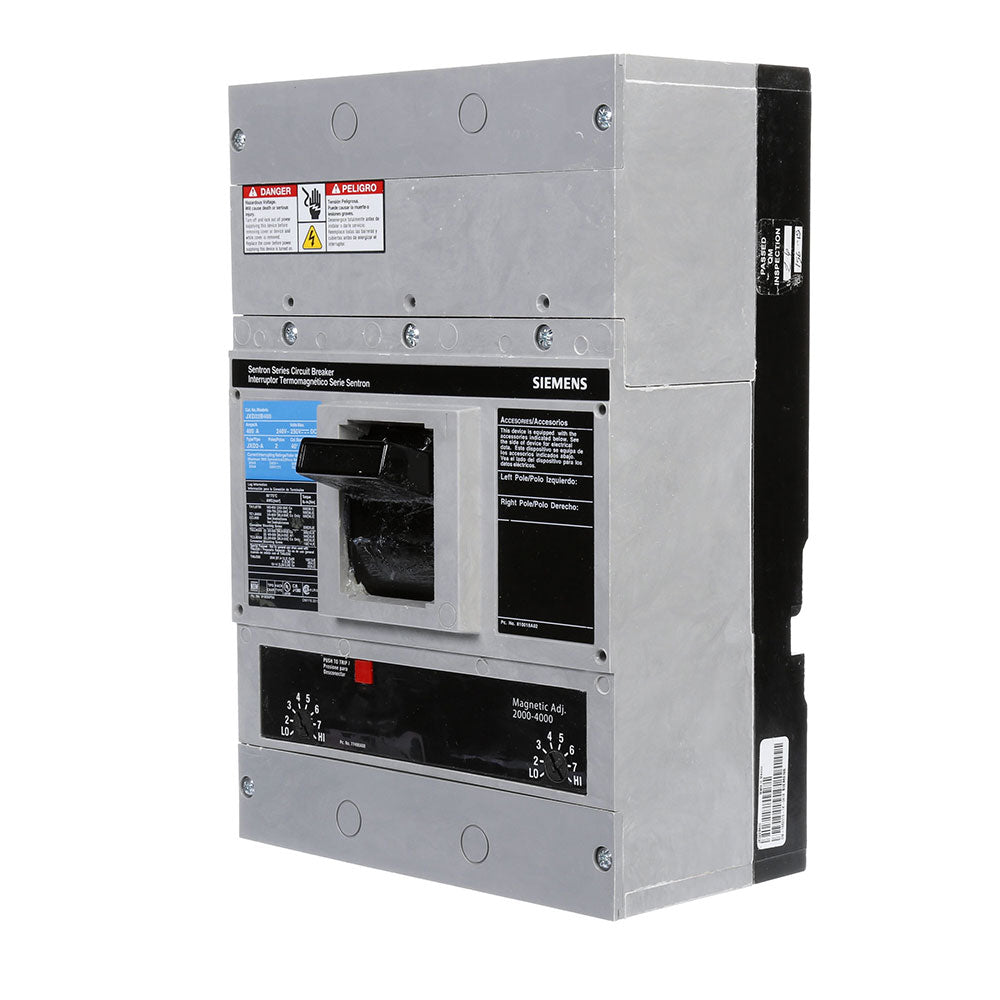

Siemens JXD62B250 - Molded Case Circuit Breaker 250A 600V
Siemens JXD62B250 - Molded Case Circuit Breaker 250A 600V

Siemens JXD62B250 - Molded Case Circuit Breaker 250A 600V

Siemens
Price
Save $4,840.24
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Siemens JXD62B250 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 250A current rating and a 600V voltage rating, housed within a compact JD frame with bolt-on connections and dimensions of 7.5" W x 11" H x 4" D. This thermal magnetic breaker complies with UL and IEC standards and is RoHS compliant, offering an interrupting capacity of 35kA at 480V AC. It is engineered for single-phase applications, operating effectively in ambient temperatures from -25°C to 70°C, making it suitable for panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 250A
  • Dimensions: 7.5" W x 11" H x 4" D (190.5mm x 279.4mm x 101.6mm)
  • Standards: RoHS Compliant
  • Applications: Industrial Panelboards, Switchboards, and Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • Amperage: 250A
  • AIC Rating: 35kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: JD Frame
  • Trip Type: Thermal Magnetic
  • Temp Rating: -25°C to +70°C (-13°F to 158°F)
  • Certification: UL, IEC
  • Mounting: Fixed
  • Hz: 50/60 Hz
  • Enclosure: Molded Case
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Bolt-On
  • Frequency Rating: 50/60 Hz
  • Phase Connection: Single-Phase
  • Standards: UL 489, IEC 60947-2
  • Compatible Frames: JD Frame
  • Installation Type: Fixed
  • Weight: 15.201 lb
  • Breaker Frame: JD Frame
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643213005
  • GTIN: 00783643213005
