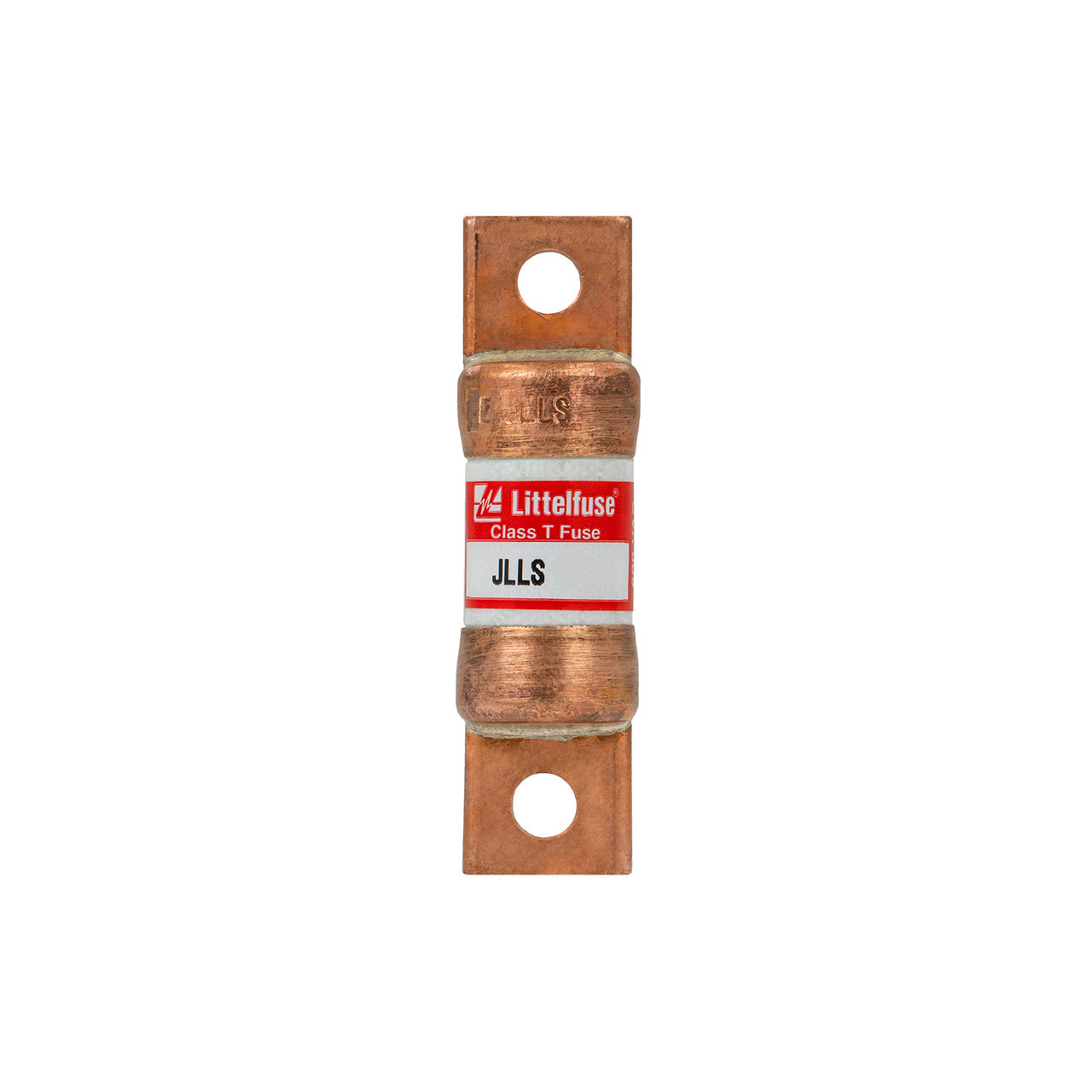

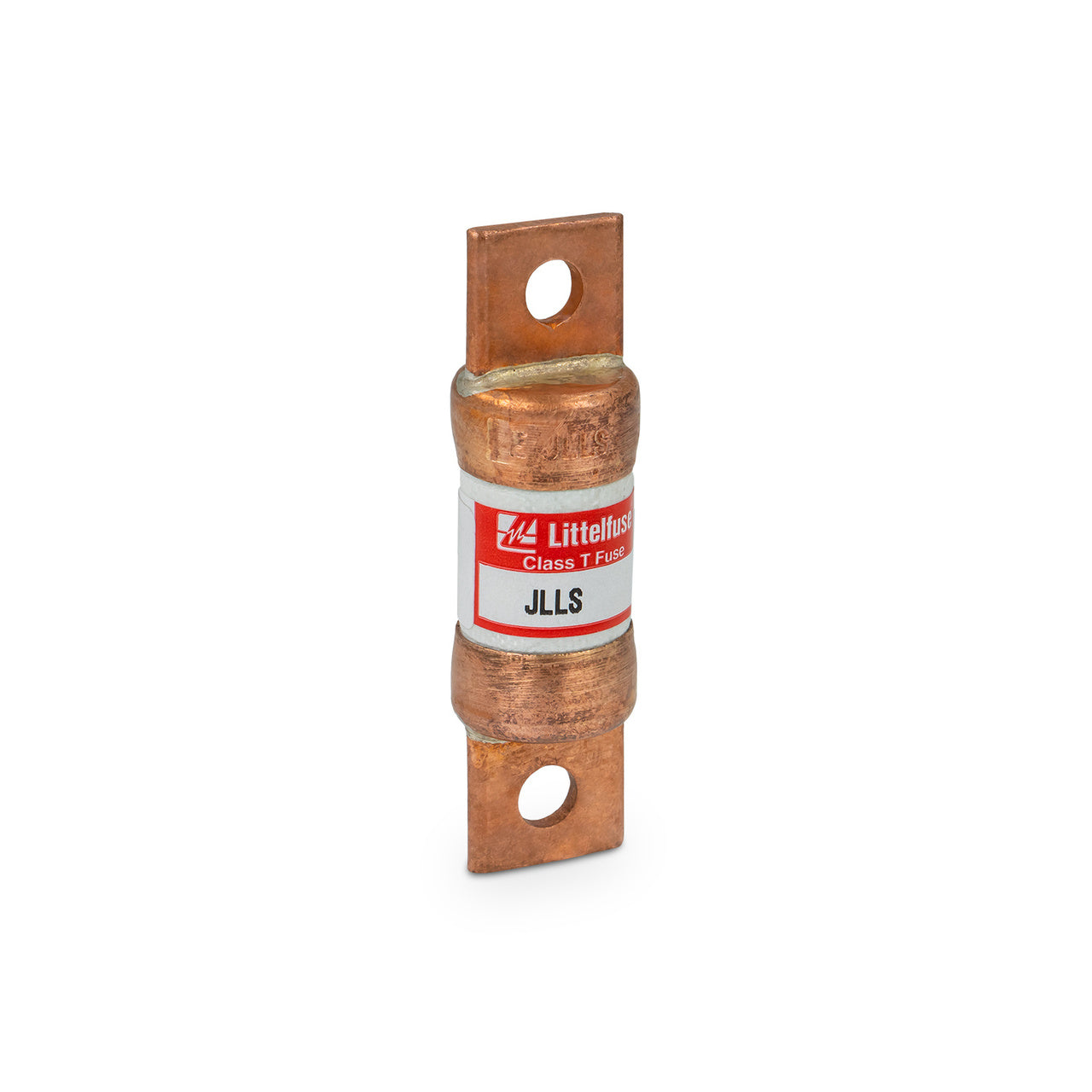

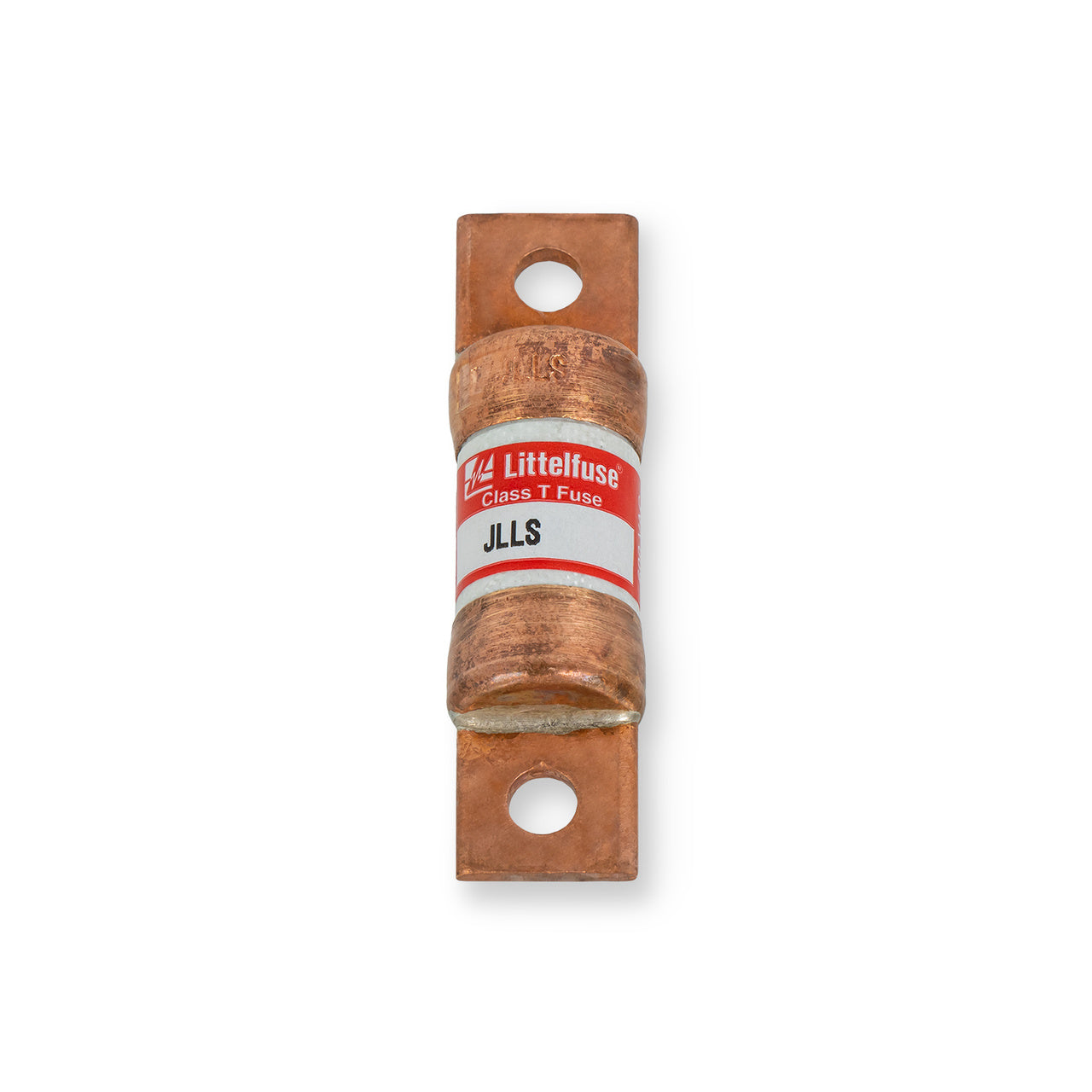

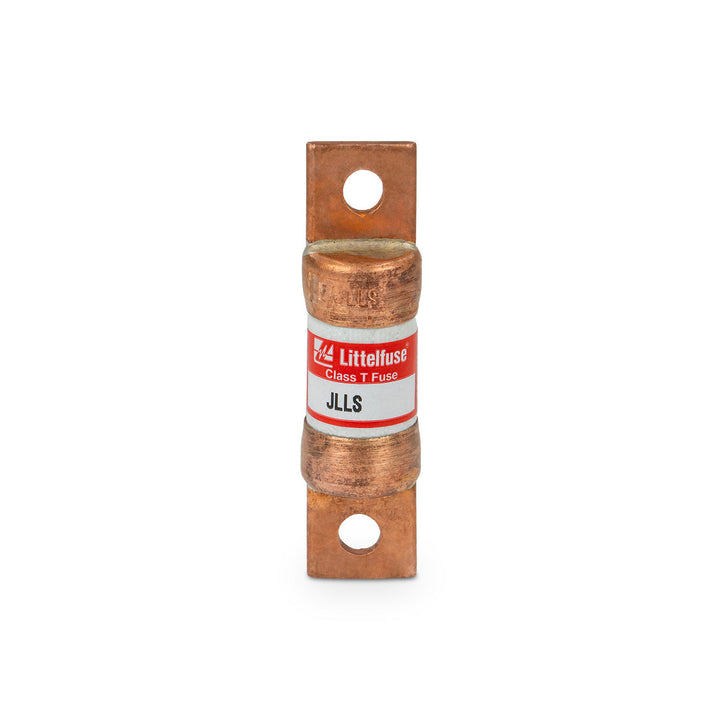

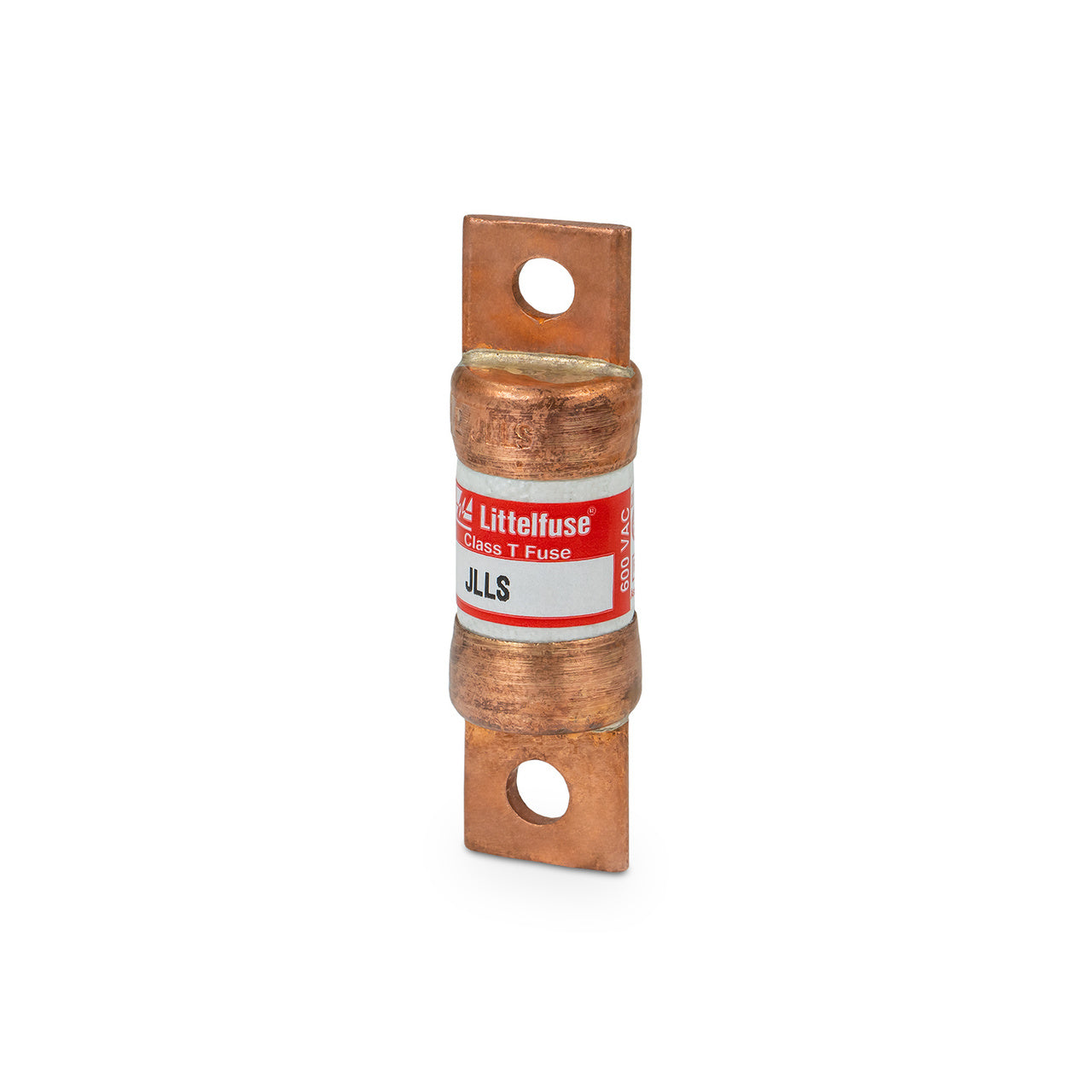

Littelfuse JLLS-070 is a time-delay, Class T low-voltage fuse designed to provide reliable circuit protection against short-circuits and overload conditions in power distribution systems. It features a 600V AC voltage rating with a 70A current rating, ensuring robust performance in demanding electrical environments. The fuse construction utilizes a single-barrel design with bolt-in termination, measuring 0.81 inches in diameter and weighing 5.19 lb for secure installation. This Powr-Gard series fuse complies with industry standards for high-interrupting capacity applications, achieving a 200kA interrupting rating at 600V. Typical applications include industrial control panels, motor branch circuits, and feeder circuits where high fault current protection is required.
Key Features & Specifications
Type: Time-delay, Class T low-voltage fuse with single-barrel construction and bolt-in connection
Voltage Rating: 600V AC
Current Rating: 70A
Dimensions: 0.81" diameter
Standards: UL/CSA certified for high-interrupting capacity applications
Applications: Industrial control panels, motor branch circuits, feeder circuits
AIC Rating: 200kA@600V
Connection: Bolt-In
Barrels: 1
Class Rating: T
Weight: 5.19 lb
Product Identification
UPC: 07945819079
GTIN: 00079458190793
