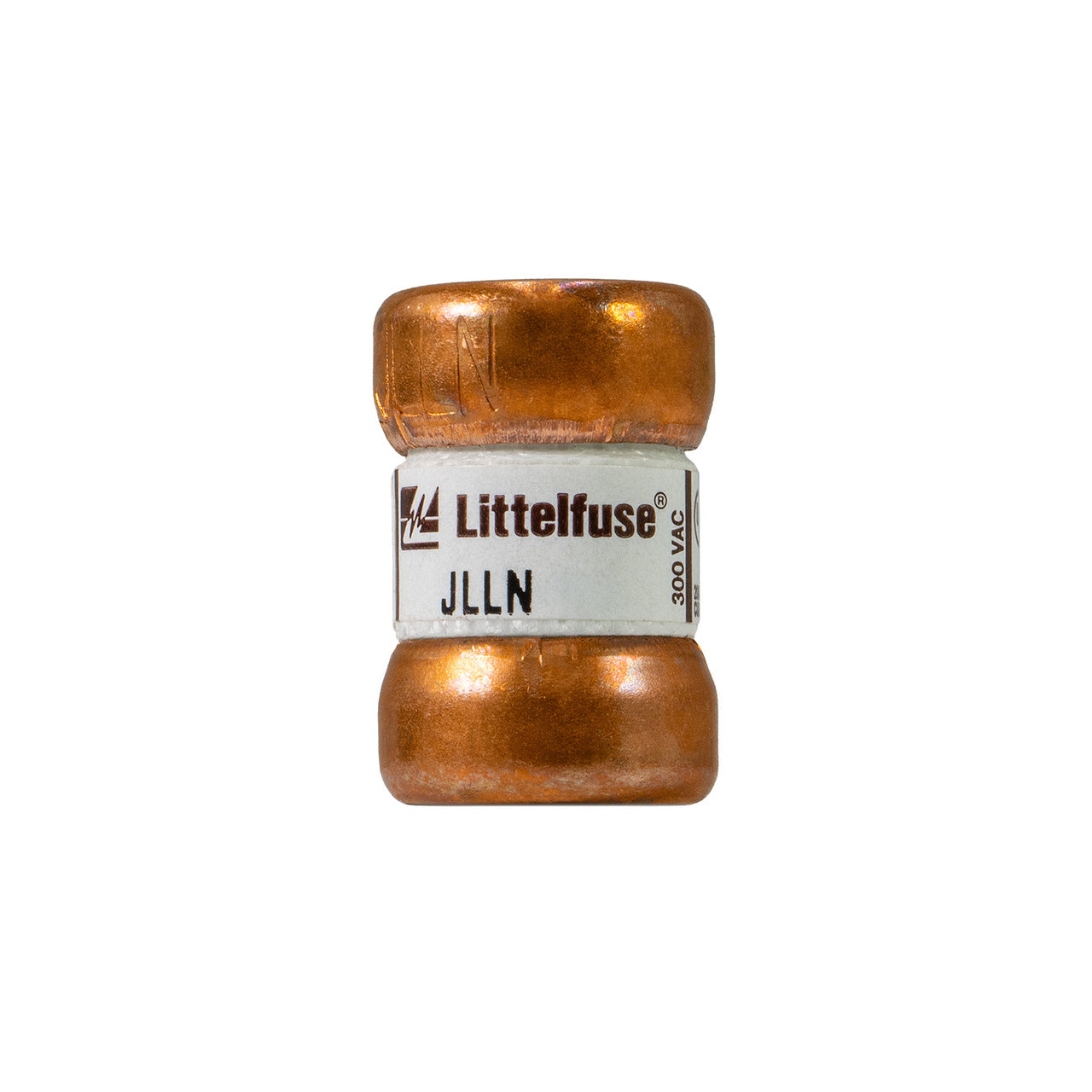

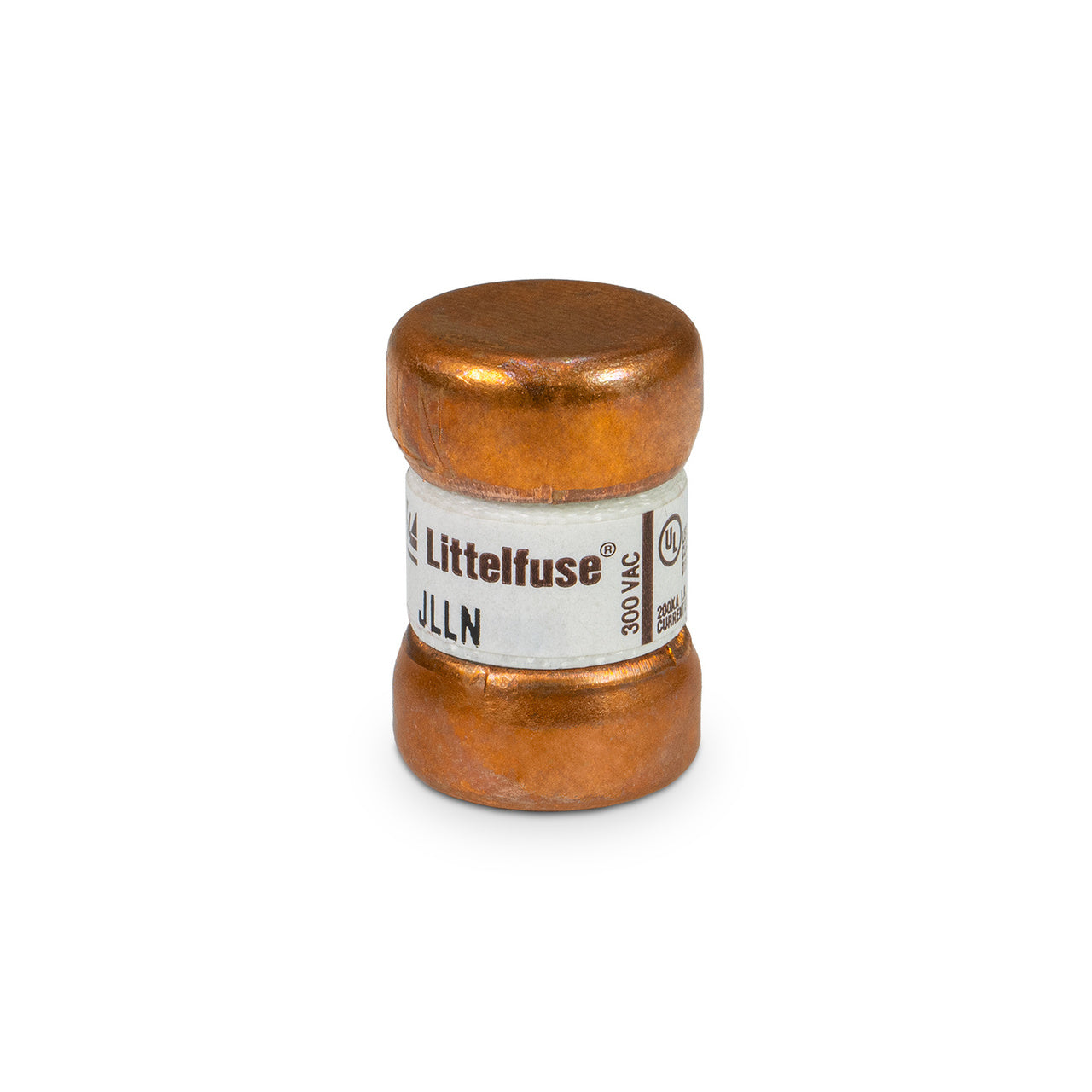

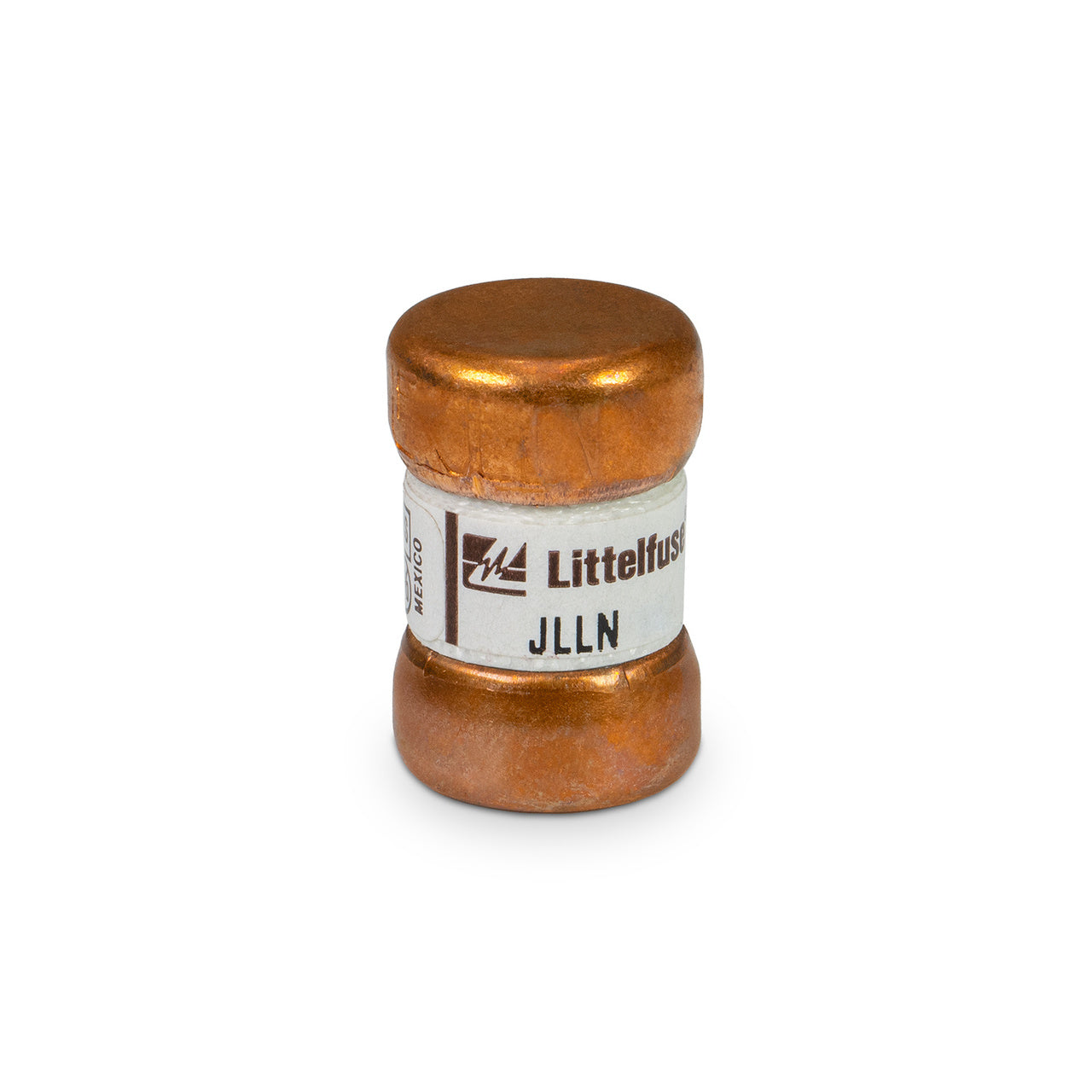

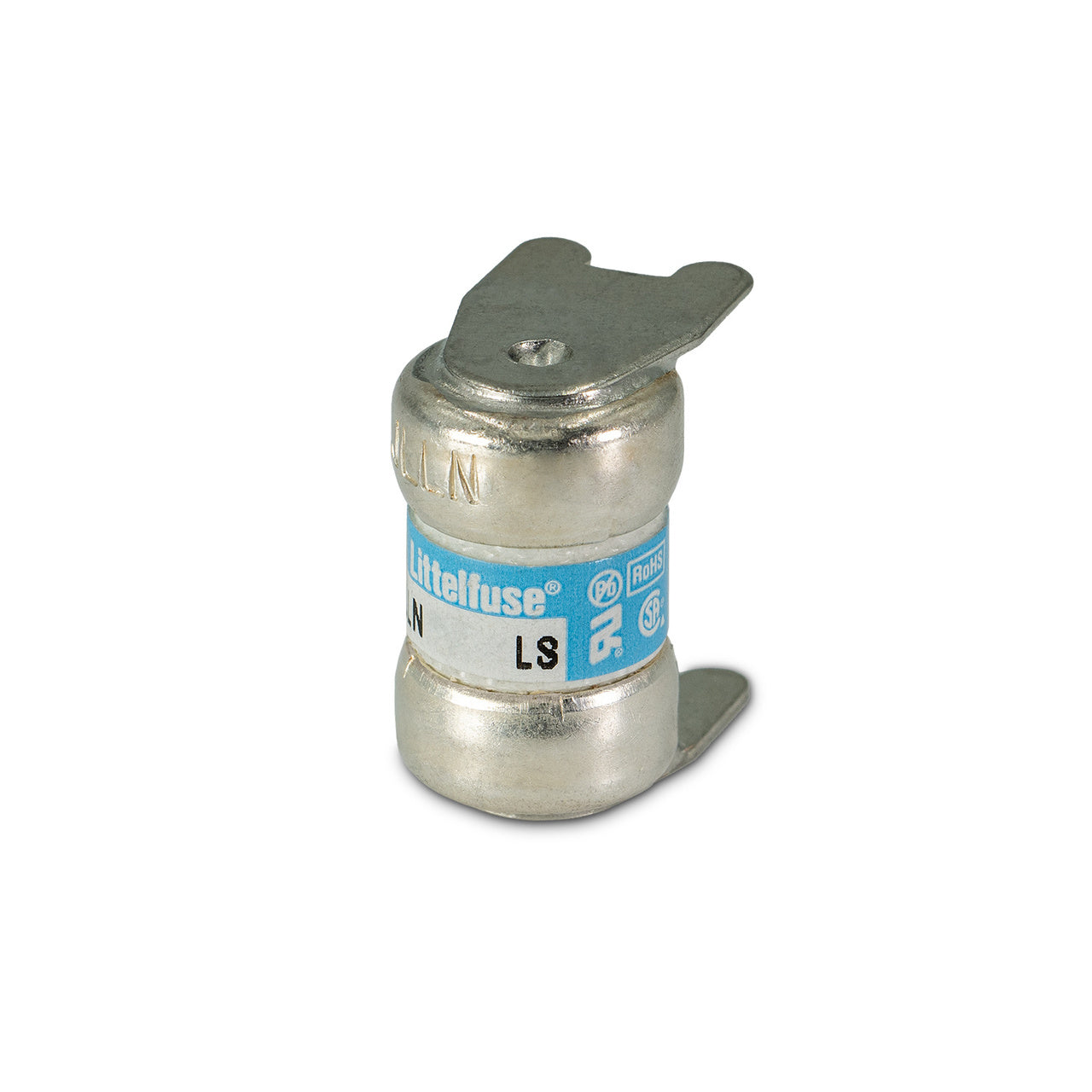

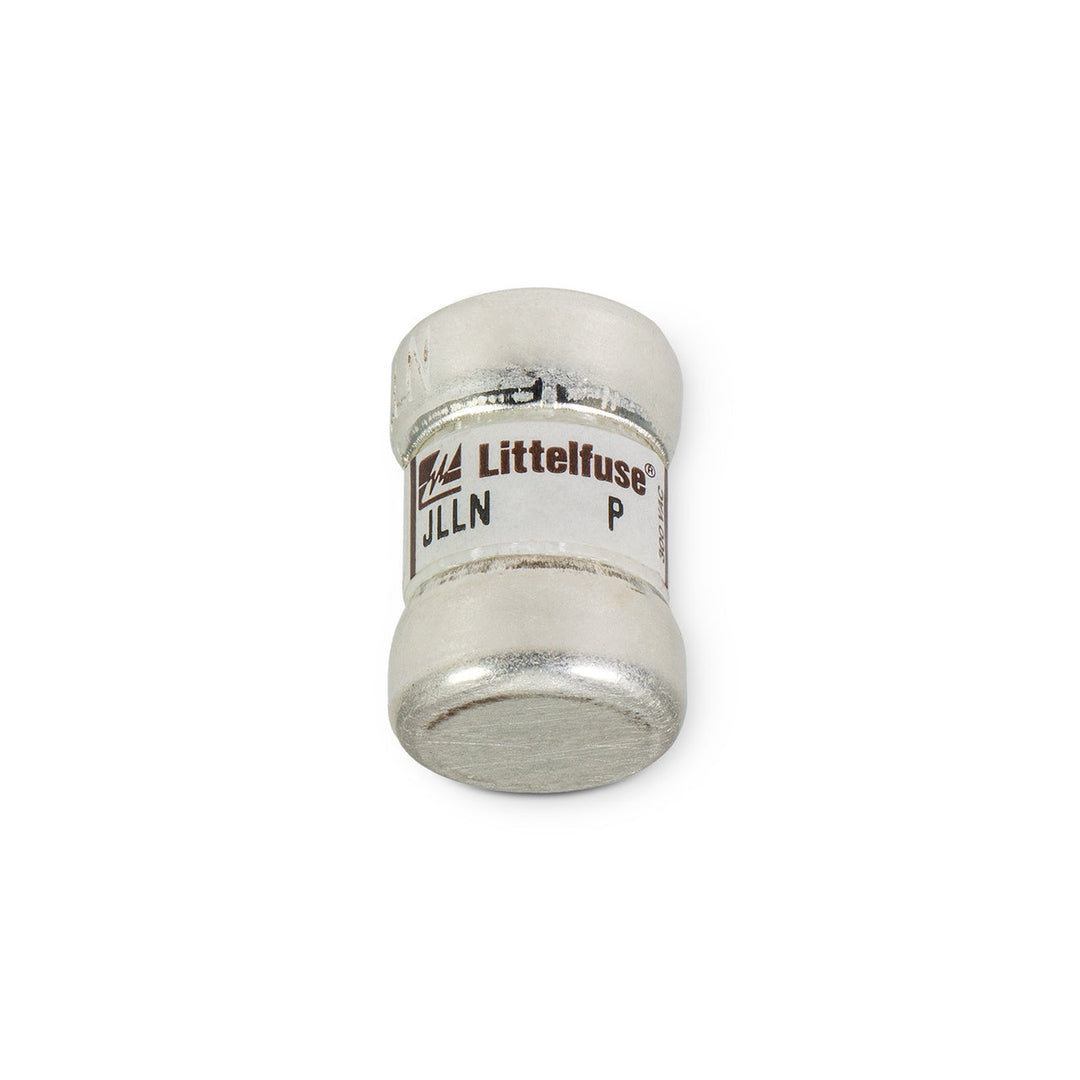

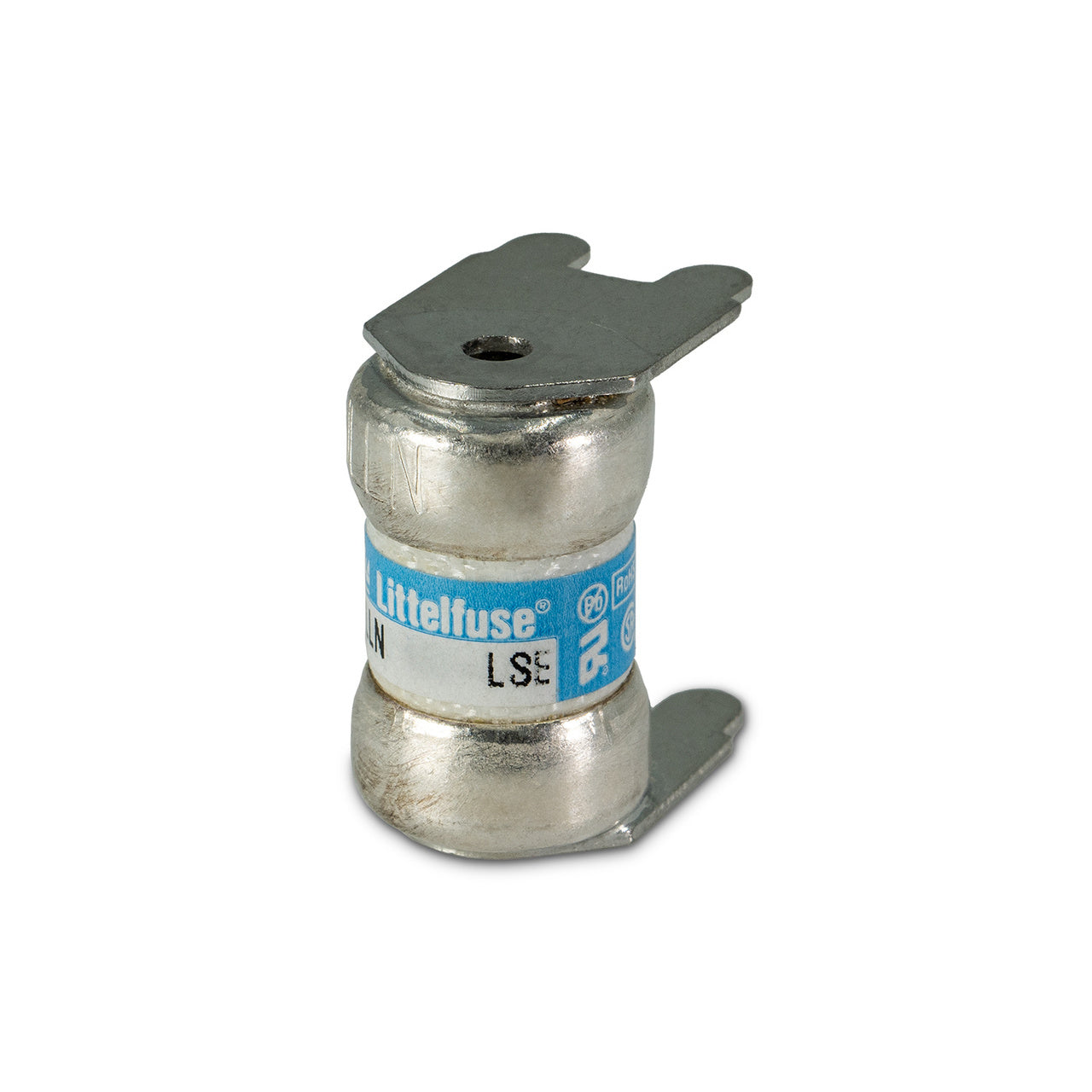

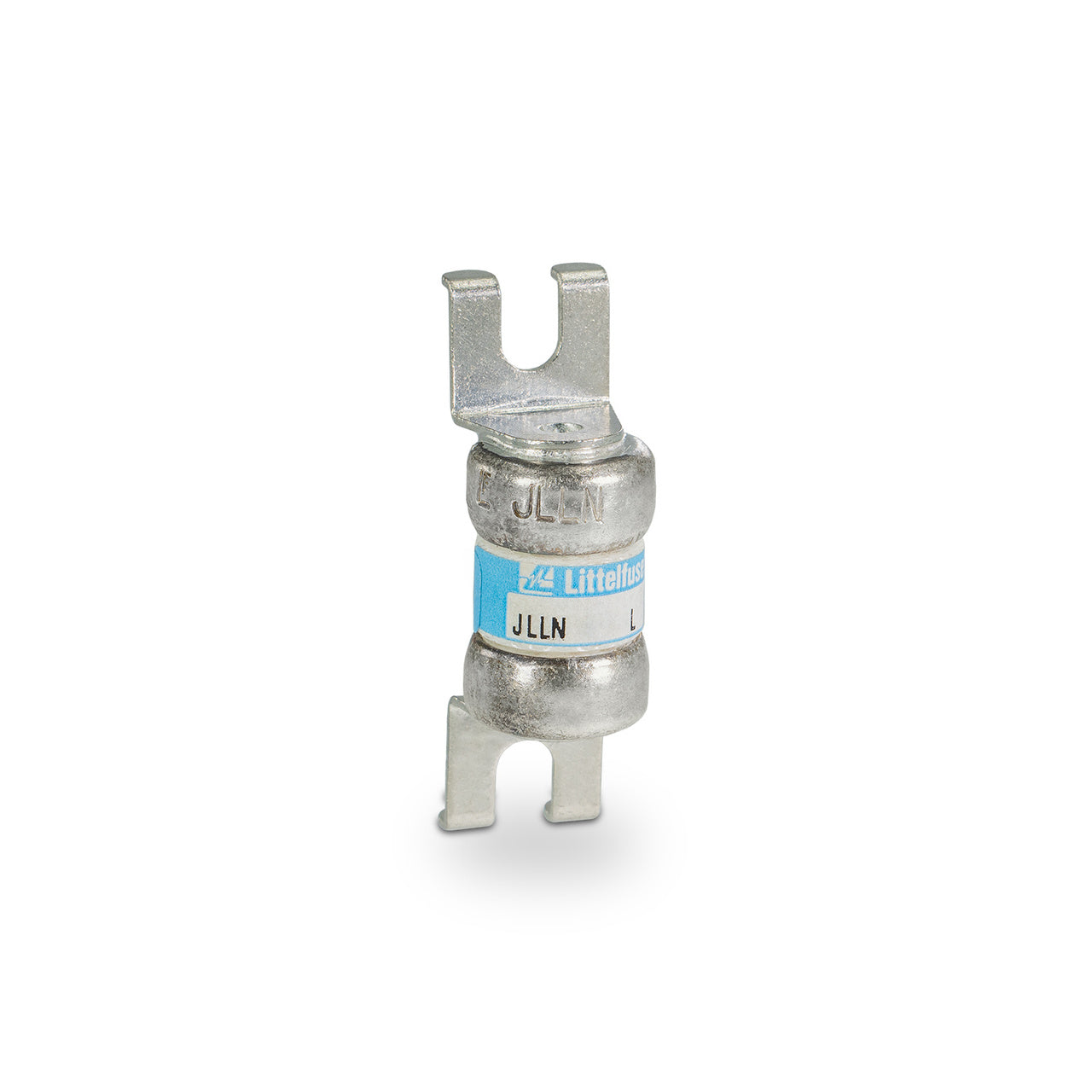

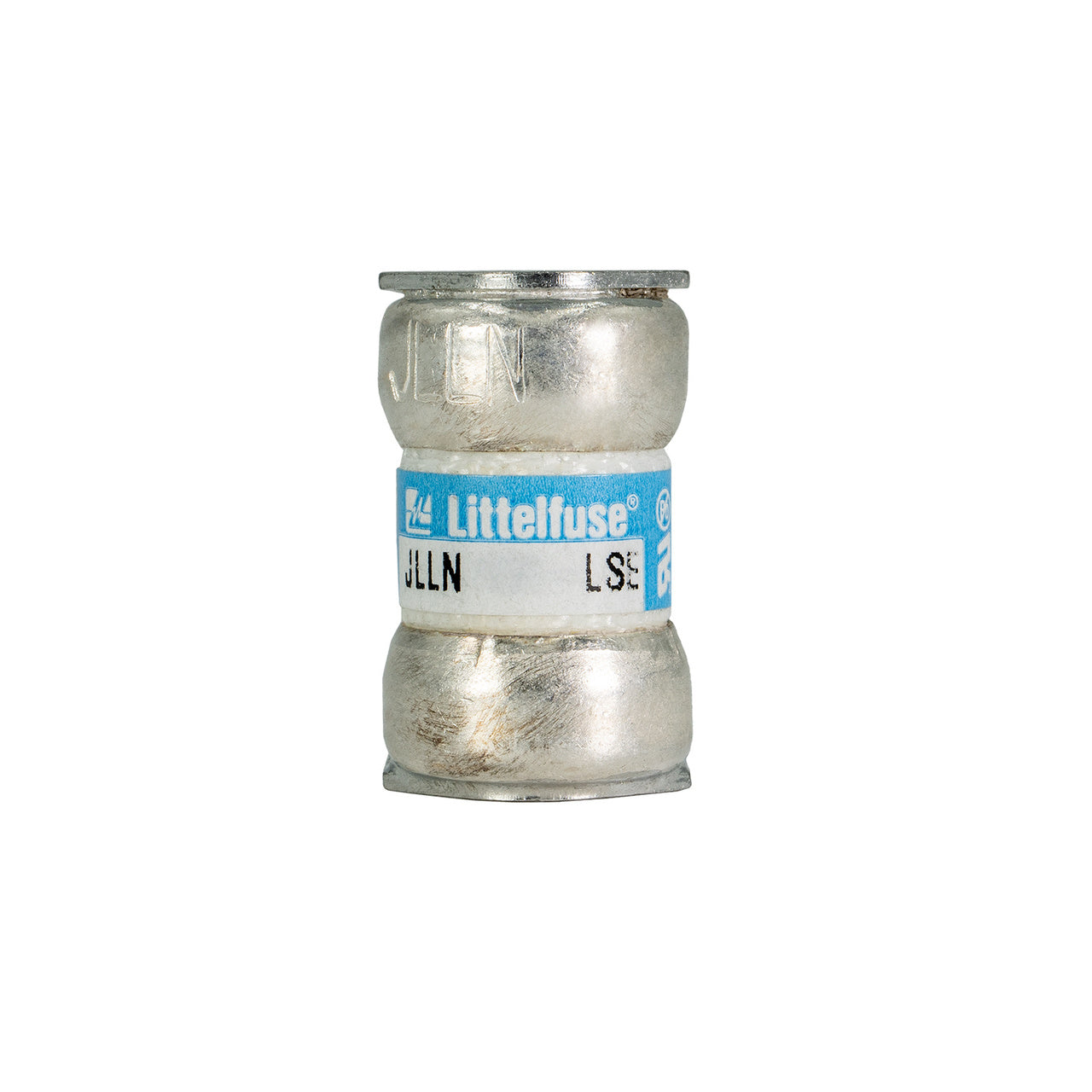

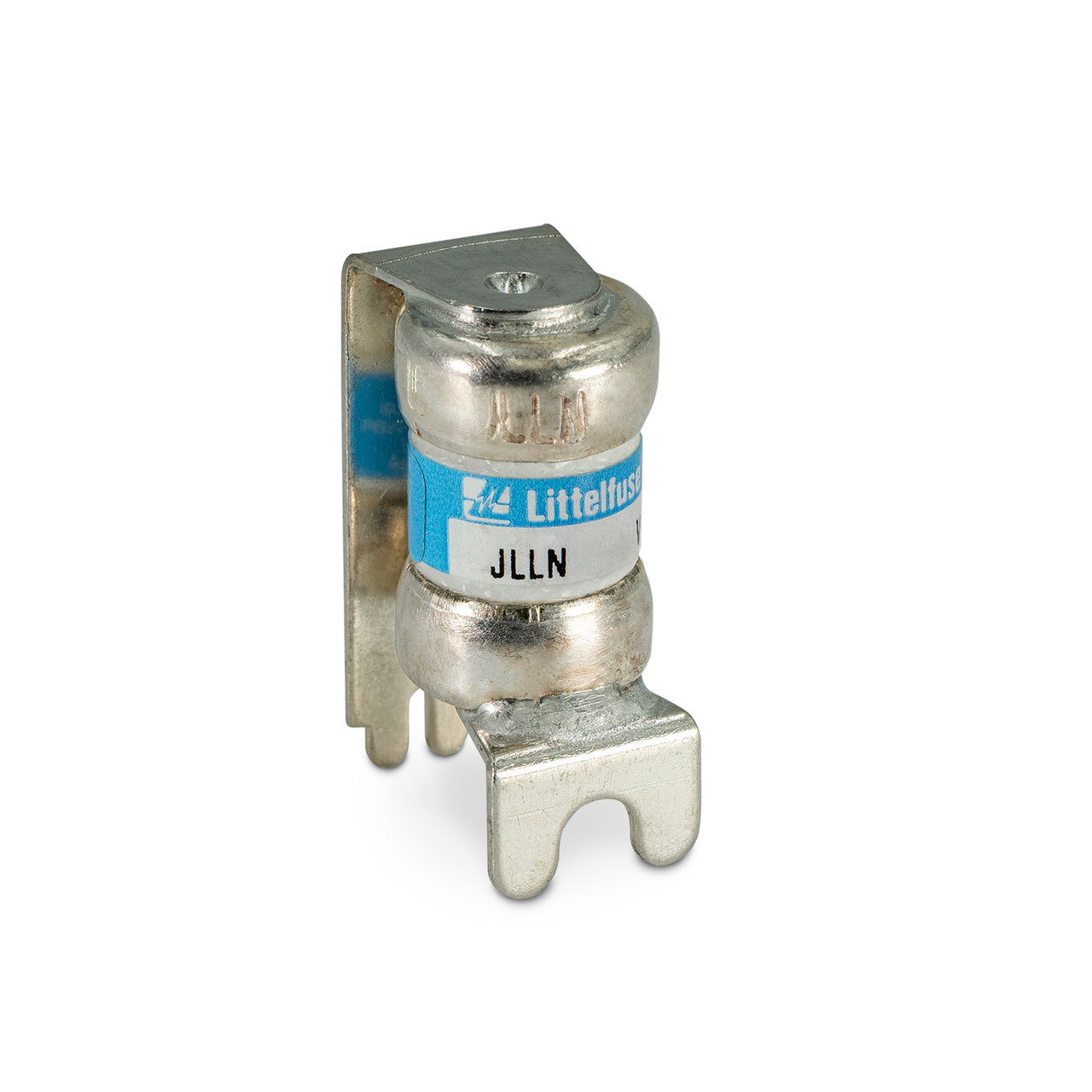

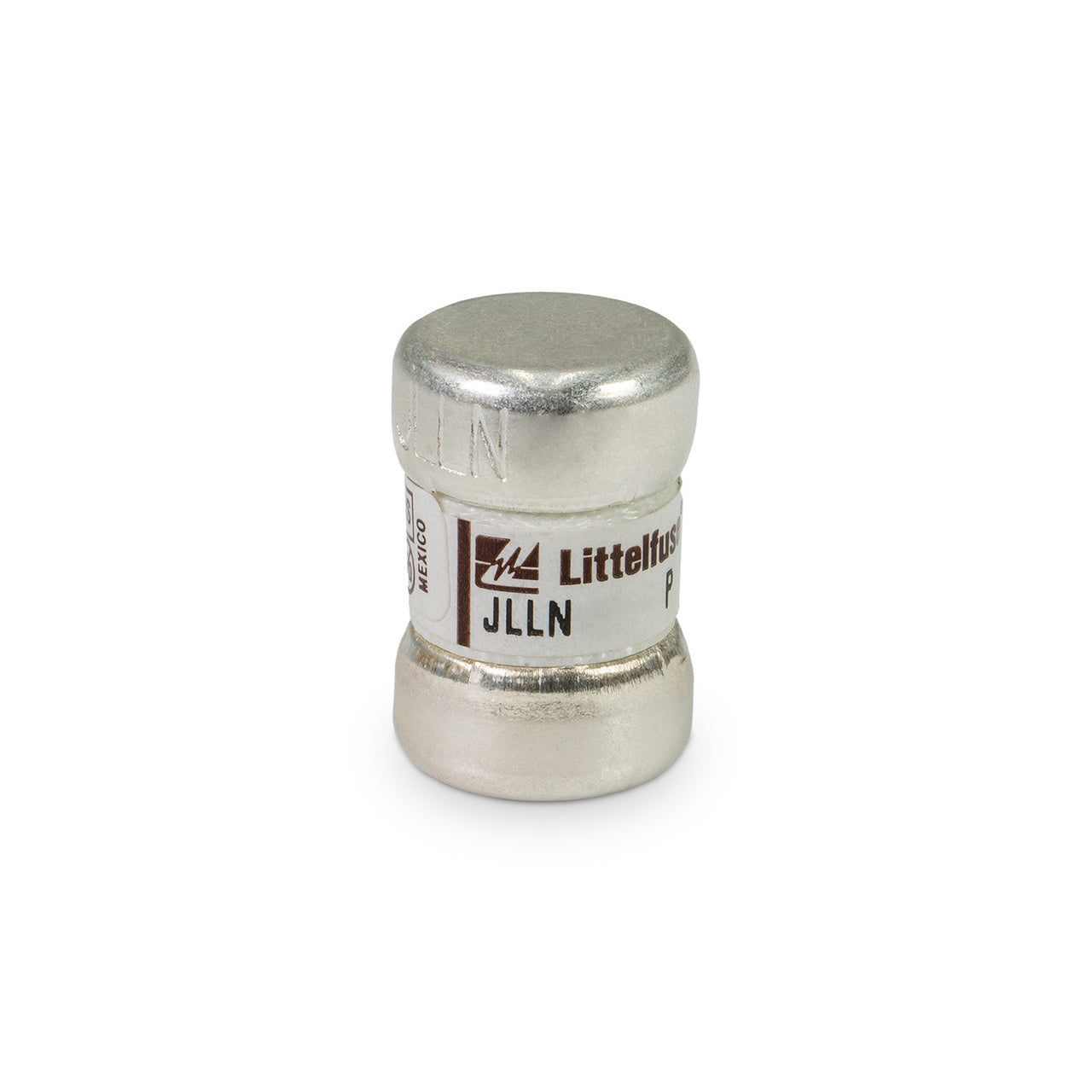

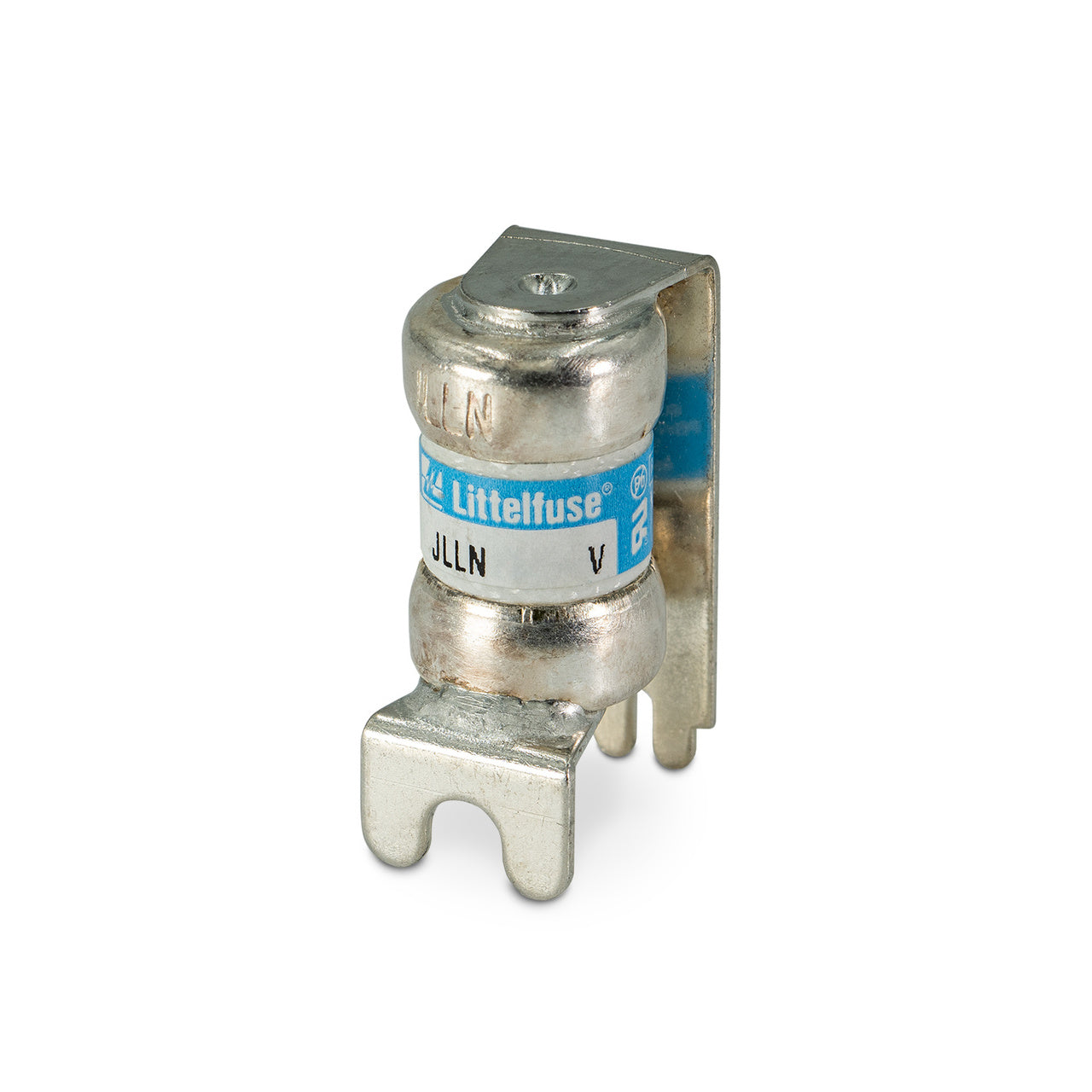

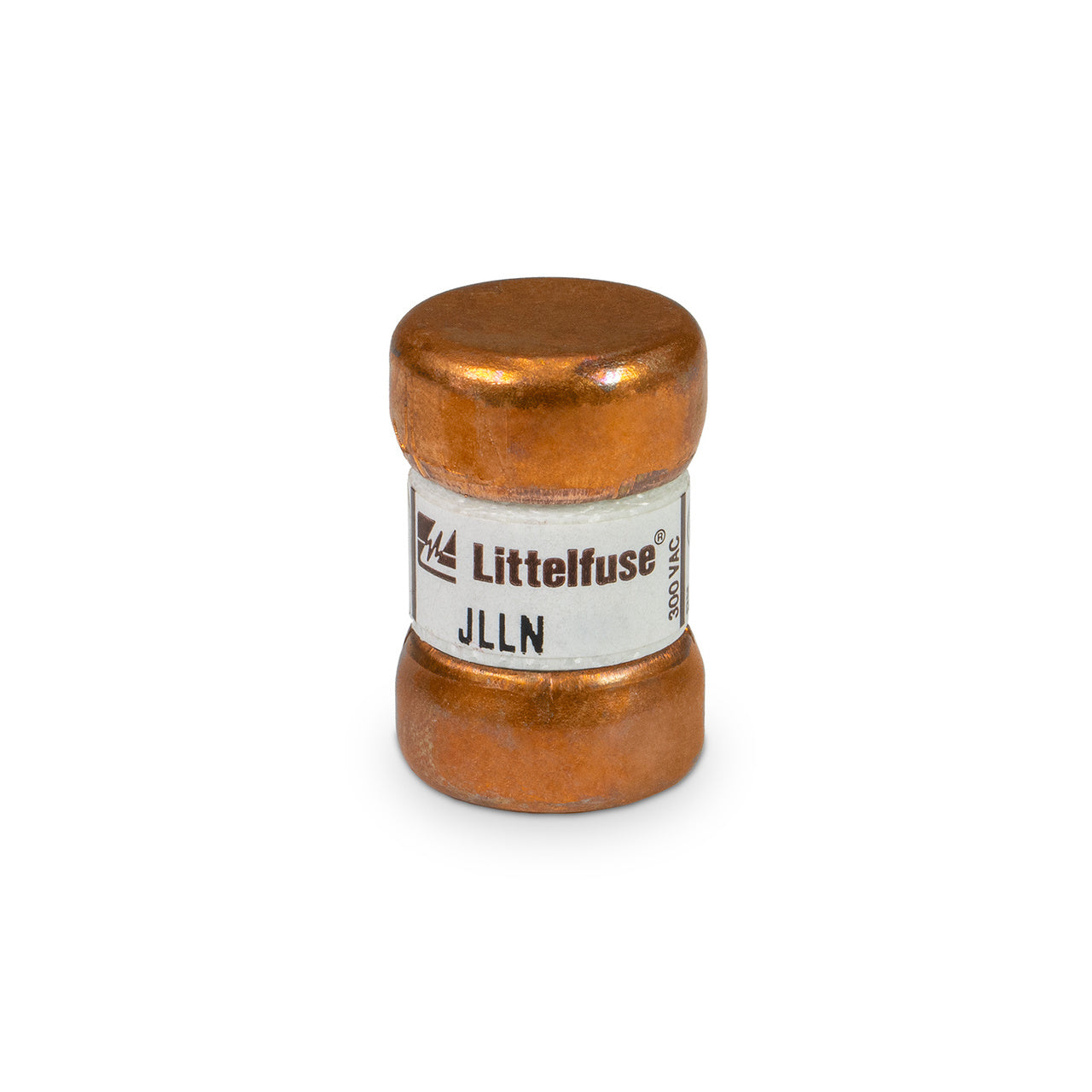

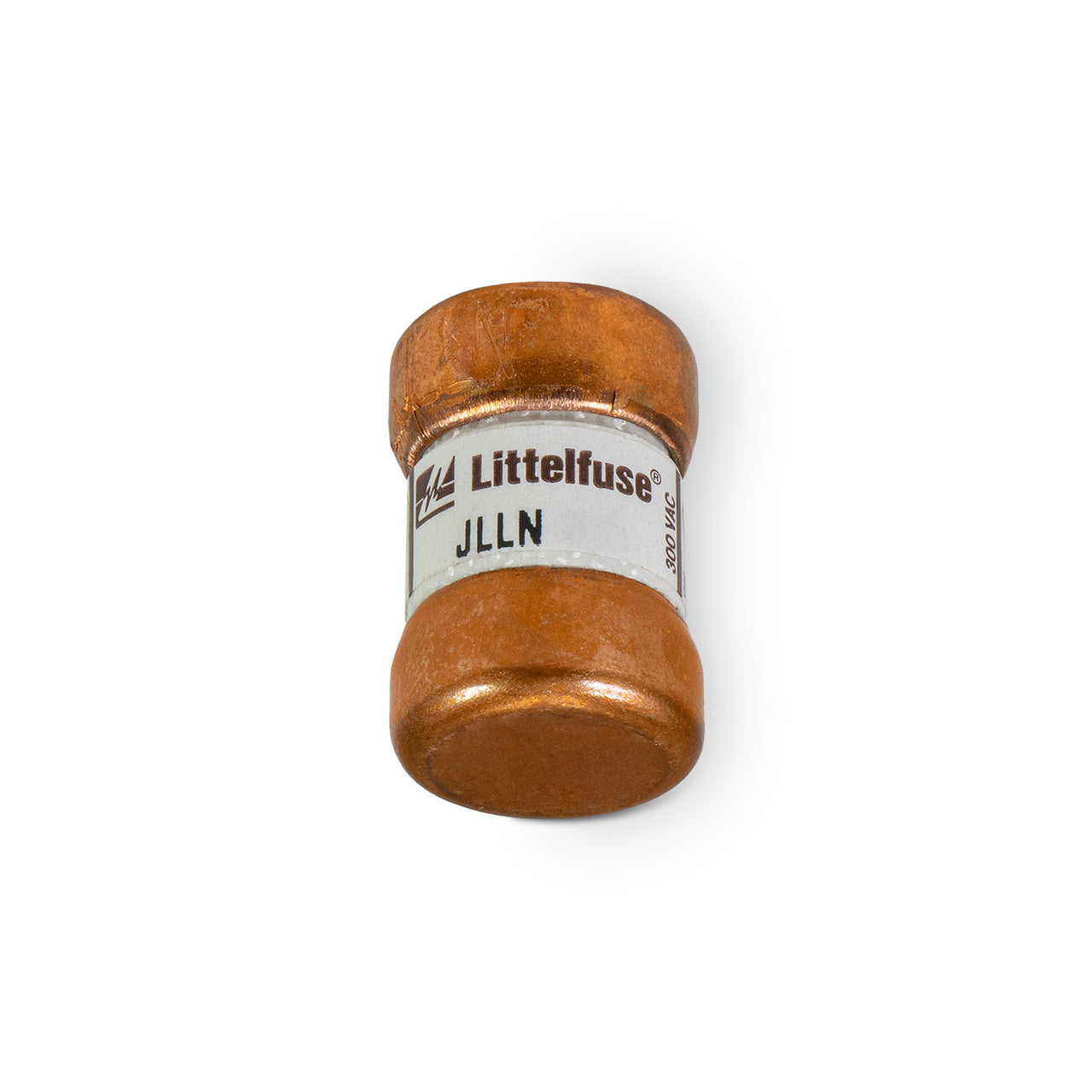

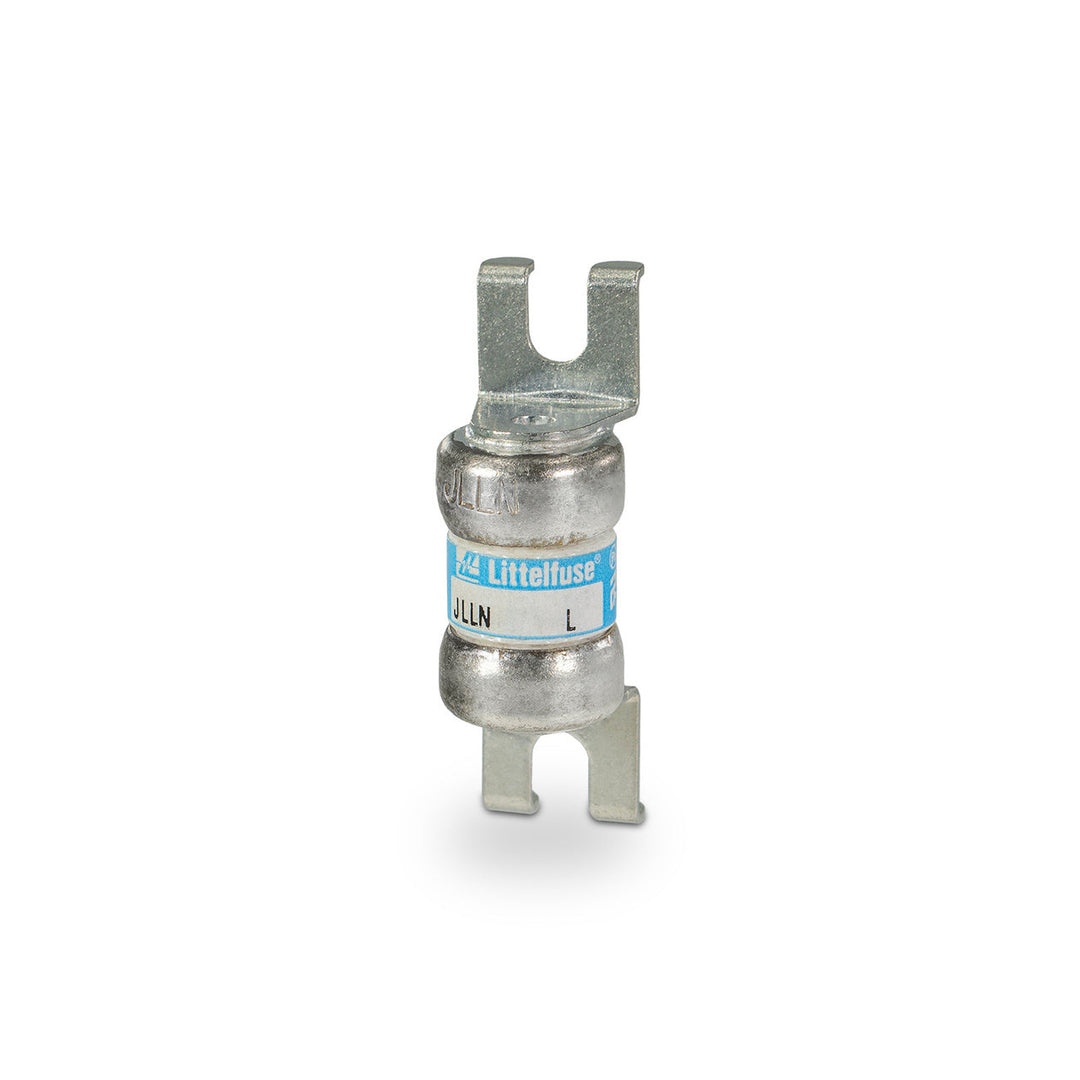

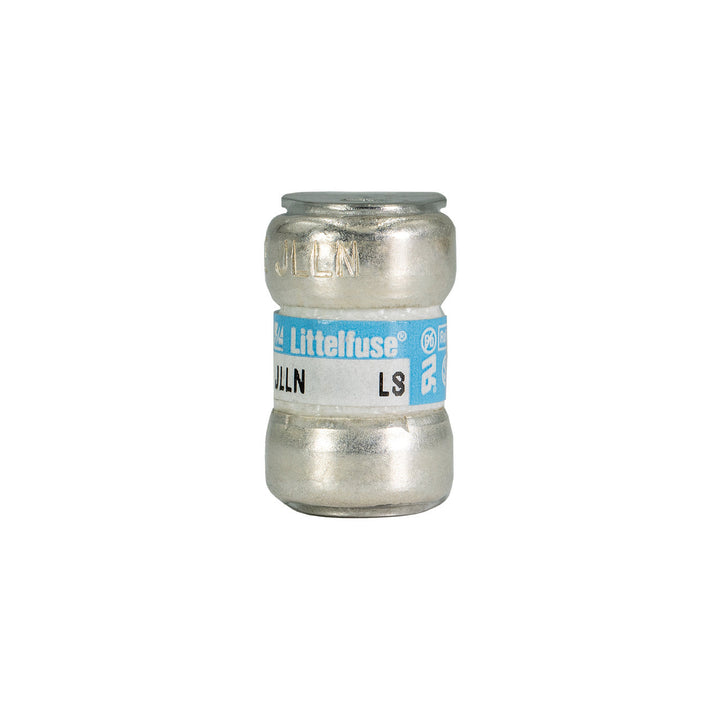

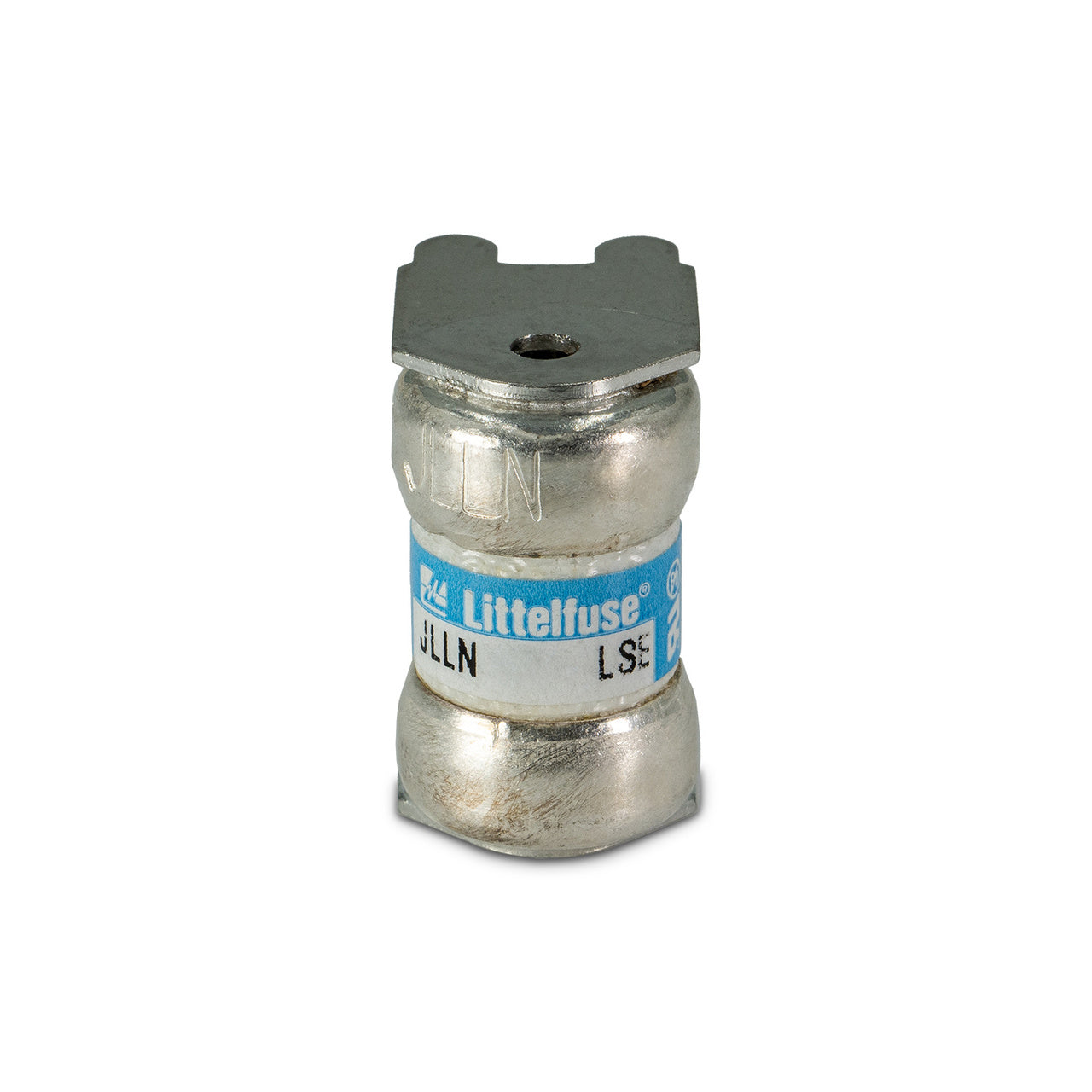

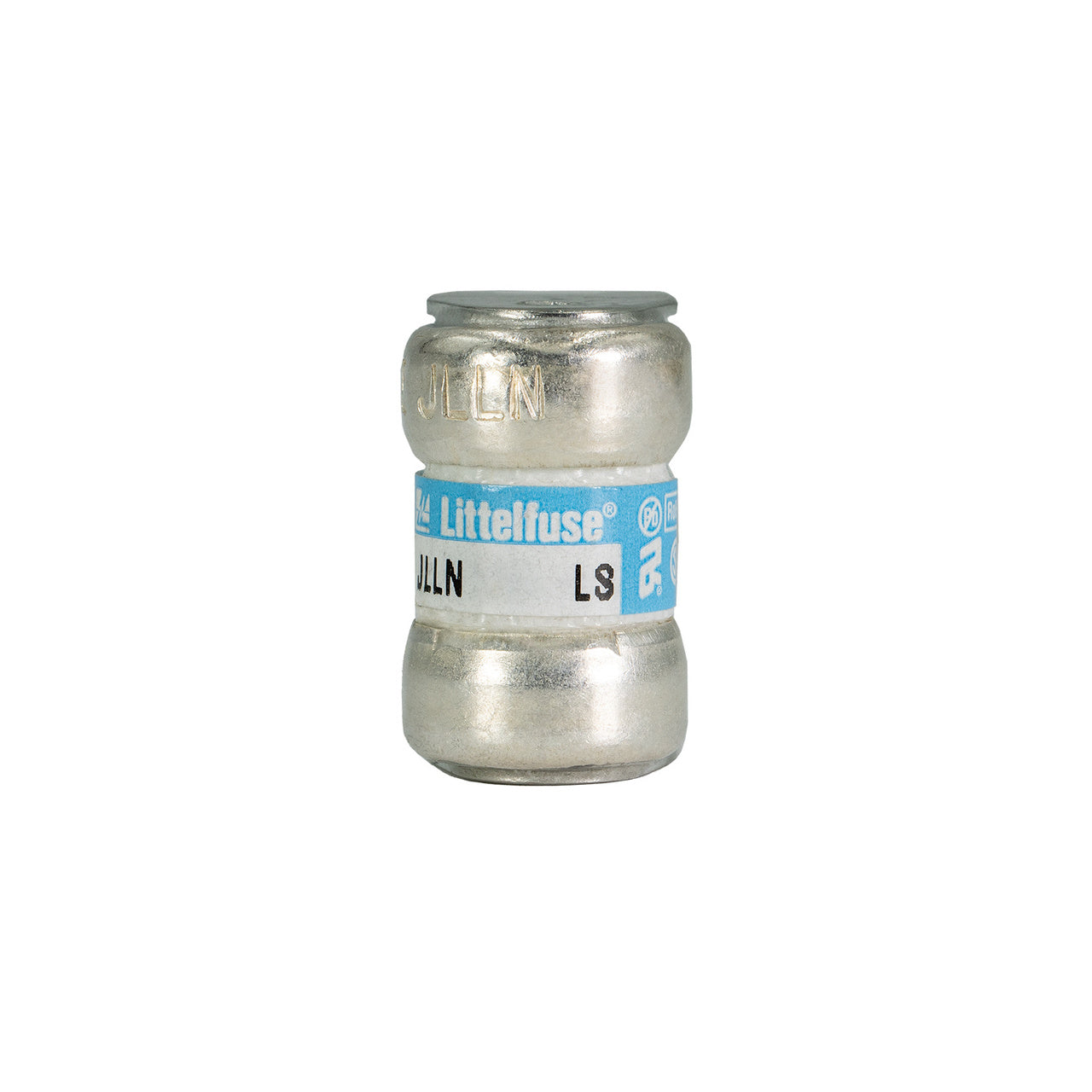

Littelfuse JLLN060 is a Class T low-voltage fuse designed for circuit protection in high-fault current applications. It features a 300V AC/DC voltage rating and 60A current rating with a fast-acting (FA) response time for rapid overcurrent protection. The compact ferrule-connected fuse measures 7/8" in length with a 0.4" diameter, constructed to UL 248-15 standards with a 200kA interrupting capacity. Certified to CE, UL, CSA, and RoHS requirements, this Mexico-manufactured component is suitable for industrial power distribution, renewable energy systems, and equipment protection circuits.
Key Features & Specifications
Type: JLLN series fast-acting Class T fuse with ferrule connection
Voltage Rating: 300V AC/DC
Current Rating: 60A
Dimensions: 7/8" length x 0.4" diameter
Standards: UL 248-15 Class T, CE, CSA, RoHS
Applications: Industrial power distribution, equipment protection
Class Rating: T
Connection: Ferrule
Barrels: 1
Velocity: FA (Fast Action)
AIC rating: 200kA
Weight: 0.02 lb
Certification: UL Listed, CSA Certified
Product Identification
UPC: 079458180787
GTIN: 00079458180787
