Bussmann JKS-600 - Class J Fuse 600A (200kA AIC @ 600V)

Bussmann
Price
Save $1,814.73
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

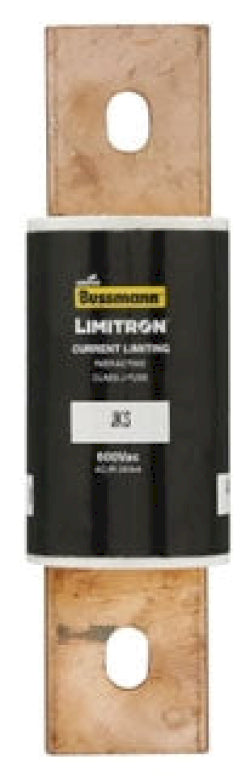

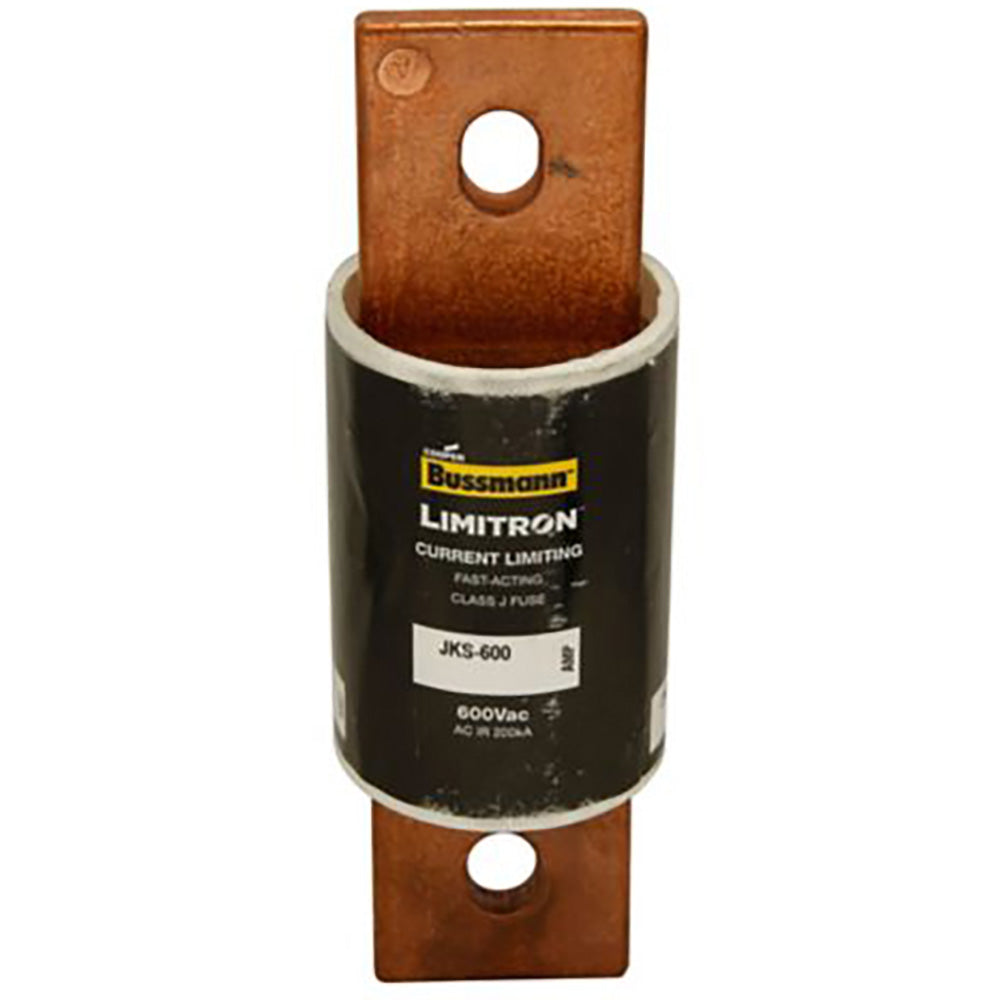

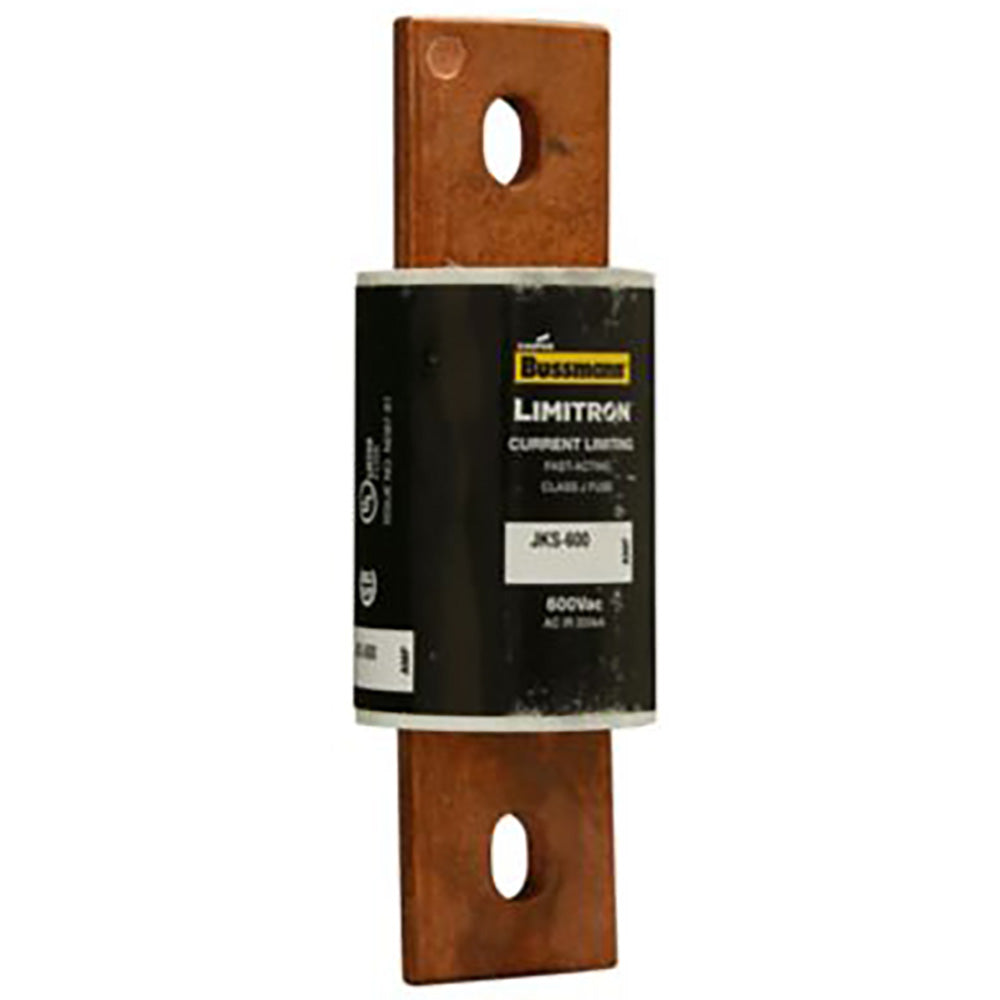

Bussmann JKS-600 is a Class J low-voltage current-limiting fuse designed for high-interrupting capacity protection of industrial equipment and feeders. It is rated for 600V AC systems with a 600A current rating and provides a 200kA interrupting rating at 600V. The fuse features a single-barrel construction with a 2.6-inch diameter and overall dimensions of 8 in x 2.5 in x 2.5 in, weighing 3.25 lb. It complies with CE, UL 248-8 (Guide JDDZ), and CSA Class 1422-02 standards, making it suitable for demanding applications in motor control centers, industrial panels, and feeder circuits where reliable short-circuit protection is critical.

Key Features & Specifications
  • Type: Class J, single-barrel, current-limiting, low-voltage fuse
  • Voltage Rating: 600V AC
  • Current Rating: 600A
  • Dimensions: 8 in (L) x 2.5 in (H) x 2.5 in (W)
  • Standards: CE / UL-248-8 Guide JDDZ / CSA Class 1422-02
  • Applications: Industrial feeder protection, motor control centers, panelboards
  • Class Rating: J
  • AIC rating: 200kA @ 600V
  • Barrels: 1
  • Diameter: 2.6 in
  • Weight: 3.25 lb
  • Family: Limitron
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712636001
  • GTIN: 00051712636001
