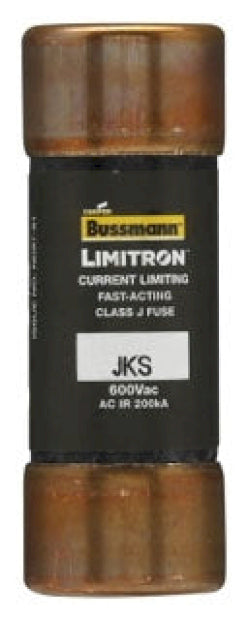

Bussmann JKS-4 - Class J Time-Delay Fuse 4A 600V (200kA AIC)

Bussmann
Price
Save $2,241.58
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Bussmann JKS-4 is a Class J time-delay fuse from the LIMITRON family, designed to provide reliable overcurrent protection for low-voltage industrial circuits. It features a 4A current rating and a 600V AC voltage rating, with a high 200kA interrupting capacity at rated voltage for robust short-circuit protection. The fuse is constructed as a single-barrel device with a compact body measuring 2.25 inches in length and 0.81 inches in diameter, weighing 0.095 lb, and is manufactured in Mexico. It complies with key industry standards, including UL 248-8 and CSA C22.2 No. 248-8, certified under guide JDDZ for Class J fuses. Typical applications include the protection of motor circuits, transformers, and feeder circuits where a time-delay characteristic is required to handle inrush currents.

Key Features & Specifications
  • Type: Class J, time-delay, current-limiting, low-voltage fuse
  • Voltage Rating: 600V AC
  • Current Rating: 4A
  • Dimensions: 2.25 in L x 0.81 in H x 0.81 in W (57.15 mm x 20.57 mm x 20.57 mm)
  • Standards: CE, UL 248-8 (Guide JDDZ), CSA C22.2 No. 248-8 (Class 1422-02)
  • Applications: Motor, transformer, and feeder circuit protection
  • AIC Rating: 200,000 Amps @ 600V AC
  • Class Rating: J
  • Barrels: 1
  • Diameter: 0.81 in (20.57 mm)
  • Weight: 0.095 lb
  • Family: LIMITRON
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712630047
  • GTIN: 00051712630047
