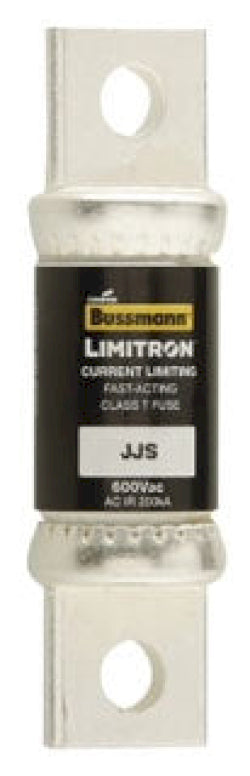

Bussmannn JJS-70 - Class T Fuse 70A 600V (200kA AIC)

Bussmannn JJS-70 is a Class T low-voltage fuse designed for high-performance circuit protection in industrial applications. It features a 600V AC rating with a 70A current capacity and 200kA interrupting rating at 600V, housed in a compact 0.75-inch diameter barrel construction measuring 2-61/64 inches in length. The fuse meets CE/UL-248-15 and CSA Class 1422-02 standards, with a 1 lb weight and T-class time-delay characteristics for motor circuit protection. Typical applications include industrial control panels, motor starter circuits, and power distribution systems requiring reliable short-circuit protection.

Key Features & Specifications

• Type: JJS time-delay fuse, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 70A
• Dimensions: 0.75" diameter x 2-61/64" length
• Standards: CE/UL-248-15, CSA Class 1422-02
• Applications: Motor circuits, industrial controls
• Class Rating: T
• AIC rating: 200kA@600V
• Weight: 1 lb
• Certification: UL/CSA listed

Product Identification

• UPC: 051712628709
• GTIN: 00051712628709
