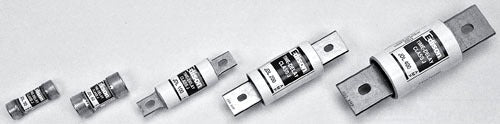

Edison Fuses JDL17.5 - Class J 17.5A Time-Delay Fuse (600V AC/DC)
Edison Fuses JDL17.5 - Class J 17.5A Time-Delay Fuse (600V AC/DC)

Edison Fuses JDL17.5 - Class J 17.5A Time-Delay Fuse (600V AC/DC)

Edison Fuses
Price
Save $-29.54
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Edison Fuses JDL17.5 is a 17.5-amp, 600-volt AC/DC, Class J dual-element, time-delay fuse designed for overcurrent protection of motor circuits, transformers, and other inductive loads. It features a compact 2.25-inch length by 0.81-inch width by 0.81-inch height body with a 1-pound weight, constructed with a ferrule end connection and a high-strength melamine tube for arc quenching. The fuse complies with UL 248-8 and CSA standards, ensuring reliable performance in branch circuit protection. Typical industrial applications include motor control centers, panelboards, and feeder circuits where high inrush currents are present.

Key Features & Specifications
  • Type: Class J, dual-element, time-delay fuse
  • Voltage Rating: 600 V AC/DC
  • Current Rating: 17.5 A
  • Dimensions: 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
  • Weight: 1 lb
  • Connection: Ferrule
  • Fuse Class: J
  • Standards: UL 248-8, CSA
  • Applications: Motor circuits, transformers, feeder protection


Product Identification
  • UPC: 782634803539
  • GTIN: 00782634630203
