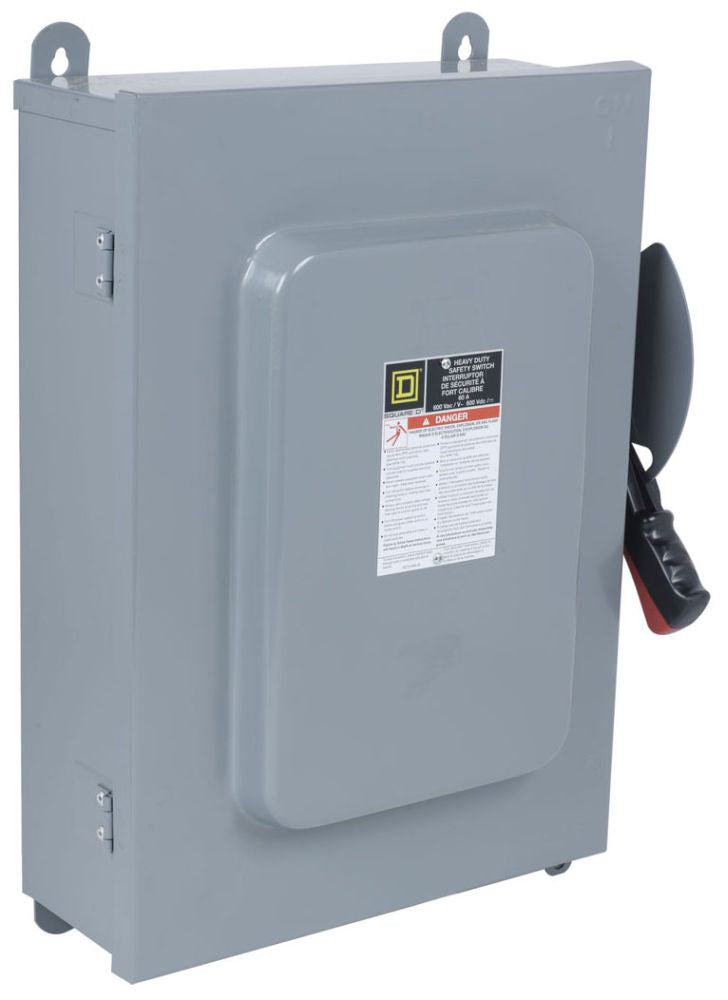

Square D HU662AWK - Non-Fusible Safety Switch 60A 600V (200kA AIC NEMA 12)

Square D HU662AWK is a heavy-duty industrial disconnect switch designed for reliable circuit isolation and load-breaking applications in three-phase electrical systems. This non-fusible safety switch operates at 600V AC with a 60A current rating and features six poles in a single configuration for comprehensive circuit control. The robust NEMA 12 enclosure measures 16.13 x 6.8 x 20.5 inches (WxDxH) and weighs 13.59 lb, providing durable protection against dust and dripping liquids. UL-certified and compliant with industrial safety standards, this Series E switch delivers 200kA interrupting capacity at 600V for high-fault protection. It is engineered for industrial power distribution, motor control centers, and machinery applications where safe maintenance isolation is required, accepting copper conductors from AWG 14 to AWG 3 and aluminum conductors from AWG 12 to AWG 3.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch, Series E family, HU type
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 16.13 in x 6.8 in x 20.5 in (WxDxH)
• Standards: UL certified, NEMA 12 rated
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Non-fusible safety switch
• Configuration: Single
• Phase: 3
• Amperage: 60A
• AIC rating: 200kA@600V
• Connection: Screw terminals
• Poles: 6
• Protection: Circuit isolation and load breaking
• Functions: Safety disconnect
• Nema Rating: NEMA 12
• Wire Size: AWG 14 to AWG 3 Copper, AWG 12 to AWG 3 Aluminum
• Certification: UL
• Compatible Frames: ED
• Enclosure: NEMA 12
• Country of Origin: United States
• Weight: 13.59 lb

Product Identification

• UPC: 785901868361
• GTIN: 00887621872557
