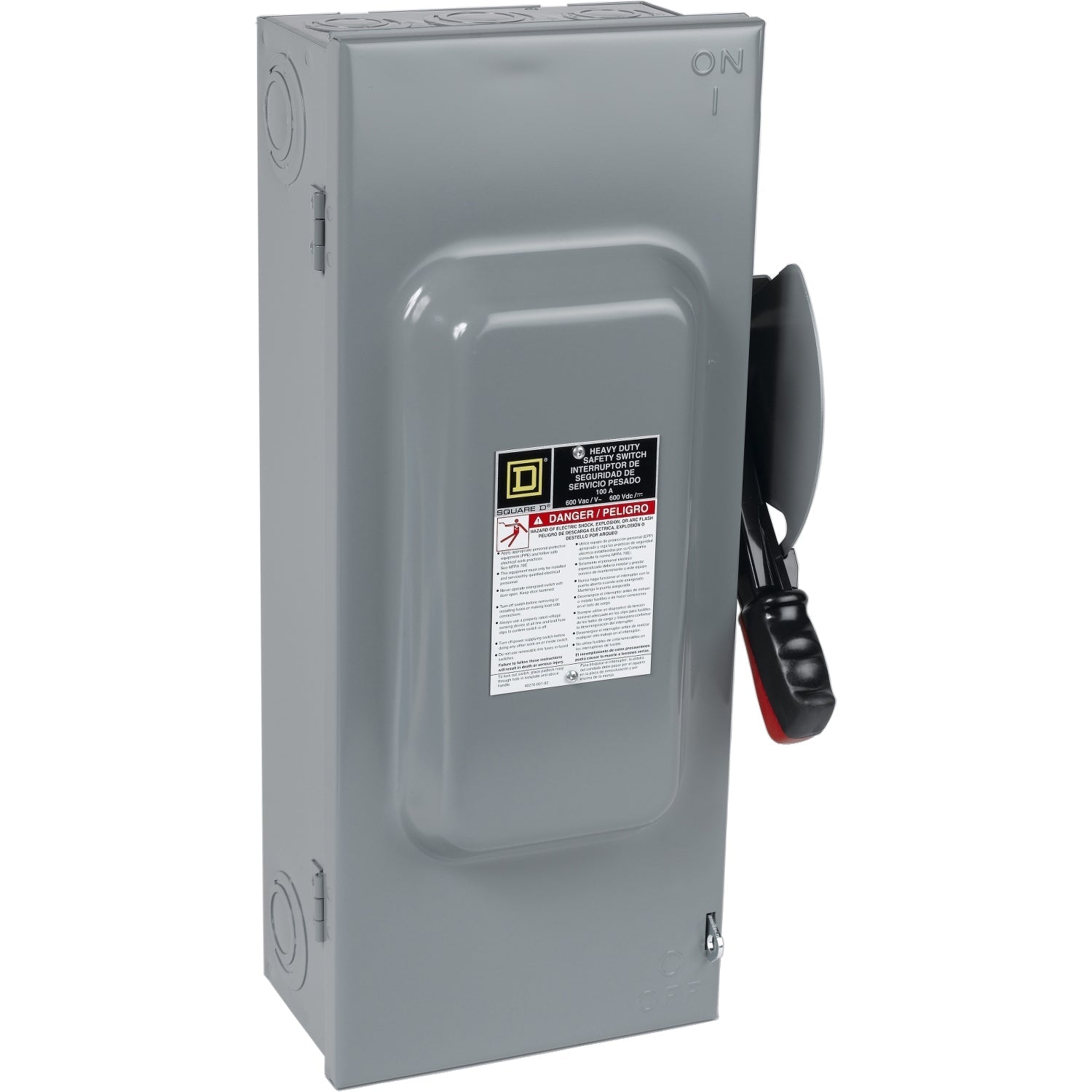

Square D HU462 - Non-Fusible Safety Switch 60A 600V 3-Phase (200kA AIC NEMA 1)

Square D HU462 is a heavy-duty industrial disconnect switch designed for reliable circuit isolation and load-breaking applications in three-phase electrical systems. This non-fusible safety switch operates at 600V AC with a 60A current rating and features a 200kA interrupting capacity for robust short-circuit protection. The unit features a compact NEMA 1 enclosure measuring 16.13" x 6.85" x 20.5" (WxDxH) and weighs 13.1 lb, constructed with four poles in a single configuration for comprehensive circuit control. It complies with industrial safety standards and is designed for compatibility with Square D ED frame equipment. Typical applications include industrial machinery, motor control centers, and power distribution systems where visible circuit isolation is required for maintenance safety.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch, heavy-duty industrial construction
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 16.13 in x 6.85 in x 20.5 in (WxDxH)
• Standards: NEMA 1 rated enclosure
• Applications: Industrial machinery, motor control centers, power distribution systems
• Switch Type: Safety disconnect
• Configuration: Single
• Phase: 3-phase
• Amperage: 60A
• AIC rating: 200kA@600V
• Connection: Terminal type
• Poles: 4
• Protection: Circuit isolation and load-breaking
• Functions: Visible disconnect for maintenance safety
• Compatible Frames: ED frame equipment
• Wire Size: AWG 12 to AWG 3, AWG 14 to AWG 3, Aluminum/Copper
• Nema Rating: NEMA 1
• Country of Origin: United States
• Weight: 13.1 lb

Product Identification

• UPC: 78590150591
• GTIN: 00785901505914
