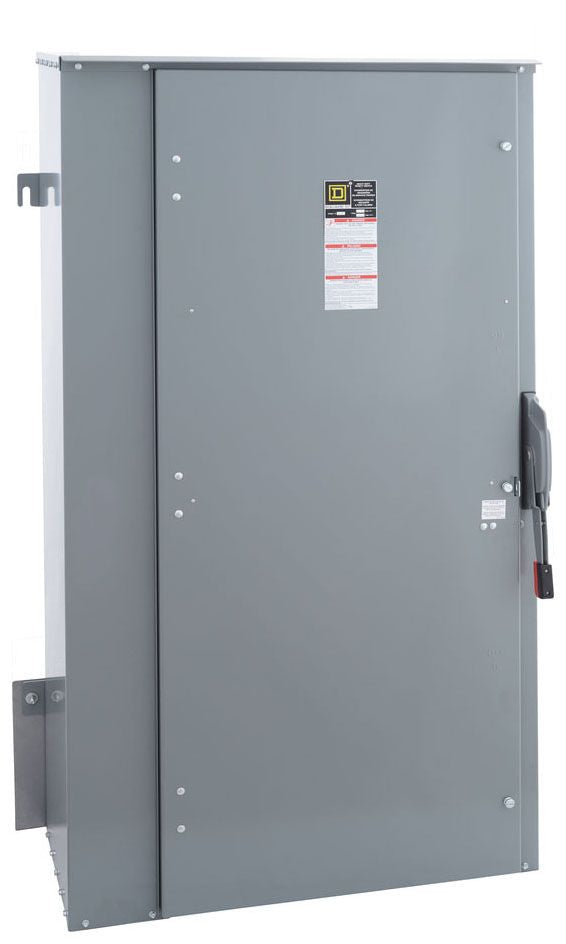

Square D HU368R - Non-Fusible Safety Switch 1200A 600V (NEMA 3R)

Square D
Price
Save $3,619.41
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HU368R is a heavy-duty industrial safety switch designed for providing a visible disconnect and isolation point for electrical circuits. It features a 600V AC/DC voltage rating and a 1200A current rating, housed in a robust NEMA 3R enclosure measuring 1755.9 mm H x 930.15 mm W x 450.85 mm D with a weight of 364 lb. The switch is UL Listed and offers a 200kA interrupting capacity at 600V, ensuring reliable protection. Its non-fusible, 3-pole, single configuration is engineered for demanding three-phase power distribution applications in industrial facilities and data centers.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, Series E, HU Type
  • Voltage Rating: 600V AC/DC
  • Current Rating: 1200A
  • Dimensions: 1755.9 mm H x 930.15 mm W x 450.85 mm D (69.13 in x 36.62 in x 17.75 in)
  • Weight: 364 lb
  • Standards: UL Listed
  • Applications: Main service entrance and branch circuit isolation for industrial power distribution
  • Switch Type: Non-Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: AWG 3/0 to 750 Kcmil (Copper or Aluminum)
  • NEMA Rating: NEMA 3R
  • Compatible Frames: ED Frame
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901259367
  • GTIN: 00785901259367
