Square D HU365AWK - 400A Non-Fusible Disconnect Switch (600V, 200kA AIC)

Square D
Price
Save $870.04
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

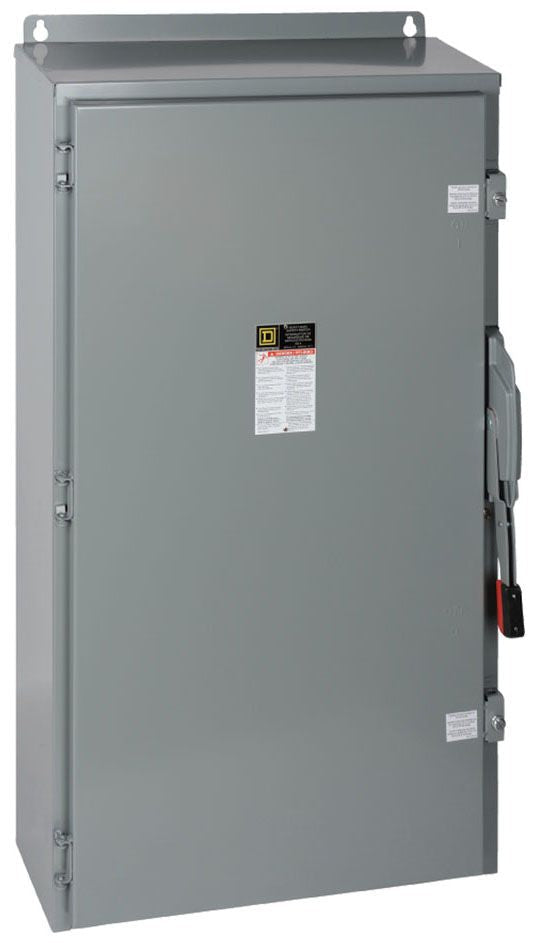

Square D HU365AWK is a heavy-duty industrial disconnect switch designed for the safe isolation of electrical circuits in demanding environments. It provides reliable circuit protection with a 600V AC voltage rating and a 400A current rating, housed within a robust NEMA 12 enclosure measuring 1174.75 mm H x 666.75 mm W x 257.30 mm D and weighing 175.001 lb. This UL-listed, non-fusible switch is engineered for compliance with industrial safety standards, featuring a 200kA interrupting capacity at 600V. Its three-pole, single-configuration design is typically applied in industrial power distribution, motor control centers, and panelboards requiring a high-amperage disconnect.

Key Features & Specifications
  • Type: HU Series E, Non-Fusible Disconnect Switch
  • Voltage Rating: 600V AC
  • Current Rating: 400A
  • Dimensions: 1174.75 mm H x 666.75 mm W x 257.30 mm D (46.25 in x 26.25 in x 10.13 in)
  • Weight: 175.001 lb
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor control centers, panelboards
  • Switch Type: Disconnect
  • Configuration: Single
  • AIC Rating: 200kA @ 600V
  • Connection: Accepts AWG 1/0 to 750 Kcmil Copper or Aluminum wire
  • Poles: 3
  • Phase: 3
  • NEMA Rating: NEMA 12
  • Compatible Frames: ED
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901452096
  • GTIN: 00785901452096
