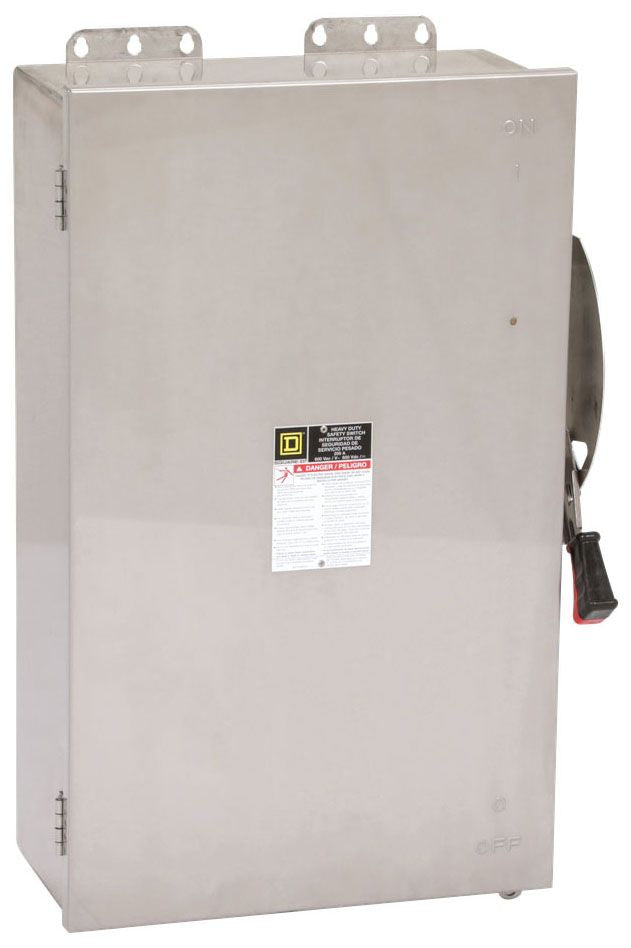

Square D HU364SS - Non-Fusible Disconnect 200A 600V 3-Pole

Square D
Price
Save $-7,483.57
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HU364SS is a heavy-duty industrial disconnect switch designed for providing a visible break and safe isolation of three-phase electrical circuits. It is rated for 600V AC systems with a 200A current rating and features a robust, non-fusible switch style with three poles in a single configuration. The unit is constructed for durability with dimensions of 29 in (736.6 mm) H x 19.25 in (488.95 mm) W x 8.88 in (225.55 mm) D and a weight of 57.02 lb, complying with NEMA 3, 3R, 4, 4X, 5, and 12 enclosure ratings for use in demanding environments. It is engineered to an interrupting rating of 200kA at 600V and is compatible with Series F, Type H and ED frames, making it suitable for industrial control panels, motor disconnects, and main service entrance equipment where reliable circuit isolation is critical.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: AWG 6, 250 kcmil (copper or aluminium)
  • Compatible Frames: ED
  • NEMA Rating: 3/3R/4/4X/5/12
  • Dimensions: 29 in (736.6 mm) H x 19.25 in (488.95 mm) W x 8.88 in (225.55 mm) D
  • Weight: 57.02 lb
  • Standards: Designed to meet applicable industry standards for safety and performance
  • Applications: Industrial control panels, motor disconnects, main service equipment


Product Identification
  • UPC: 785901413134
  • GTIN: 00782113207247
