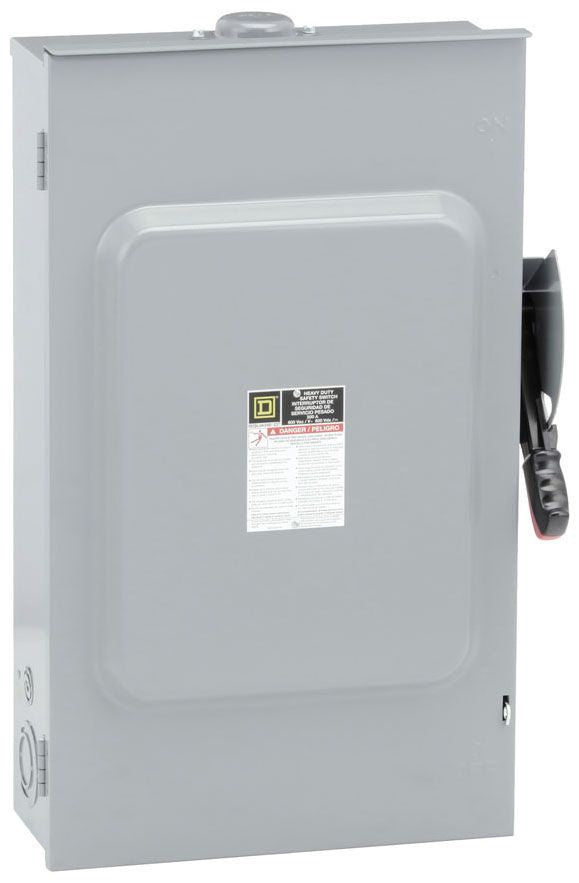

Square D HU364RB - Non-Fusible Disconnect 200A 600V 3P

Square D
Price
Save $630.57
/
Title
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Square D HU364RB is a heavy-duty industrial disconnect switch designed for providing a visible break and safe isolation of three-phase electrical circuits. It is rated for 600V AC systems with a 200A current capacity and features a robust, non-fusible switch mechanism housed in a NEMA 3R enclosure for outdoor durability. The unit is constructed with a substantial steel frame, measuring 742.95 mm H x 473.20 mm W x 215.9 mm D and weighing 42 lb, and is UL Listed for safety compliance. Its 200kA interrupting rating at 600V and compatibility with ED frames make it suitable for demanding applications such as motor control centers, industrial machinery, and main service disconnects where reliable circuit isolation is critical.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, HU Type, Series F Family
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Phase: 3
  • Poles: 3
  • Configuration: Single
  • AIC Rating: 200kA @ 600V
  • Wire Size: #6 to 250 AWG/kcmil (Aluminum/Copper)
  • Dimensions: 29.25 in (742.95 mm) H x 18.63 in (473.20 mm) W x 8.5 in (215.9 mm) D
  • Weight: 42 lb
  • NEMA Rating: 3R
  • Switch Style: Non-Fusible
  • Certification: UL Listed
  • Compatible Frames: ED
  • Applications: Motor Control Centers, Industrial Machinery, Main Service Disconnects


Product Identification
  • UPC: 785901505631
  • GTIN: 00783643173903
