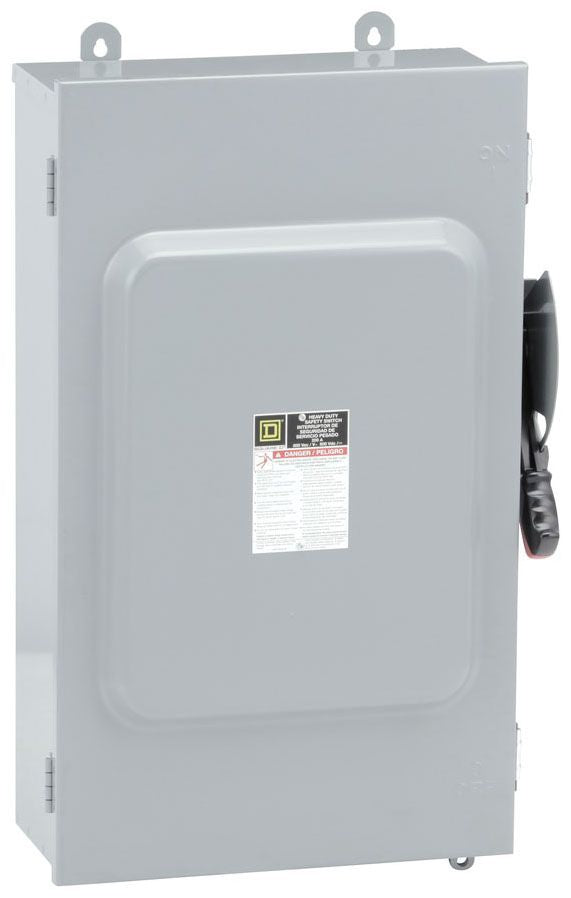

Square D HU364DS - Non-Fusible Safety Switch (200A, 600V, 3-Pole)

Square D
Price
Save $1,702.13
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HU364DS is a heavy-duty industrial safety switch designed for isolating electrical circuits in demanding environments. It provides reliable load-break isolation with a 600V AC voltage rating and a 200A current rating, housed within a robust NEMA 4/4X enclosure measuring 736.6 mm H x 488.95 mm W x 225.55 mm D and weighing 55.151 lb. This non-fusible disconnect switch is engineered to UL and CSA standards, featuring a 200kA interrupting capacity at 600V and a three-pole, single-configuration design for three-phase systems. It is typically applied in industrial power distribution, machinery control, and panelboards, compatible with Series F and ED frame equipment and accepting conductors from AWG 6 to 250 kcmil.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, Series F, HU Type
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Dimensions: 29 in (736.6 mm) H x 19.25 in (488.95 mm) W x 8.88 in (225.55 mm) D
  • Standards: UL, CSA
  • Applications: Industrial Power Distribution, Machinery Isolation, Panelboards
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: 4/4X
  • Phase: 3
  • Wire Size: AWG 6 to 250 kcmil (Copper or Aluminum)
  • Compatible Frames: ED
  • Weight: 55.151 lb


Product Identification
  • UPC: 785901023746
  • GTIN: 00887621872595
