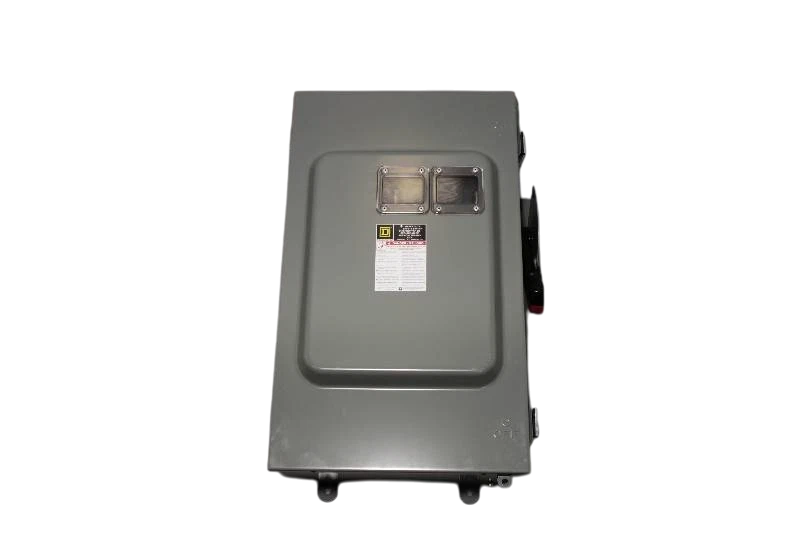

Square D HU364AWKVW is a heavy-duty industrial disconnect switch designed for the safe isolation of electrical circuits in demanding environments. It provides reliable circuit protection with a 600V voltage rating and a 200A current rating, housed within a robust enclosure measuring 736.6 mm H x 473.2 mm W x 222.25 mm D and weighing 52.001 lb. This non-fusible, 3-pole switch is constructed to meet NEMA 3R/12 standards for indoor/outdoor use and features an impressive 200kA interrupting capacity at 600V. Its design accommodates a wide wire range from AWG 6 to 250 kcmil for copper or aluminum conductors, making it suitable for power distribution panels, industrial control systems, and motor control centers where a high withstand rating is required.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, Series F, HU Type
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Dimensions: 736.6 mm H x 473.2 mm W x 222.25 mm D (29 in x 18.63 in x 8.75 in)
  • Weight: 52.001 lb
  • Standards: NEMA 3R/12
  • Applications: Industrial power distribution, motor control centers, panelboards
  • Switch Type: Non-Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: AWG 6 to 250 kcmil (Copper/Aluminum)
  • Compatible Frames: ED Frame


Product Identification
  • UPC: 78590120889
  • GTIN: 00785901208891
