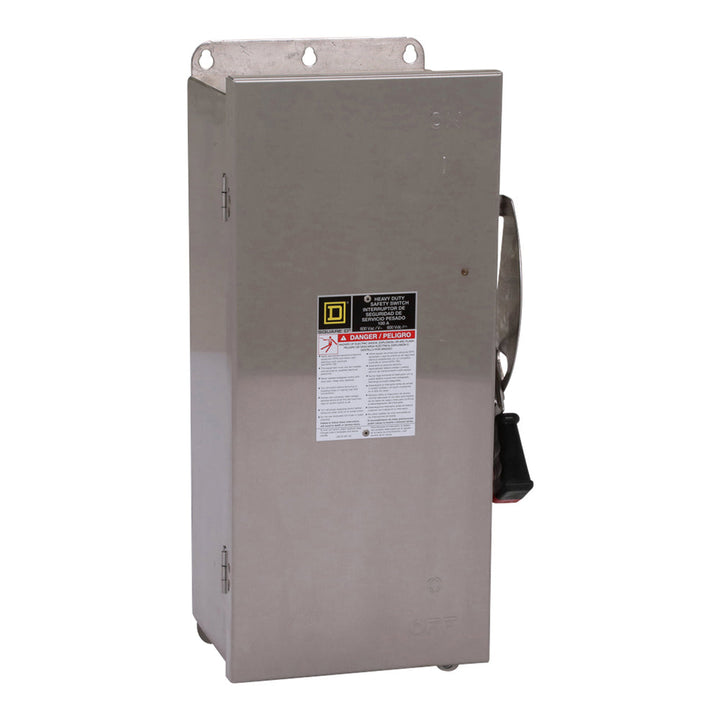

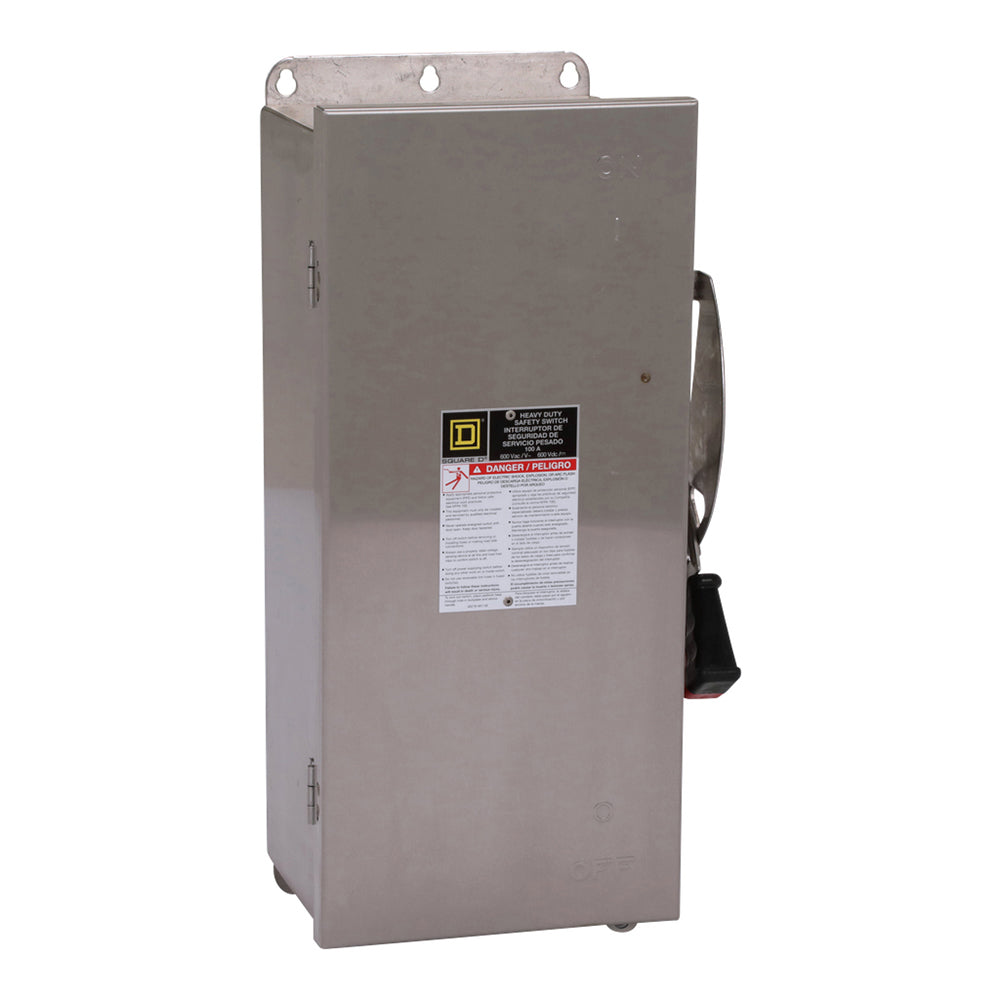

Square D HU363DSEI - 3-Pole Disconnect Switch (600V AC, 100A)

Square D
Price
Save $-3,239.01
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Square D HU363DSEI is a heavy-duty safety disconnect switch designed to provide reliable isolation and protection for three-phase industrial power circuits. It is rated for 600V AC and 100A, housed in a robust enclosure measuring 528.83 mm H x 285.75 mm W x 177.04 mm D with a weight of 22 lb. This UL-listed switch is constructed for compatibility with NSX frames and accepts a wide range of conductor sizes from AWG 14 to 1/0 copper. It is engineered for use in industrial control panels and motor control centers where safe maintenance and circuit isolation are required.

Key Features & Specifications
  • Type: HU Series E, 3-pole, single configuration safety disconnect switch
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 20.82 in (528.83 mm) H x 11.25 in (285.75 mm) W x 6.97 in (177.04 mm) D
  • Weight: 22 lb
  • Standards: UL listed
  • Applications: Industrial control panels, motor control centers (MCCs), main circuit isolation
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • Wire Size: AWG 12 to 1/0 Aluminum, AWG 14 to 1/0 Copper
  • Compatible Frames: NSX
  • Country of Origin: United States


Product Identification
  • UPC: 078590107801
  • GTIN: 00785901078012
