Square D HU363AWC - Non-Fusible Disconnect Switch 100A 600V 3P

Square D
Price
Save $5,444
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

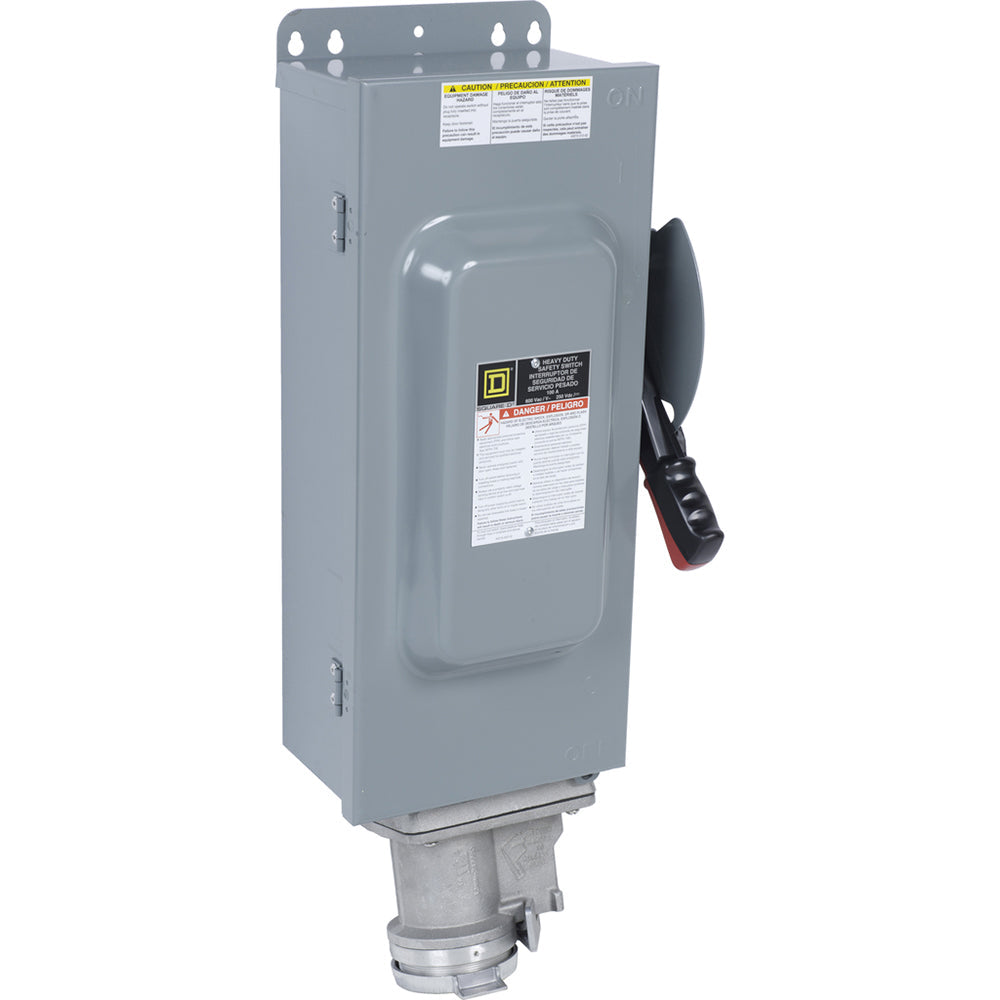

Square D HU363AWC is a heavy-duty industrial disconnect switch designed for safely isolating three-phase electrical circuits. It is rated for 600V AC and 100A, featuring a robust non-fusible design with three poles in a single configuration. The unit is constructed with a NEMA 12 enclosure measuring 20.5 in (520.7 mm) H x 10.5 in (266.7 mm) W x 7 in (177.8 mm) D and weighs 30.001 lb, providing protection against dust and dripping liquids. It is UL listed and offers a high interrupting capacity of 200kA at 600V, ensuring compliance with industrial safety standards for use in motor control centers, industrial machinery, and power distribution panels.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, Industrial Grade
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 20.5 in H x 10.5 in W x 7 in D (520.7 mm x 266.7 mm x 177.8 mm)
  • Standards: UL Listed
  • Applications: Motor Control Centers, Industrial Machinery, Power Distribution
  • Switch Type: Disconnect
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Switch Style: Non-Fusible
  • NEMA Rating: NEMA 12
  • Phase: 3
  • Wire: 3
  • Weight: 30.001 lb
  • Country of Origin: United States


Product Identification
  • UPC: 785901077985
  • GTIN: 00785901077985
