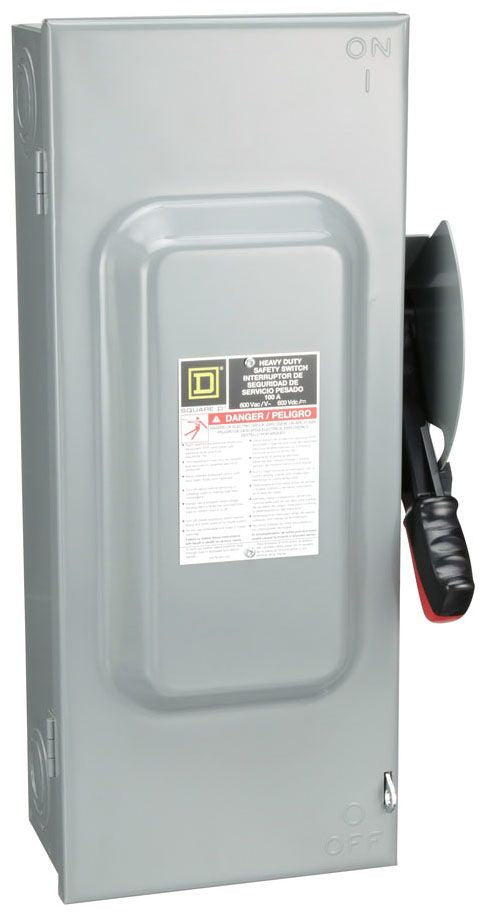

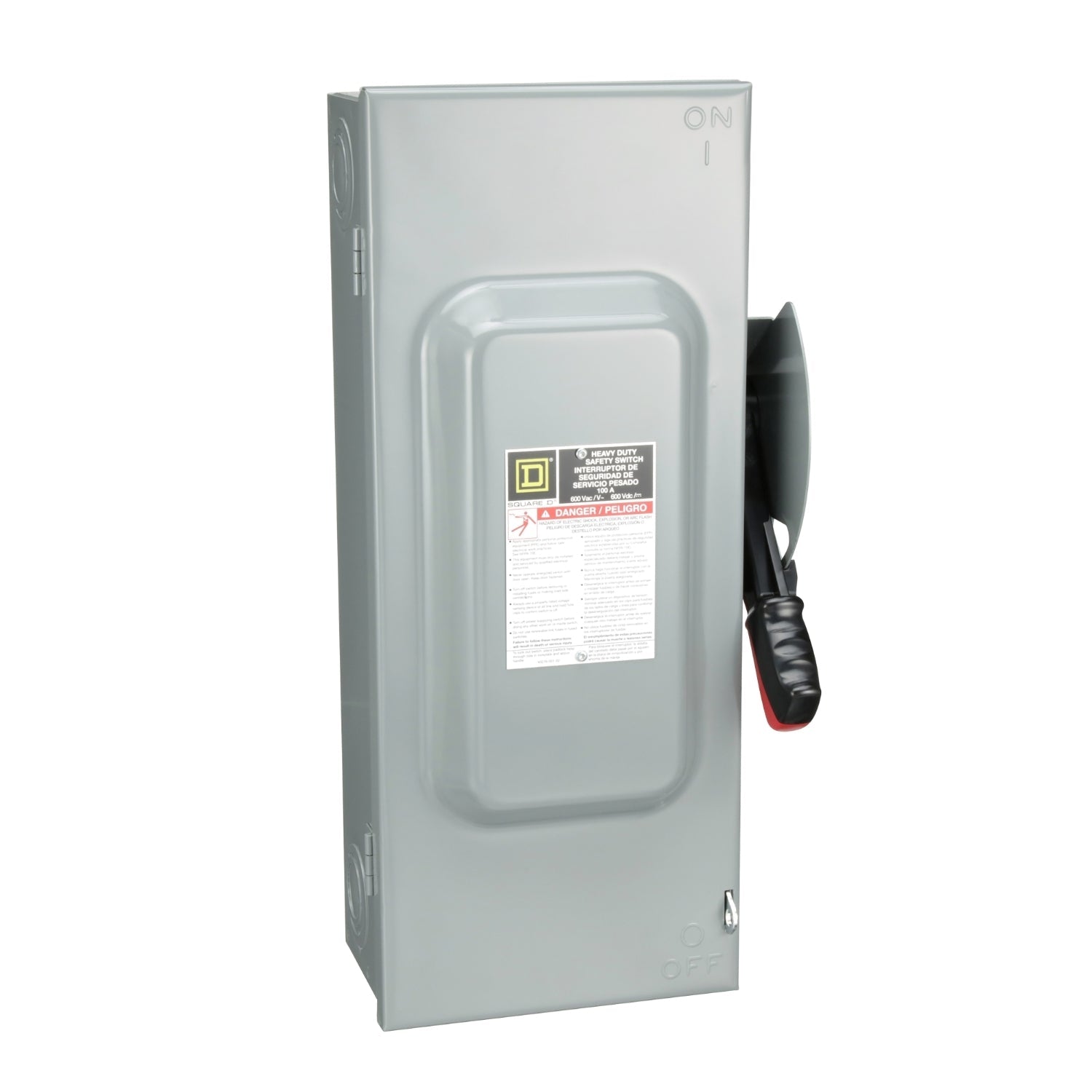

The Square D HU363 is a heavy-duty, non-fusible safety disconnect switch designed for the safe isolation of three-phase electrical circuits in industrial environments. It provides a visible break for maintenance with a 600V AC voltage rating and a 100A continuous current rating, housed in a robust NEMA 1 enclosure measuring 539.75 mm H x 260.35 mm W x 162.05 mm D and weighing 16.6 lb. This UL-listed switch is engineered for high fault protection, featuring an interrupting rating of 200kA at 600V, and accepts copper wire sizes from #14 to #1/0 AWG or aluminum from #12 to #1/0 AWG. It is typically applied in motor control centers, industrial machinery, and power distribution panels where reliable circuit isolation is required.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, Series E, HU Frame
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Configuration: Single Unit
  • Poles: 3
  • Phase: 3-Phase
  • AIC Rating: 200kA @ 600V
  • Wire Size: #12 to #1/0 AWG (Aluminum) or #14 to #1/0 AWG (Copper)
  • Dimensions: 21.25 in H x 10.25 in W x 6.38 in D (539.75 mm x 260.35 mm x 162.05 mm)
  • Weight: 16.6 lb
  • NEMA Rating: NEMA 1
  • Switch Style: Non-Fusible
  • Certification: UL Listed


Product Identification
  • UPC: 785901505846
  • GTIN: 00783164011319
