Square D HU362RB - Non-Fusible Disconnect 60A 600V 3P (NEMA 3R)
Square D HU362RB Disconnect Switch (Non-Fusible) - Essential Electric Supply
HU362RB Square D Series E Disconnect 600V 60A Non-Fusible Switch - Essential Electric Supply
Square D HU362RB - Non-Fusible Disconnect 60A 600V 3P (NEMA 3R)

Square D HU362RB - Non-Fusible Disconnect 60A 600V 3P (NEMA 3R)

Square D
Price
Save $506.60
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

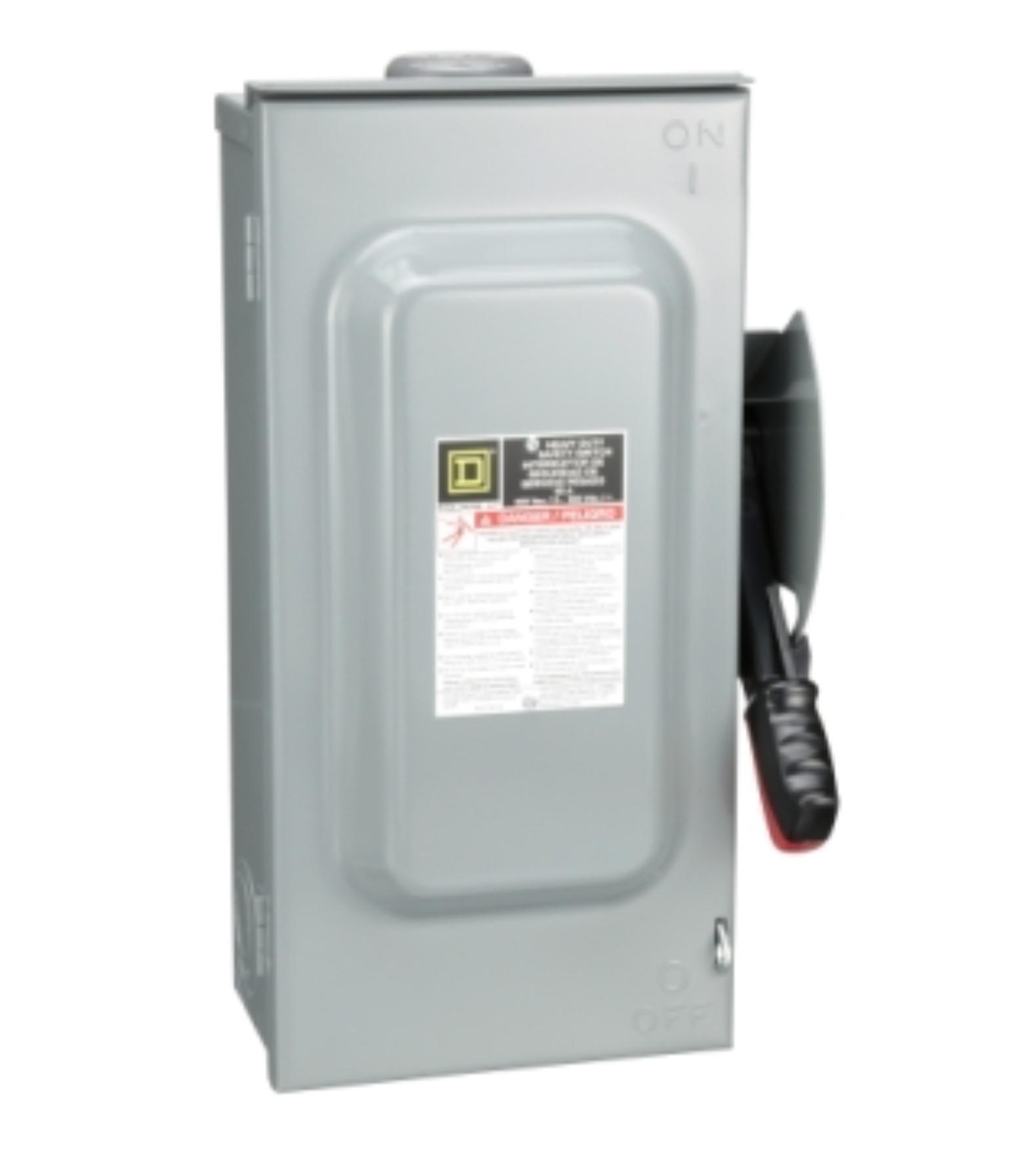

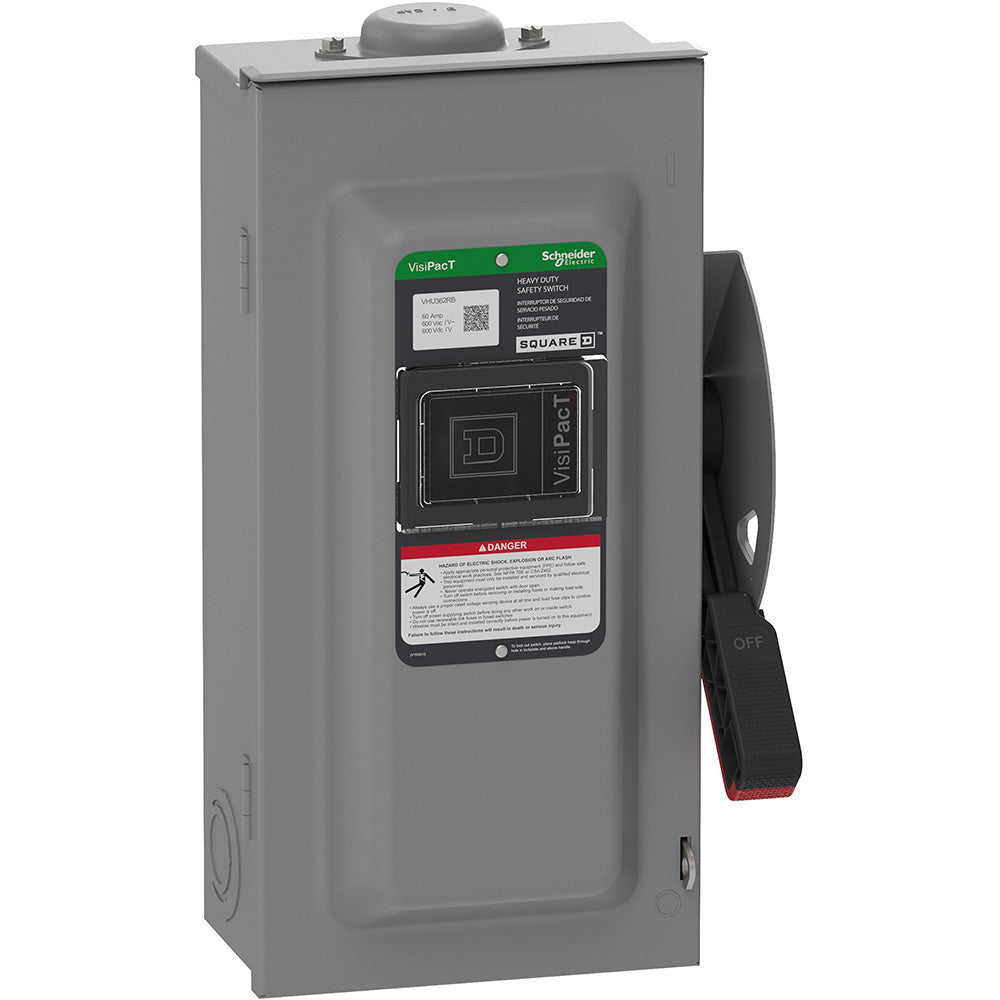

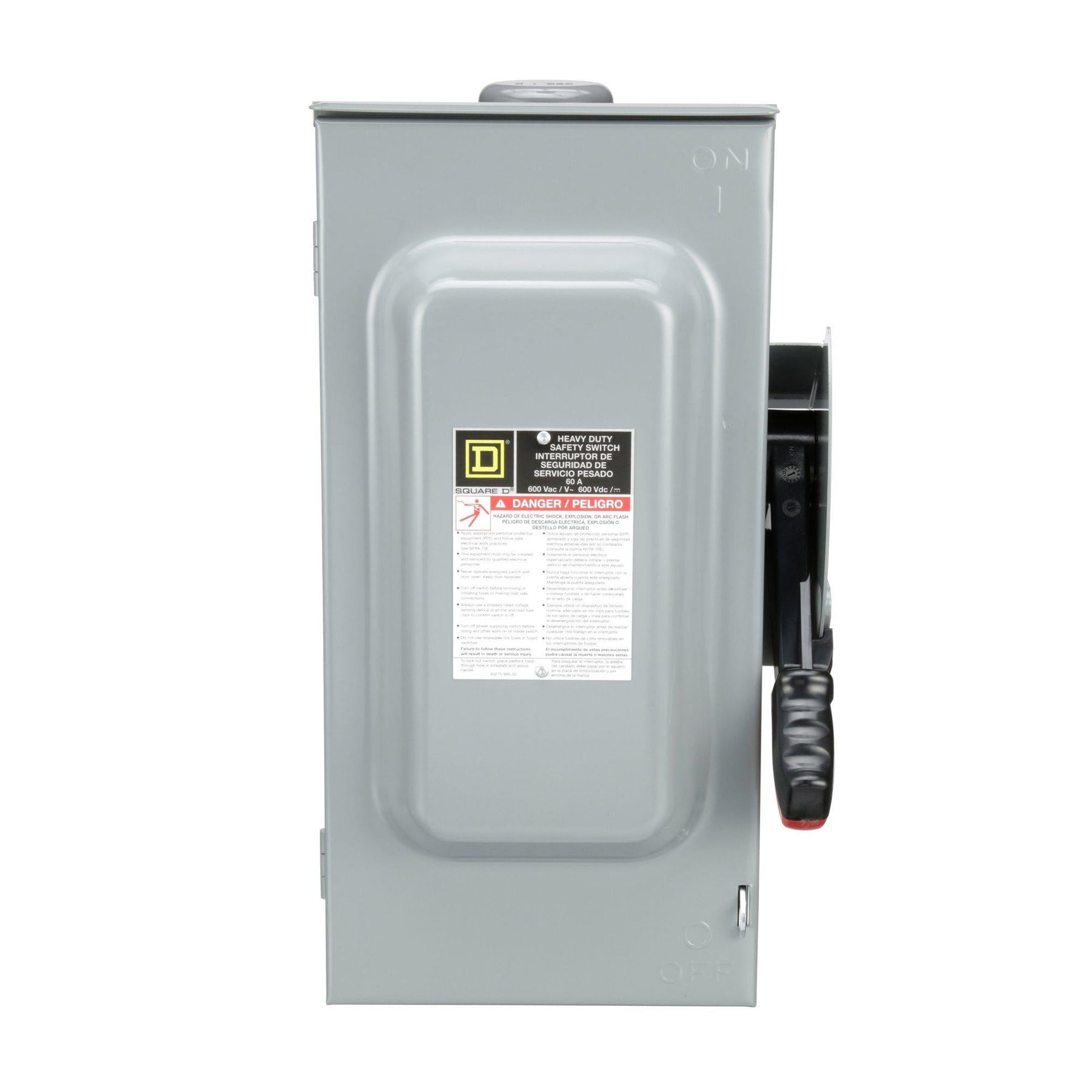

The Square D HU362RB is a heavy-duty, non-fusible safety disconnect switch designed for the safe isolation of three-phase electrical circuits in industrial and commercial applications. It is rated for 600V AC systems with a 60A current capacity and features a robust three-pole, single-configuration design capable of interrupting up to 200kA at 600V. The switch is housed in a durable NEMA 3R enclosure measuring 21.25 in (539.75 mm) H x 10.5 in (266.7 mm) W x 6.38 in (162.05 mm) D and weighing 15.201 lb, ensuring reliable outdoor performance and protection against falling rain and sleet. As part of the Schneider Electric Series E family, it is engineered to meet rigorous industry standards for safety and operational reliability in demanding environments such as manufacturing facilities, data centers, and power distribution panels.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, Series E, HU Type
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 21.25 in H x 10.5 in W x 6.38 in D (539.75 mm x 266.7 mm x 162.05 mm)
  • Weight: 15.201 lb
  • Standards: NEMA 3R Enclosure Rating
  • Applications: Industrial safety isolation, motor control centers, main service disconnects
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Phase: 3
  • NEMA Rating: 3R


Product Identification
  • UPC: 785901505617
  • GTIN: 00783164008838
