Square D HU362DX - 60A Non-Fusible Safety Switch (600V, 3-Pole)
Square D HU362DX - 60A Non-Fusible Safety Switch (600V, 3-Pole)
Square D HU362DX - 60A Non-Fusible Safety Switch (600V, 3-Pole)
Square D HU362DX - 60A Non-Fusible Safety Switch (600V, 3-Pole)
Square D HU362DX - 60A Non-Fusible Safety Switch (600V, 3-Pole)
Square D HU362DX - 60A Non-Fusible Safety Switch (600V, 3-Pole)
Square D HU362DX - 60A Non-Fusible Safety Switch (600V, 3-Pole)
Square D HU362DX - 60A Non-Fusible Safety Switch (600V, 3-Pole)

Square D HU362DX - 60A Non-Fusible Safety Switch (600V, 3-Pole)

Square D
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

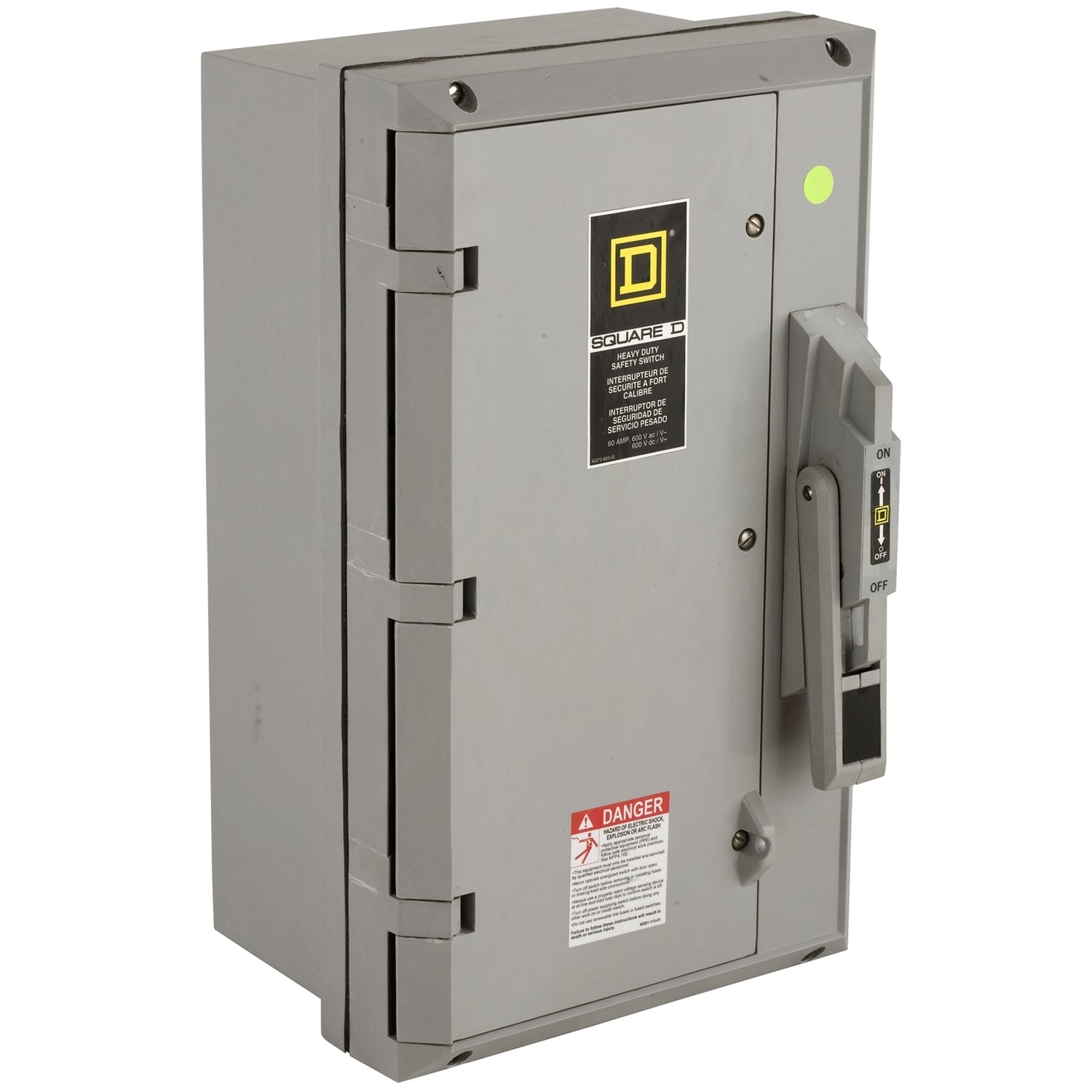

Square D HU362DX is a heavy-duty industrial safety switch designed for isolating three-phase electrical circuits up to 60A. It provides a visible disconnect means for circuits rated at 600V AC with a high 200kA interrupting capacity, housed in a robust NEMA 4X enclosure measuring 492.8 mm H x 289.6 mm W x 218.4 mm D and weighing 28.31 lb for harsh environment durability. This non-fusible disconnect switch complies with industry standards and is constructed for reliable operation, accepting copper wire from AWG 14 to 3 or aluminum from AWG 12 to 3. Its typical applications include providing a local safety disconnect for motor control centers, industrial machinery, and power distribution equipment.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, HU Type, Series E Family
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 19.4 in H (492.8 mm) x 11.4 in W (289.6 mm) x 8.6 in D (218.4 mm)
  • Standards: NEMA 4X Enclosure Rating
  • Applications: Motor Control Centers, Industrial Machinery, Power Distribution
  • Switch Type: Disconnect
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: AWG 14 to AWG 3 (Copper), AWG 12 to AWG 3 (Aluminum)
  • Weight: 28.31 lb


Product Identification
  • UPC: 78590154912
  • GTIN: 00785901549123
