Square D HU362AWKVW - Non-Fusible Disconnect 60A 600V 3P

Square D
Price
Save $-1,036.16
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

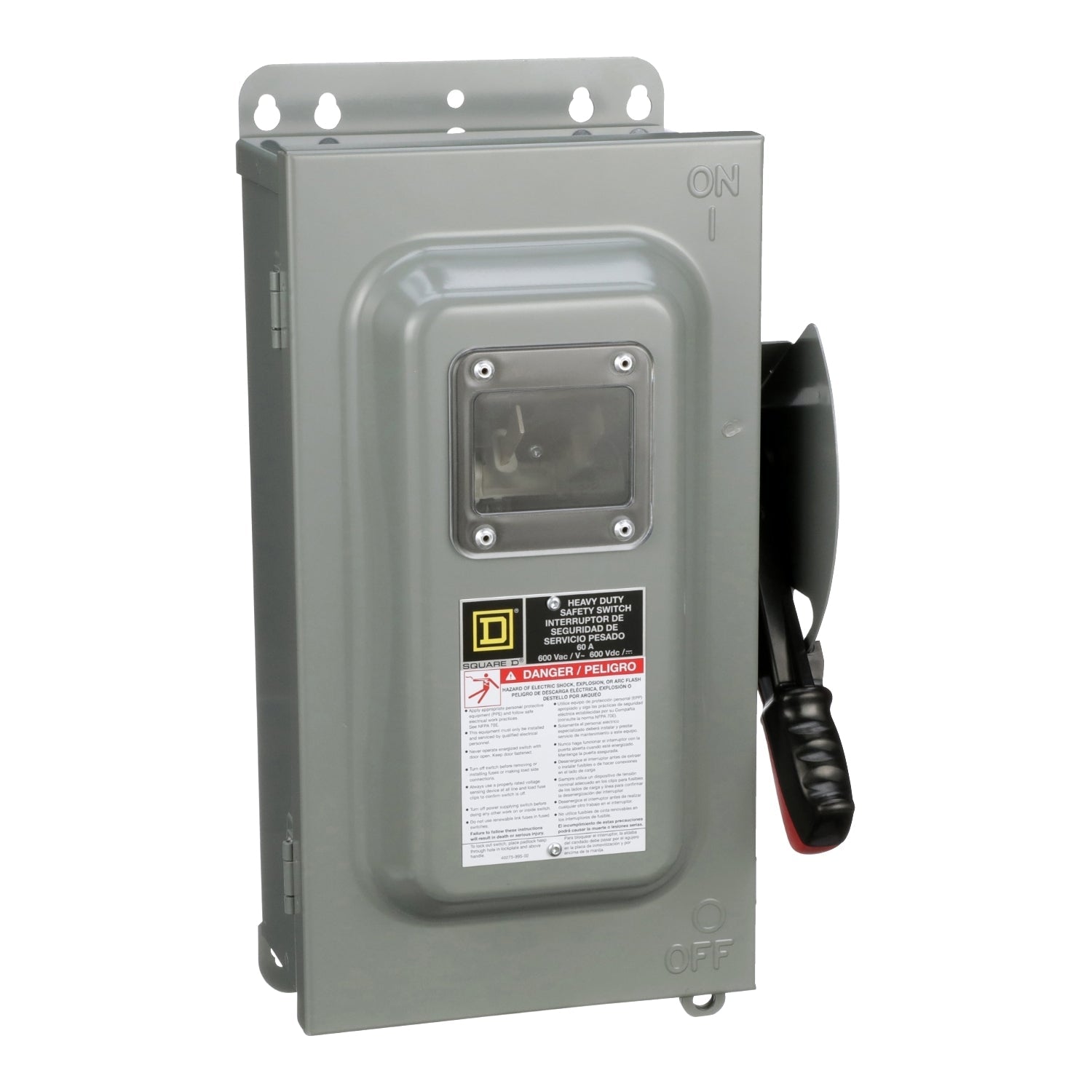

Square D HU362AWKVW is a non-fusible safety disconnect switch designed for isolating three-phase industrial power circuits. It provides a 600V AC voltage rating and a 60A current rating for reliable circuit interruption. The switch is constructed with a rugged enclosure measuring 419.1 mm H x 266.7 mm W x 177.8 mm D and weighing 17.45 lb, built to NEMA 3R/12 standards for indoor/outdoor use in harsh environments. It complies with industry standards for safety disconnects, featuring a 200kA interrupting rating at 600V. Typical applications include motor control centers, industrial machinery, and HVAC systems where a visible disconnect is required.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, Series E, HU Type, Single Configuration
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 16.5 in (419.1 mm) H x 10.5 in (266.7 mm) W x 7 in (177.8 mm) D
  • Standards: NEMA 3R/12
  • Applications: Motor Control Centers, Industrial Machinery, HVAC Systems
  • Switch Type: Disconnect
  • Configuration: Single
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Phase: 3
  • Amperage: 60A
  • AIC Rating: 200kA @ 600V
  • Poles: 3
  • Wire Size: AWG 14 to AWG 3, AWG 12 to AWG 3, Copper/Aluminum
  • NEMA Rating: 3R/12
  • Weight: 17.45 lb


Product Identification
  • UPC: 078590120887
  • GTIN: 00785901208877
