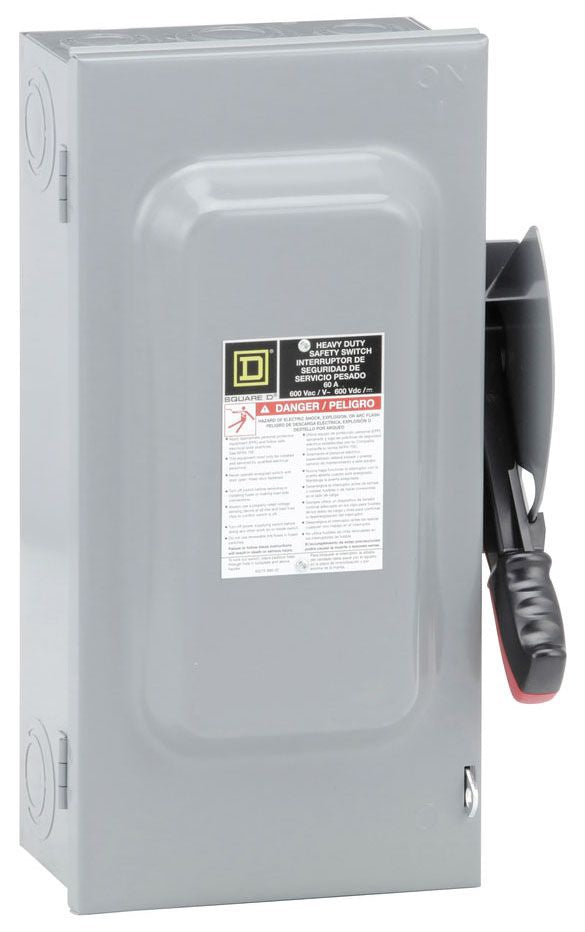

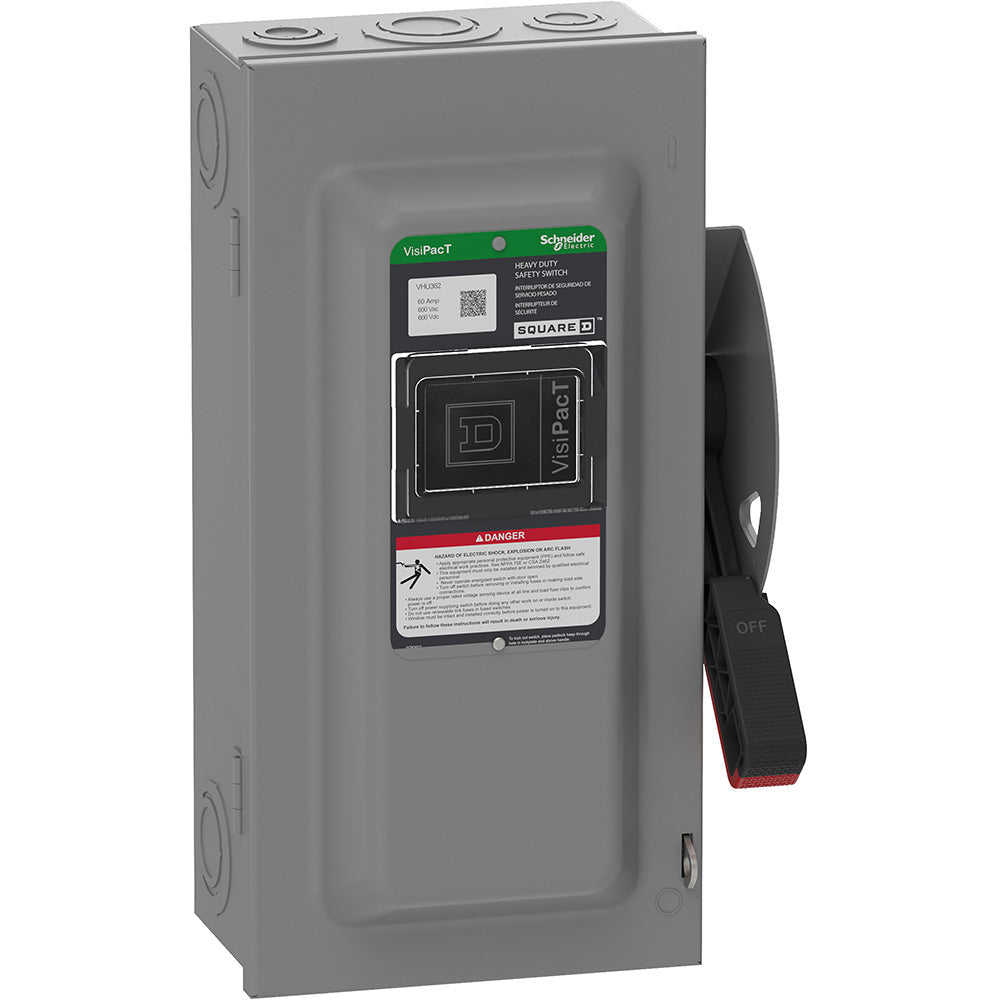

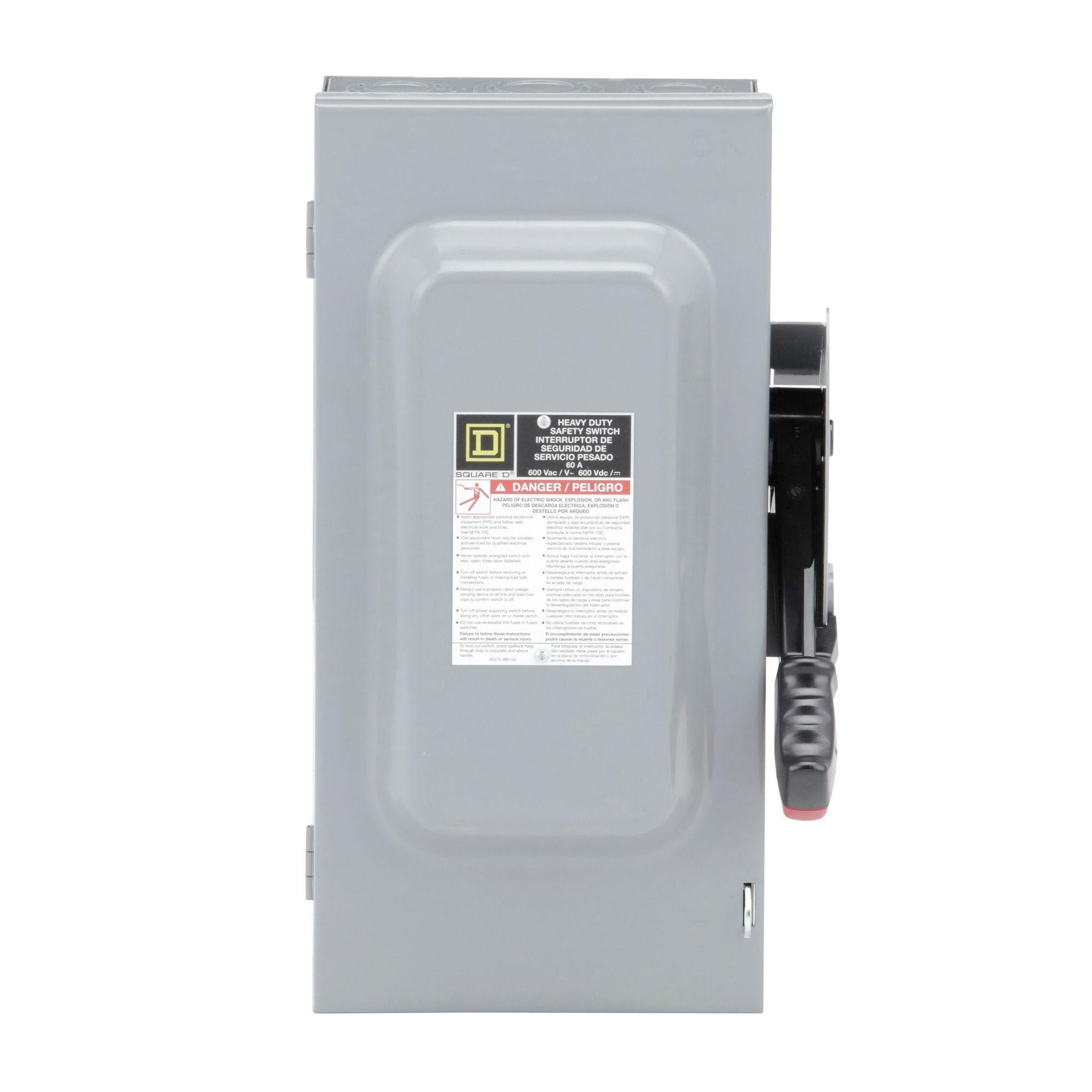

Square D HU362 is a heavy-duty safety switch designed for providing a visible disconnect and isolation point for electrical circuits in industrial and commercial applications. It features a 600V AC voltage rating and a 60A current rating for robust circuit protection. The unit is constructed with a NEMA 1 enclosure measuring 539.75 mm H x 266.7 mm W x 162.05 mm D and weighing 14.8 lb, built for durability. It is UL Listed and offers a high 200kA interrupting capacity at 600V for enhanced safety. This non-fusible disconnect is typically used to de-energize three-phase equipment for maintenance and service.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, Series E, HU Type
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 21.25 in (539.75 mm) H x 10.5 in (266.7 mm) W x 6.38 in (162.05 mm) D
  • Standards: UL Listed
  • Applications: Industrial and commercial circuit isolation and maintenance
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC rating: 200kA@600V
  • Wire Size: AWG 12 to AWG 3 (Aluminum), AWG 14 to AWG 3 (Copper)
  • Nema Rating: 1
  • Weight: 14.8 lb


Product Identification
  • UPC: 785901505808
  • GTIN: 00783164008524
