Square D HU361VW - 3-Pole Safety Switch, 30A 600V 200kA AIC
Square D HU361VW - 3-Pole Safety Switch, 30A 600V 200kA AIC
Square D HU361VW - 3-Pole Safety Switch, 30A 600V 200kA AIC
Square D HU361VW - 3-Pole Safety Switch, 30A 600V 200kA AIC
Square D HU361VW - 3-Pole Safety Switch, 30A 600V 200kA AIC
Square D HU361VW - 3-Pole Safety Switch, 30A 600V 200kA AIC

Square D HU361VW - 3-Pole Safety Switch, 30A 600V 200kA AIC

Square D
Price
Save $-230.24
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

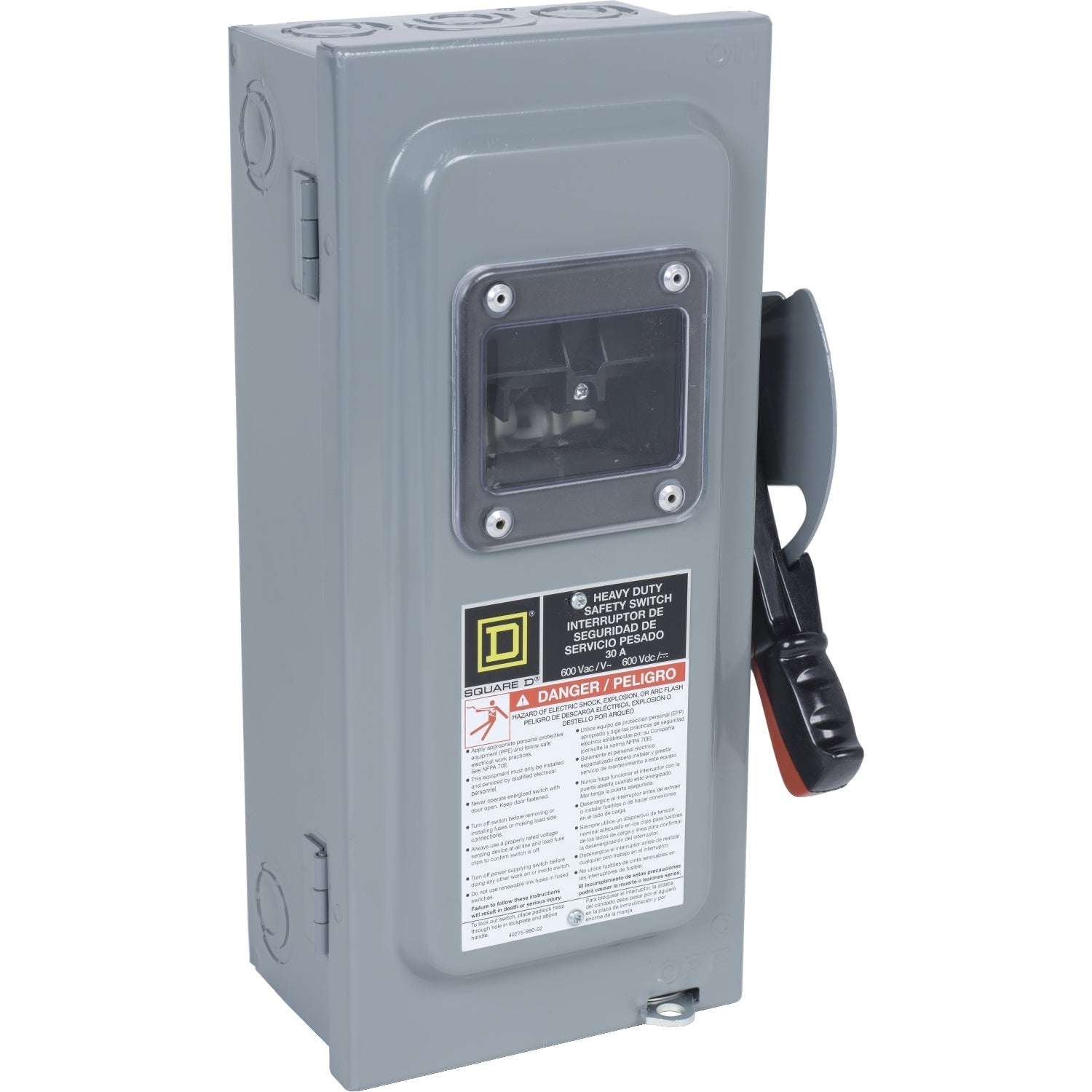

Square D HU361VW is a heavy-duty safety switch designed for providing a visible disconnect and protection for three-phase industrial circuits. It is rated for 600V AC and 30A, featuring a robust construction with dimensions of 370.8 mm H x 191.77 mm W x 123.95 mm D and a weight of 8.999 lb. The switch is engineered for high-fault protection with an interrupting rating of 200kA at 600V and accepts copper wire from AWG 14 to 6 or aluminum from AWG 12 to 6, making it suitable for demanding applications in manufacturing, data centers, and industrial power distribution where reliable isolation is critical.

Key Features & Specifications
  • Type: Series E, HU Type, 3-Pole Safety Disconnect Switch
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 370.8 mm H x 191.77 mm W x 123.95 mm D (14.6 in x 7.55 in x 4.88 in)
  • Weight: 8.999 lb
  • Standards: Designed for industrial safety compliance
  • Applications: Industrial power distribution, motor control centers, manufacturing equipment
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: AWG 14 to 6 Copper, AWG 12 to 6 Aluminum
  • Poles: 3


Product Identification
  • Manufacturer: Schneider Electric
  • Family: Series E
  • Model: HU361VW
