Square D HU361SSVW - Non-Fusible Disconnect Switch 600V 30A (200kA AIC @600V)
Square D HU361SSVW - Non-Fusible Disconnect Switch 600V 30A (200kA AIC @600V)
Square D HU361SSVW - Non-Fusible Disconnect Switch 600V 30A (200kA AIC @600V)
Square D HU361SSVW - Non-Fusible Disconnect Switch 600V 30A (200kA AIC @600V)

Square D HU361SSVW - Non-Fusible Disconnect Switch 600V 30A (200kA AIC @600V)

Square D
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

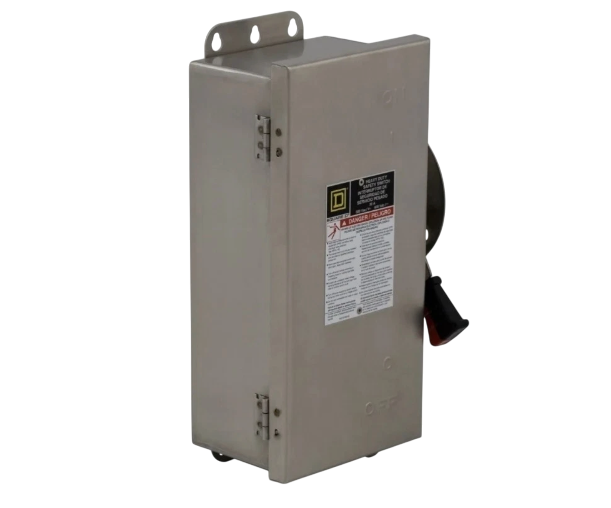

Square D HU361SSVW is a heavy-duty industrial disconnect switch designed for safe power isolation in three-phase electrical systems. This Series F, Type H switch features a 600V AC voltage rating and 30A current capacity with a 200kA interrupting rating at 600V for robust circuit protection. The 25 lb non-fusible switch has a rugged NEMA 3/3R/4/4X/5/12-rated enclosure and three-pole single configuration for industrial environments. It complies with UL and CSA standards for safety-critical applications. Typical uses include motor control centers, HVAC systems, and industrial machinery requiring reliable power disconnection.

Key Features & Specifications
  • Type: Non-fusible disconnect switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 200kA@600V
  • Phase: 3
  • NEMA Rating: 3/3R/4/4X/5/12
  • Weight: 25 lb
  • Standards: UL/CSA compliant
  • Applications: Motor control centers, industrial machinery, HVAC systems
