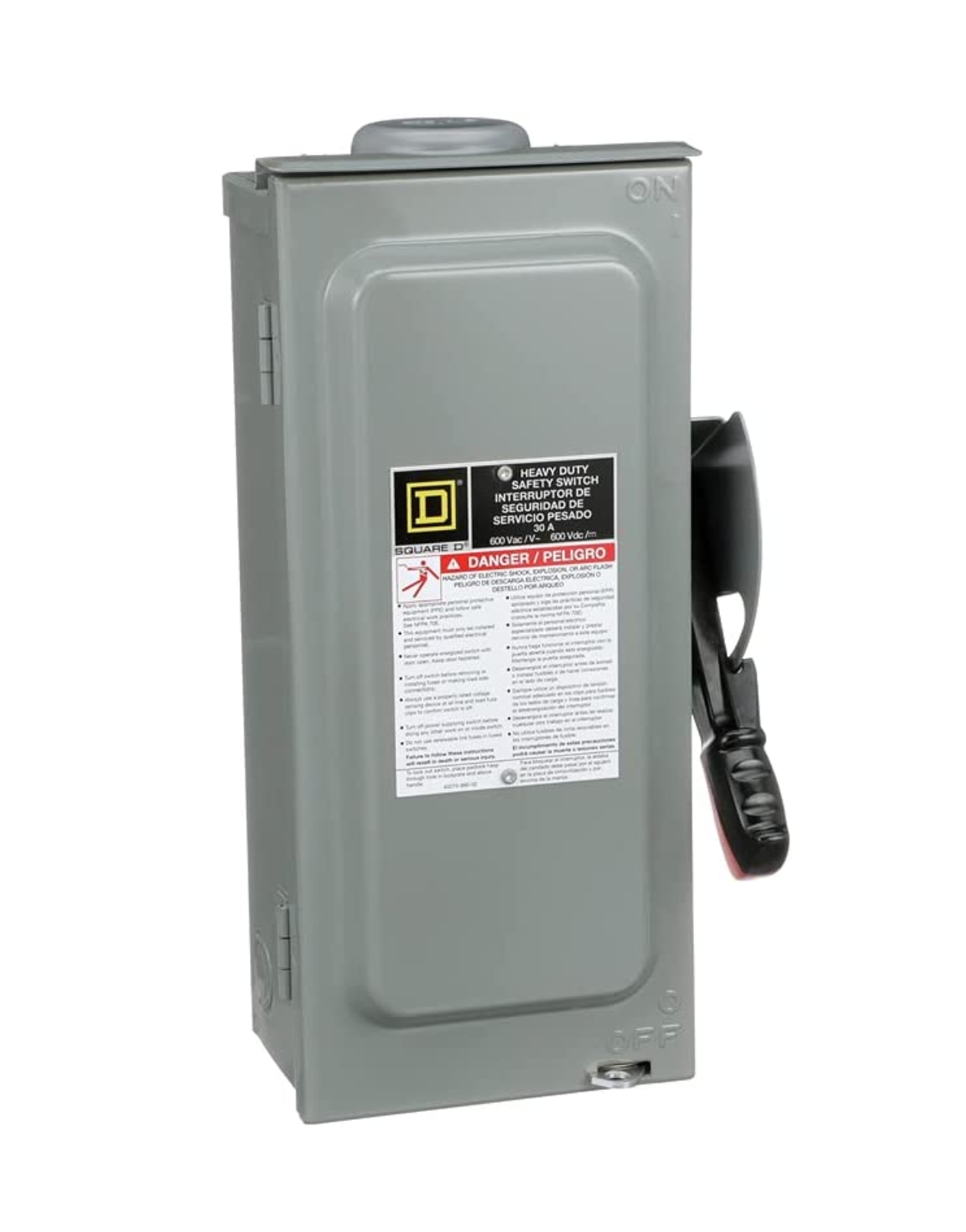

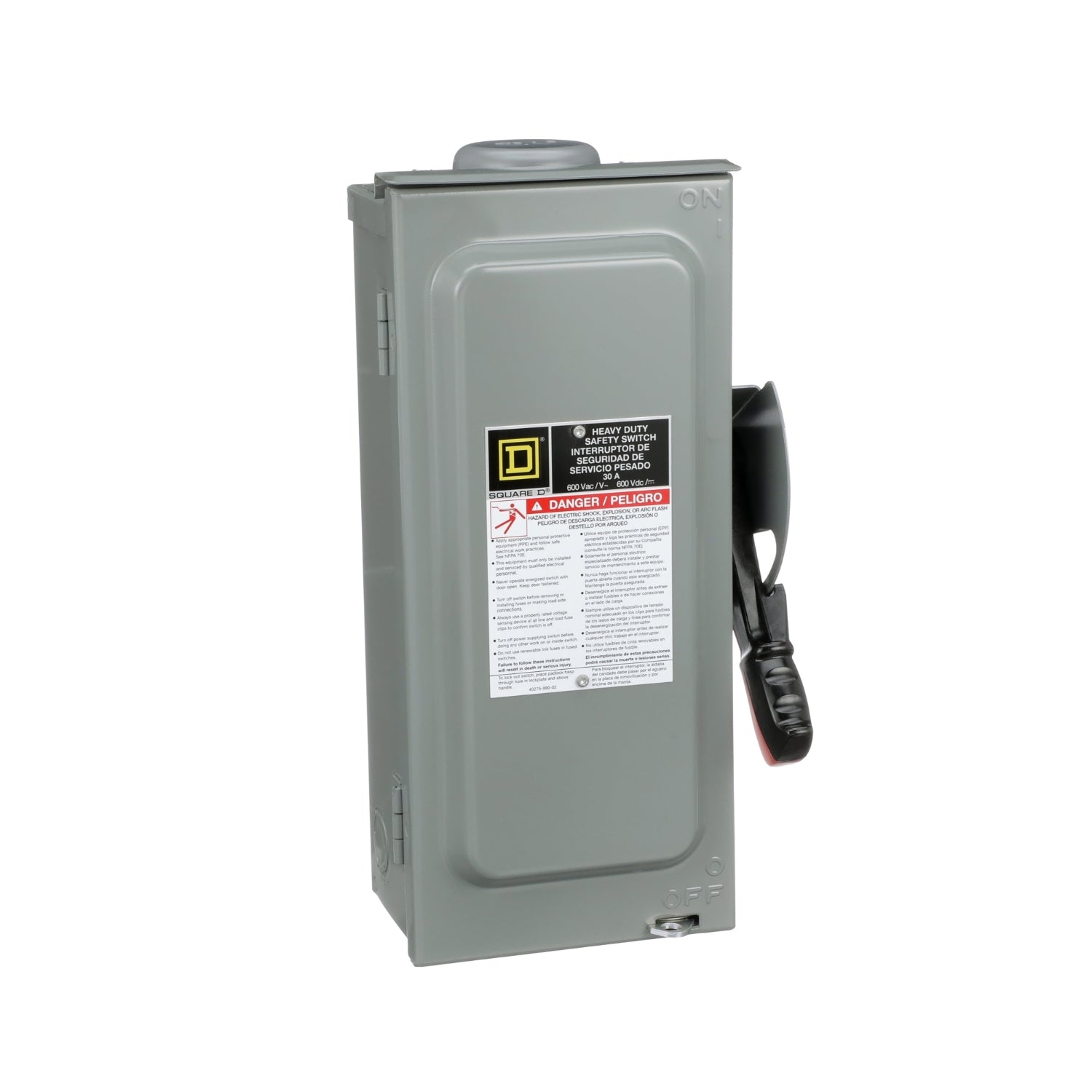

Square D HU361RB - Non-Fusible Disconnect 30A 600V 3P

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Square D HU361RB is a non-fusible safety disconnect switch designed for isolating three-phase electrical circuits in industrial and commercial applications. It provides a visible break for maintenance safety, rated for 600V AC systems with a 30A current rating and a 200kA interrupting capacity at 600V. The switch features a robust, single-configuration design with three poles, constructed for durability with a NEMA 3R enclosure rating for outdoor use and compatibility with NSX breaker frames. It is UL Listed and accepts copper wire sizes from #14 to #6 AWG or aluminum from #12 to #6 AWG, housed in a compact enclosure measuring 377.95 mm H x 191.77 mm W x 123.44 mm D and weighing 8.159 lb.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, Series E, HU Type
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: #12 to #6 AWG (Aluminum) or #14 to #6 AWG (Copper)
  • NEMA Rating: 3R
  • Certification: UL Listed
  • Compatible Frames: NSX
  • Dimensions: 14.88 in (377.95 mm) H x 7.55 in (191.77 mm) W x 4.86 in (123.44 mm) D
  • Weight: 8.159 lb
  • Switch Style: Non-Fusible


Product Identification
  • UPC: 785901505600
  • GTIN: 00783164253597
