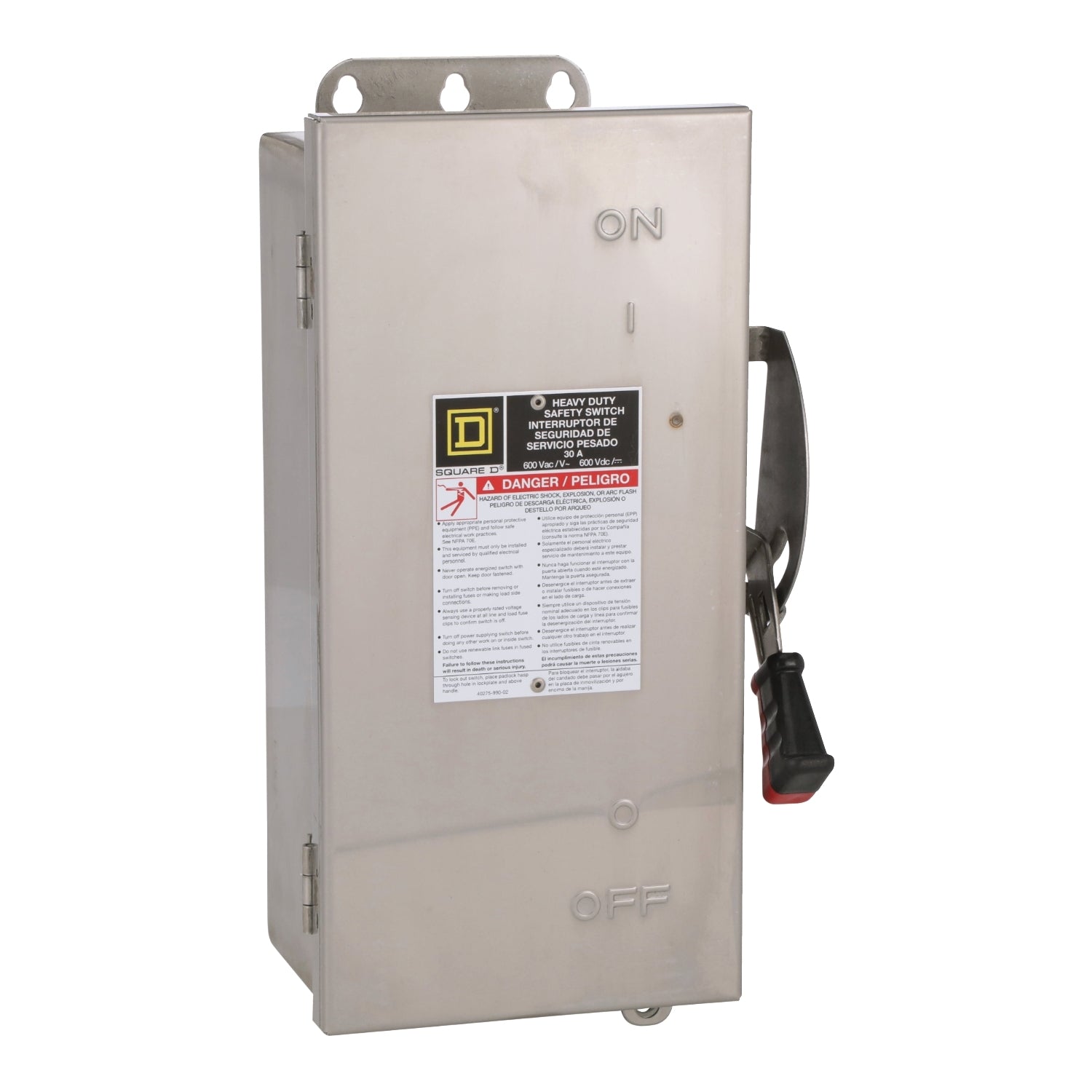

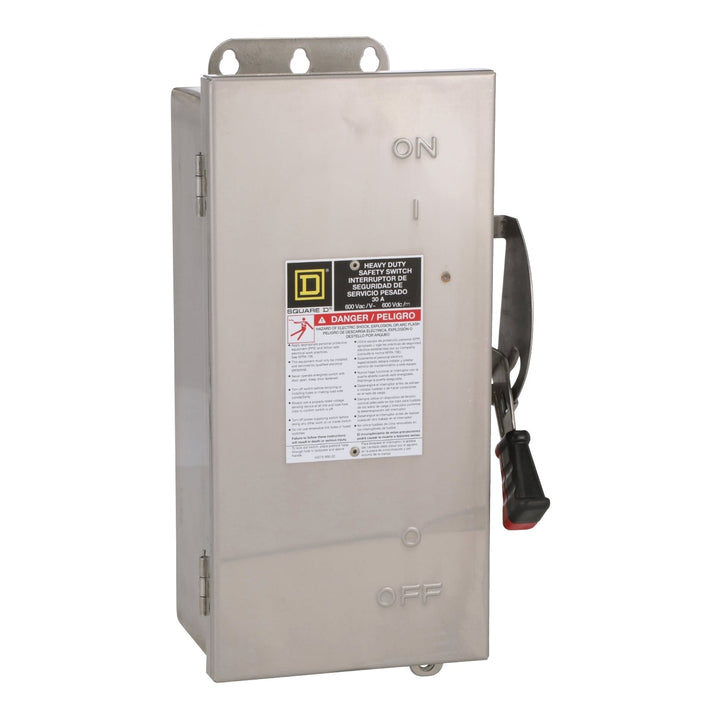

Square D HU361NSS - Fusible Safety Switch 200A 600V (200kA AIC 3-Pole)

Square D
Price
Save $885.27
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HU361NSS is a fusible safety switch designed for industrial power distribution systems requiring high fault current protection. This 600V AC-rated disconnect features a 200A current capacity with a 200kA interrupting rating at 600V, housed in a rugged NEMA 3/3R/4/4X/5/12-rated enclosure weighing 25 lb. The Series F switch employs Class R fuses in a 3-pole single configuration, meeting stringent industrial safety standards for three-phase applications. Its robust construction makes it suitable for heavy-duty motor control, HVAC systems, and industrial machinery protection where reliable circuit isolation is critical.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 200kA@600V
  • Fuse Class: R
  • NEMA Rating: 3/3R/4/4X/5/12
  • Phase: 3
  • Weight: 25 lb
  • Standards: UL/CSA compliant
  • Applications: Industrial power distribution, motor control centers, HVAC systems
